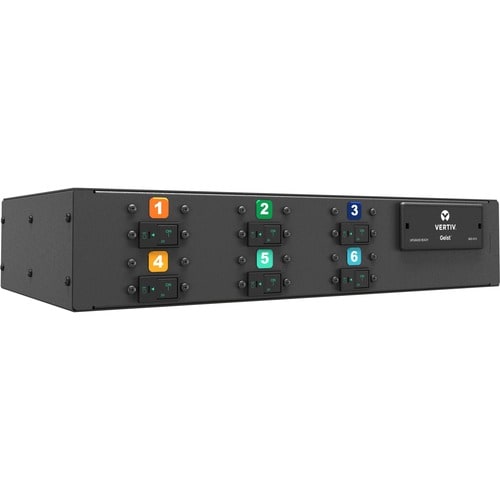

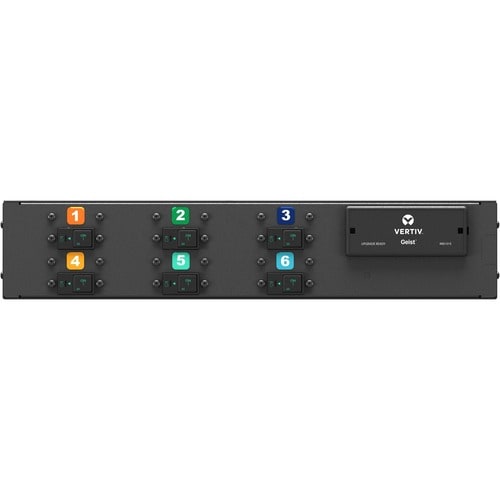

About the product
Basic Upgradeable rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet.
Benefits
- With the Geist Upgradeable hot-swap technology, users may easily transform basic rPDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
Technical Specifications
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Power Description | |
| Input Voltage | 415 V AC |
| 230 V AC | |
| Output Voltage | 240 V AC |
| 415 V AC | |
| Input Current | 32 A |
| Power Rating (Watt) | 22 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | UI10022L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | DU01X2R1-18PB67-2S02A9F00-S |
| Product Name | rPDU DU01X2R1-18PB67-2S02A9F00-S 18-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Mount Type | Recess-mountable |
| Rack-mountable | |
| Cabinet-mountable | |
| Rack Height | 2U |
| Height | 3.39" (86.11 mm) |
| Width | 17" (431.80 mm) |
| Depth | 9" (228.60 mm) |
| Mounting Orientation | Horizontal |
| Technical Information | |
| Protection Type | Double Pole |
| Overcurrent Protection | |
| Plug/Connector Type | Universal Input |
| Phase | Three Phase |
| Receptacle Type | U-Lock IEC 60320 C19 |
| U-Lock IEC 60320 C13 | |
| PDU Type | Basic |

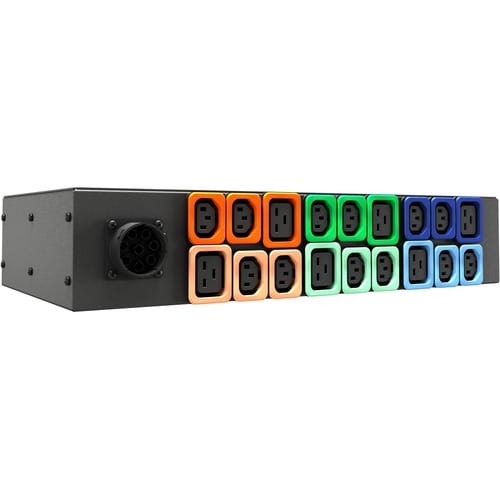

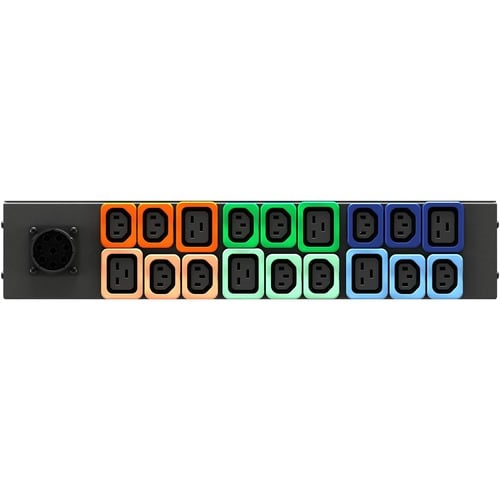

| Receptacle Detail | 12 x U-Lock IEC 60320 C13 |
| 6 x U-Lock IEC 60320 C19 | |
| Plug/Connector Detail | 1 x Universal Input |
