About the product

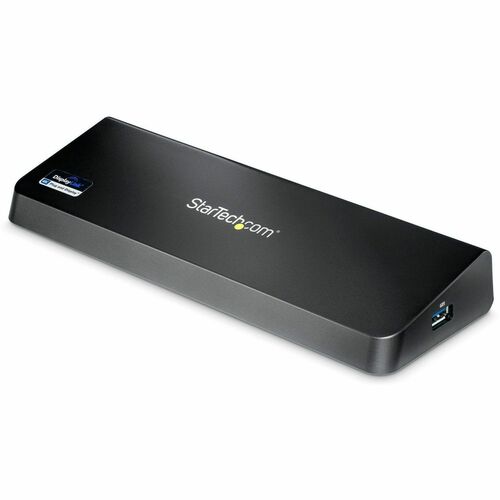

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions

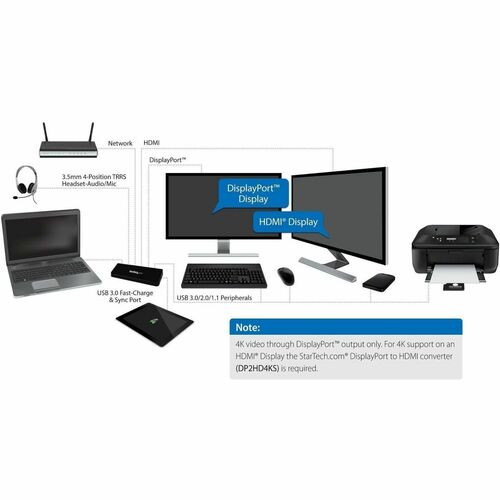

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration Max DisplayPort Resolution Max HDMI ResolutionDisplayPort (Single Display)
3840 x 2160p (4K) N/A HDMI (Single Display) N/A 2560 x 1440p DisplayPort and HDMI (Two Displays) 2048 x 1152p 2048 x 1152p*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

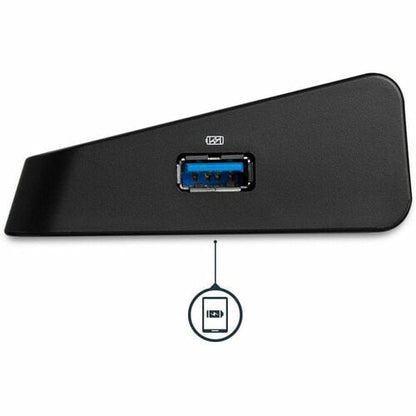

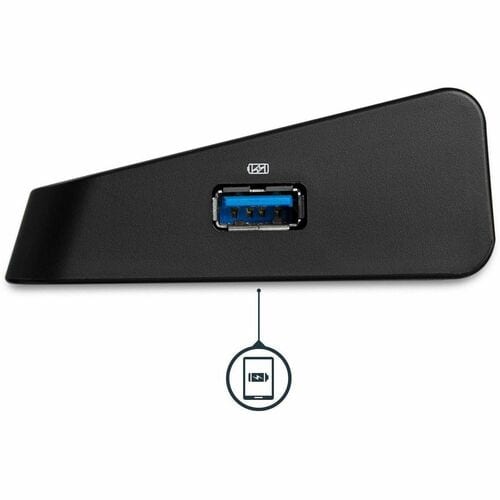

USB Fast Charge
The USB 3.0 dock's always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
More from the Manufacturer

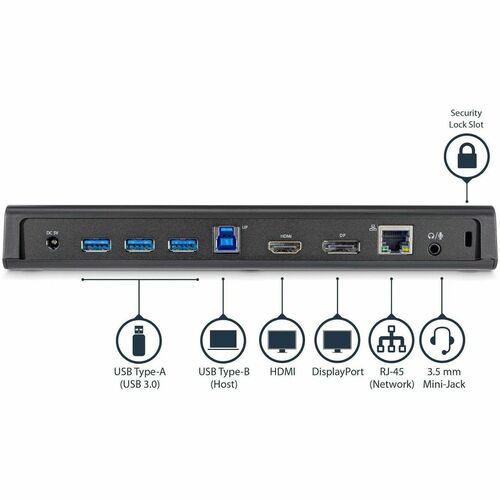

- FULL FEATURE DOCK: USB 3.0 Type-A dock with dual monitor options (HDMI & DisplayPort), 4x USB-A 5Gbps ports (one Fast Charge), Gigabit Ethernet, headset audio port, and K-slot for securing the dock
- FLEXIBLE DISPLAY SETUP: This docking station supports different display options with dual monitors DP & HDMI (2048 x 1152p and 1920 x 1080p), single DP (4K 30Hz) OR single HDMI (up to 2560 x 1440p)
- USB-A LAPTOP COMPATIBILITY: This DisplayLink certified laptop computer docking station works with new or legacy laptops from brands like HP, Dell, Lenovo, Microsoft Surface Pro, and Chromebooks
- WIDE OPERATING SYSTEM COMPATIBILITY: This universal laptop docking station fully supports major operating systems like Windows, macOS, and Chrome OS
- PLENTY OF USB PORTS: This USB 3.0 port replicator has a 4-port downstream USB-A hub (5Gbps SuperSpeed) including one always-on BC 1.2 (1.5A) fast-charge port that can charge without a connected host
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 9.80 oz (277.83 g) |

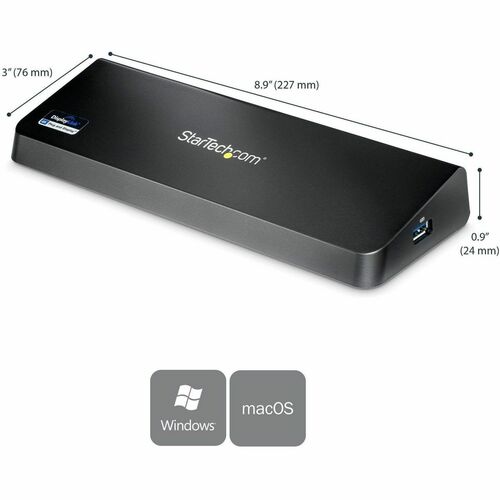

| Length | 8.90" (226.06 mm) |
| Height | 0.90" (22.86 mm) |
| Width | 3" (76.20 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | USB3DOCKHDPC |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 4K Docking Station for Laptops - DP and HDMI - USB 3.0 |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Compatibility |
Microsoft Products:
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Brand Compatibility | Apple |
| Microsoft | |
| Kensington Security Slot | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Technical Information | |
| Cable Length | 2 ft (0.61 m) |
| Device Supported | Notebook |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Synchronizing Capability | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 2560 x 1440 |
| 2048 x 1152 | |
| 3840 x 2160 | |
| Interfaces/Ports | |
| Host Interface | USB 3.0 |
| Microphone | Yes |
| HDMI | Yes |
| Headphone | Yes |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Headphone/Microphone Combo Port | Yes |
| USB Type-A | Yes |
| Software | |
| Operating System Supported | ChromeOS 55+ |
| Mac OS X 10.12 Sierra | |
| Mac OS X 10.14 Mojave | |
| Mac OS X 10.15 Catalina | |
| Mac OS X 11.0 Big Sur | |
| Mac OS X 12.0 Monterey | |
| Mac OS X 13.0 Ventura | |
| Mac OS X Server 10.8 Mountain Lion | |
| macOS 14 | |
| Windows 10 | |
| Windows 11 | |
| Windows 7 | |
| Windows 8 | |
| Windows 8.1 |
