About the product
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability

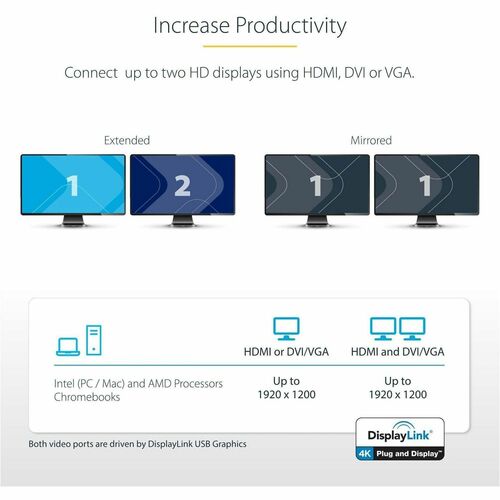

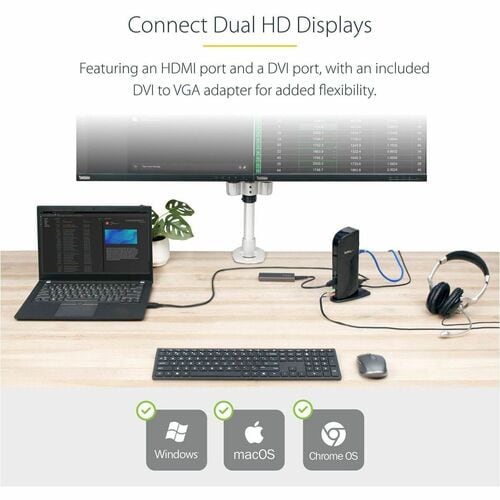

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub

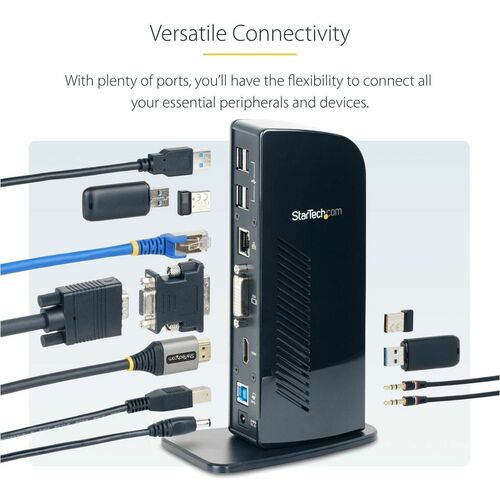

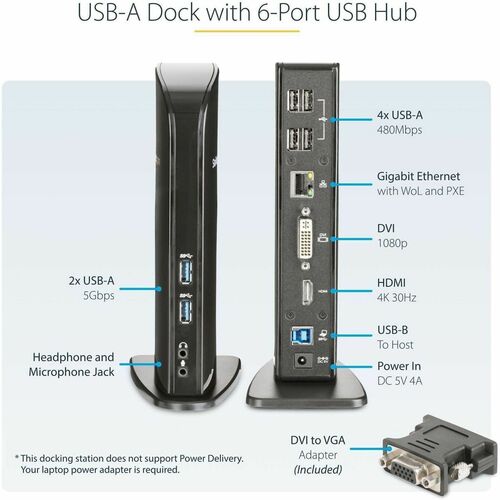

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com's laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
More from the Manufacturer
- UNIVERSAL DOCKING STATION: USB 3.0 docking station dual monitor features built-in 1x HDMI and 1x DVI monitor outputs; DVI to VGA adapter included for compatibility with VGA monitors; 1920 x 1200p maximum resolution on two displays
- INCREASED PRODUCTIVITY: This dual monitor universal docking station for laptops combines 4x USB 2.0 ports, 2x USB 3.2 Gen 1 (5Gbps) hub ports, headphone & microphone audio jack, and a Gigabit Ethernet RJ45 port into a single IT-grade dock
- UPRIGHT DESIGN: The high performance, all black, upright dock features a slim & sleek design that is the perfect addition to any home or office workstation; The dock enhances your laptop's capabilities while taking up little desk space
- UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, & Chrome OS v55+, enabling extended dual displays on Laptops, Ultrabooks, Chromebooks and MacBooks that feature a USB-A host connection; Supports HDMI, DVI and VGA monitors
- CONNECTIVITY TOOLS: Optimize the performance and security of this USB 3.0 docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source Type | Power Adapter |
| Technical Information | |
| Device Supported | Notebook |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 1920 x 1200 |
| Miscellaneous | |
| Compatibility | Compatible with Windows, macOS, & ChromeOS, enabling extended dual displays on laptops, Chromebooks and MacBooks that feature a USB-A host connection such as X1 Carbon, ThinkPad, Latitude, Precision, XPS 15, Spectre, and ZBook |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 13.10 oz (371.38 g) |
| Length | 4.90" (124.46 mm) |
| Height | 7.70" (195.58 mm) |
| Width | 2.80" (71.12 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | USB3SDOCKHD |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | HDMI and DVI Dual-Monitor Docking Station for Laptops - USB 3.0 |
| Brand Name | StarTech.com |
| Interfaces/Ports | |
| Host Interface | USB 3.0 |
| Microphone | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| DVI | Yes |
| Headphone | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| HDMI Out | Yes |
| DVI Out | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Number of USB Type-A Ports | 2 |
| USB Type-A | Yes |
| Software | |
| Operating System Supported | Windows 7 |
| Mac OS X 10.14 Mojave | |
| Mac OS X 10.12 Sierra | |
| ChromeOS 55+ | |
| Mac OS X 10.6 Snow Leopard | |
| Mac OS X 11.0 Big Sur | |
| Mac OS X 12.0 Monterey | |
| Mac OS X 13.0 Ventura | |
| macOS 14 | |
| Windows 10 | |
| Windows 11 | |
| Mac OS X 10.15 Catalina | |
| Windows 8 | |
| Windows 8.1 | |
| Windows Vista | |
| Windows XP SP3 |
