About the product
Performance
Features future-proof USB 3.1 Gen 2, USB 3.0 and USB 2.0 connectivity with support for USB Type A and Type C host systems. Uses the ASMedia 1351E chipset and firmware with UASP and BOT support for maximum performance and features. Drive sleeps automatically on OS power events or 10 minutes of idle to conserve power and reduce heat.
Form Factor

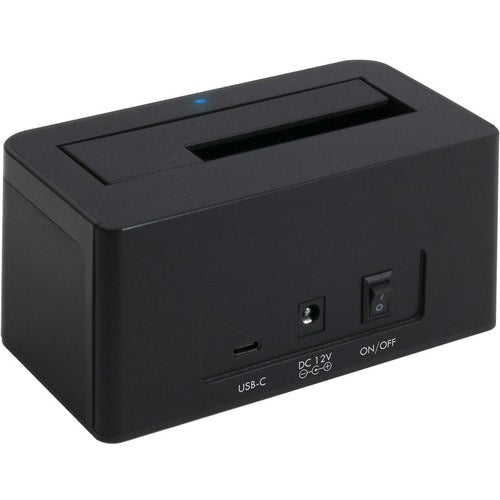

Vertical design provides maximum cooling while taking up minimal space. Robust on/off toggle switch powers off dock when not in use. Blue LED reports drive activity. 12V3A power adapter provides power for even the largest enterprise SATA drives so you can attain top performance speeds during the entire file transfer.
Compatibility
Uses standard drivers in modern operating systems, so no additional drivers required. Compatible with Windows XP through 10, macOS, and Linux / Unix. Supports 12TB+ drives on 64-bit operating systems (32-bit Windows supports drives up to 2TB max). Connects to USB-C and Thunderbolt 3 ports with the provided USB-C cable, as well as legacy USB 2.0 and USB 3.0 hosts with the provided USB 3.0 cable. Supports all 2.5" and 3.5" SATA hard drives, solid state drives, and hybrid drives up to any volume size available on the market today (currently 12TB+). IDE/EIDE/PATA, SCSI, SAS, mSATA, and M.2 drives are not compatible.

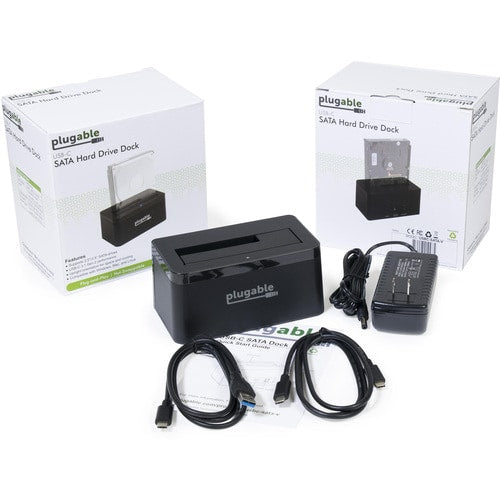

In the box
USB-C to SATA Dock, 1m/3ft USB-C to USB-C Cable, 1m/3ft USB-A to USB-C Cable, AC 12V3A Power Adapter 100-240V 50/60Hz, Quick Start Guide
Features future-proof USB 3.1 Gen 2, USB 3.0 and USB 2.0 connectivity with support for USB Type A and Type C host systems. Uses the ASMedia 1351E chipset and firmware with UASP and BOT support for maximum performance and features. Drive sleeps automatically on OS power events or 10 minutes of idle to conserve power and reduce heat.
Form Factor
Vertical design provides maximum cooling while taking up minimal space. Robust on/off toggle switch powers off dock when not in use. Blue LED reports drive activity. 12V3A power adapter provides power for even the largest enterprise SATA drives so you can attain top performance speeds during the entire file transfer.
Compatibility
Uses standard drivers in modern operating systems, so no additional drivers required. Compatible with Windows XP through 10, macOS, and Linux / Unix. Supports 12TB+ drives on 64-bit operating systems (32-bit Windows supports drives up to 2TB max). Connects to USB-C and Thunderbolt 3 ports with the provided USB-C cable, as well as legacy USB 2.0 and USB 3.0 hosts with the provided USB 3.0 cable. Supports all 2.5" and 3.5" SATA hard drives, solid state drives, and hybrid drives up to any volume size available on the market today (currently 12TB+). IDE/EIDE/PATA, SCSI, SAS, mSATA, and M.2 drives are not compatible.
In the box
USB-C to SATA Dock, 1m/3ft USB-C to USB-C Cable, 1m/3ft USB-A to USB-C Cable, AC 12V3A Power Adapter 100-240V 50/60Hz, Quick Start Guide

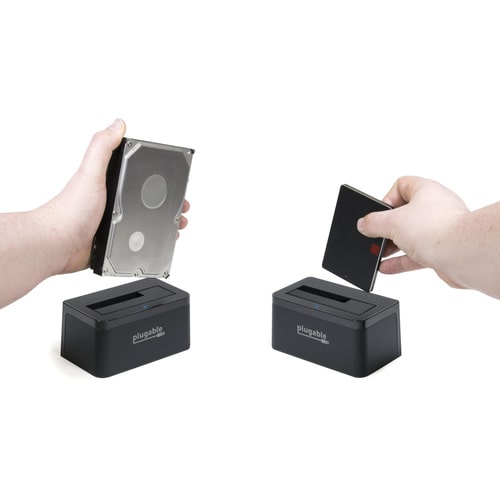

- Versatile - Connect 3.5 inch and 2.5 inch SATA hard drives and solid state drives to your USB 3.1 Gen 2 compatible computer
- Featured Packed - Supports USB Attached SCSI Protocol (UASP), Bulk-Only Transport (BOT), 512e and 4K sector sizes, and LBA48 addressing
- Fast - Supports USB-C or USB up to 10Gbps with Windows, Linux, and Intel-based macs, 5Gbps with M-Series macs. SATA III SSDs and hard drives up to 6Gbps
- Important Notes - Compatible with Windows, macOS, and Linux. Data transfer rates may be limited by USB host controller, drive speed, file system, or method of file transfer
- 2-Year Coverage, Lifetime Support - Every Plugable product, including this USB 3.1 Gen 2 SATA upright hard drive dock, is covered against defects for 2 years and comes with lifetime support. If you ever have questions, contact our North American-based team - even before purchase
Technical Specifications
| Physical Characteristics | |
| Form Factor | External |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| "Number of 2.5""/3.5"" Bays" | 1 |
| Interfaces/Ports | |
| Host Interface | USB 3.1 (Gen 2) Type C |
| Drive Interface | SATA |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | AC Adapter |
| Maximum Power Supply Wattage | 36 W |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Linux | |
| Mac | |
| Country of Origin | China |
| Technical Information | |
| Total Hard Drive Capacity Supported | 8 TB |
| Total Solid State Drive Capacity Supported | 8 TB |
| Number of Hard Drives Supported | 1 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 |
| General Information | |
| Product Type | Drive Dock |
| Manufacturer Part Number | USBC-SATA-V |
| Manufacturer Website Address | http://www.plugable.com |
| Packaged Quantity | 1 |
| Manufacturer | Plugable Technologies |
| Product Model | USBC-SATA-V |
| Product Name | USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock |
| Brand Name | Plugable |
