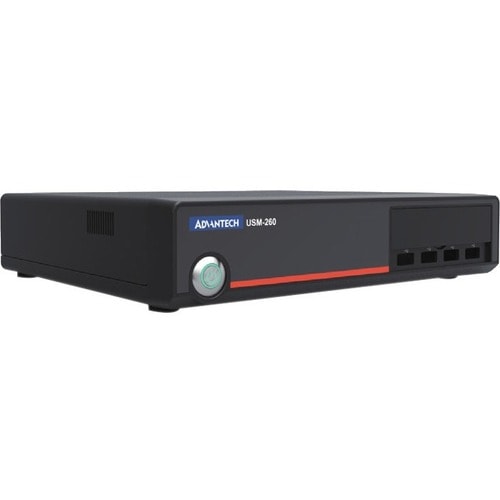

Advantech USM-260 Barebone System - Box PC - Socket H4 LGA

Name: Advantech USM-260 Barebone System - Box PC - Socket H4 LGA
Brand: Advantech
SKU: 699VVPCM
Price: 684.50 CAD
Availability: OutOfStock

$684.50 CAD

~~$766.64 CAD~~ $684.50 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Advantech USM-260 Barebone System - Box PC - Socket H4 LGA-1151 - 1 x Processor Support - Intel H110 Chip - 32 GB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - HD Graphics 530 Graphic(s) - HDMI - Processor Support (Celeron, Pentium, Core i3, Core i5, Core i7) - Gigabit Ethernet - 4 USB 3.0 Port(s) - 90 W

VPN:USM-260F-BST00SKU:699VVPCM UPC:

Embedded 6th Generation Skylake Celeron G3900TE/Pentium G4400TE/ i3-6100TE/i5-6500TE/ i7-6700TE
Compact Design for space saving
Easy access to dual 2.5" HDD/SSD tray in front cover

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Advantech USM-260 Barebone System - Box PC - Socket H4 LGA

About the product

Embedded 6th Generation Skylake Celeron G3900TE/Pentium G4400TE/ i3-6100TE/i5-6500TE/ i7-6700TE

Compact Design for space saving

Easy access to dual 2.5" HDD/SSD tray in front cover

Dual Display: DP+HDMI or DP+VGA or HDMI+VGA

Multiple IO with up to 8 x USB, 2 x LAN, 4 x COM is suitable for variety of application requests

Easy/quick installation for expansion parts (Mini PCIe) and RAM and mSATA

Lockable DC jack design

Flexibility for mounting : VESA,Wall/Desk

Technical Specifications

Controllers
Controller Type	Serial ATA/600
Network & Communication
Ethernet Technology	Gigabit Ethernet
Power Description
Maximum Power Supply Wattage	90 W
Chipset
Chipset Manufacturer	Intel
Chipset Model	H110
Display & Graphics
Graphics Controller Model	HD Graphics 530
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared
Interfaces/Ports
HDMI	Yes
Total Number of USB Ports	4
Number of USB 3.0 Ports	4
Number of VGA Ports	1
Memory
Maximum Memory Supported	32 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2133/PC4-17000
Total Number of Memory Slots	2
Miscellaneous
Package Contents	USM-260 Barebone System Power Adapter VESA Mounting Wall Mounting Desktop Mounting
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Form Factor	Box PC
Height	2.24" (57 mm)
Width	8.27" (210 mm)
Depth	9.45" (240 mm)
Product Color	Black
Color Family	Black
General Information
Product Type	Barebone System
Manufacturer Part Number	USM-260F-BST00
Manufacturer Website Address	http://www.advantech.com
Manufacturer	Advantech Co., Ltd
Product Model	USM-260
Product Name	USM-260 Barebone System
Brand Name	Advantech
Processor
Processor Supported	Celeron
	Pentium
	Core i7
	Core i5
	Core i3
Processor Socket	Socket H4 LGA-1151
Number of Processors Supported	1
