About the product

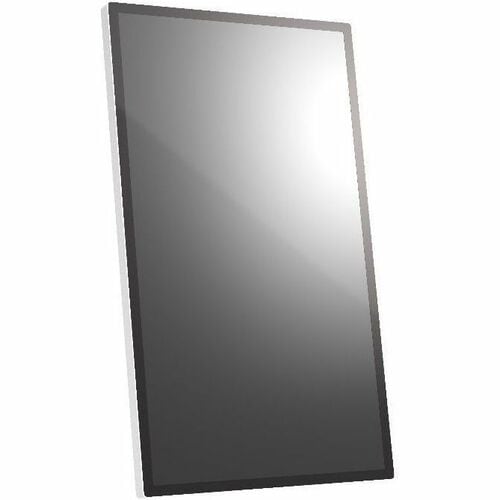

UTC-542 features an extra slim border all-in-one computing system equipped with wide format, touch based and mirror coating LCD panel. It is easy to integrate key peripherals for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits. Moreover, Advantech DeviceOn/iService Software is a next-generation unified device management unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
- Low power, high performance and fanless system design
- Built-in Intel® Pentium® N4200 (UTC-542G)
- 42.5" monitor with 16:9 widescreen display
- IP65-rated front panel for water and dust resistance
- Supports both landscape and portrait screen orientations
- Dual hot-swappable HDD/SSD slots with RAID 0/1 support
- Optional mirror coating to support smart mirror applications
- Support DeviceOn/iService software for remote device management
- i7 sku is available for F platform only
Technical Specifications
| Chipset | |
| Chipset Manufacturer | Intel |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Operating System | |
| Operating System | Windows 10 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Display & Graphics | |
| Screen Resolution | 1920 x 1080 |
| Screen Size | 42.5" (1079.50 mm) |
| Screen Mode | Full HD |
| Touchscreen | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 54.23 lb (24600 g) |
| Height | 23.83" (605.20 mm) |
| Width | 40.04" (1016.90 mm) |
| Depth | 2.38" (60.50 mm) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Frequency | 60 Hz |
| 50 Hz | |
| Processor | |
| Processor Speed | 1.10 GHz |
| Processor Type | Pentium |
| Processor Model | N4200 |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Standard Memory | 4 GB |
| Memory Technology | DDR3L SDRAM |
| Number of Occupied Memory Slots | 1 |
| Memory Configuration | 1 x 4GB |
| Total Number of Memory Slots | 1 |
| General Information | |
| Product Type | All-in-One Computer |
| Manufacturer Part Number | UTC542GPATB0E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | UTC-542G |
| Product Name | UTC-542G All-in-One Computer |
| Brand Name | Advantech |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 3 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Number Of Ethernet Ports | 2 |
