About the product

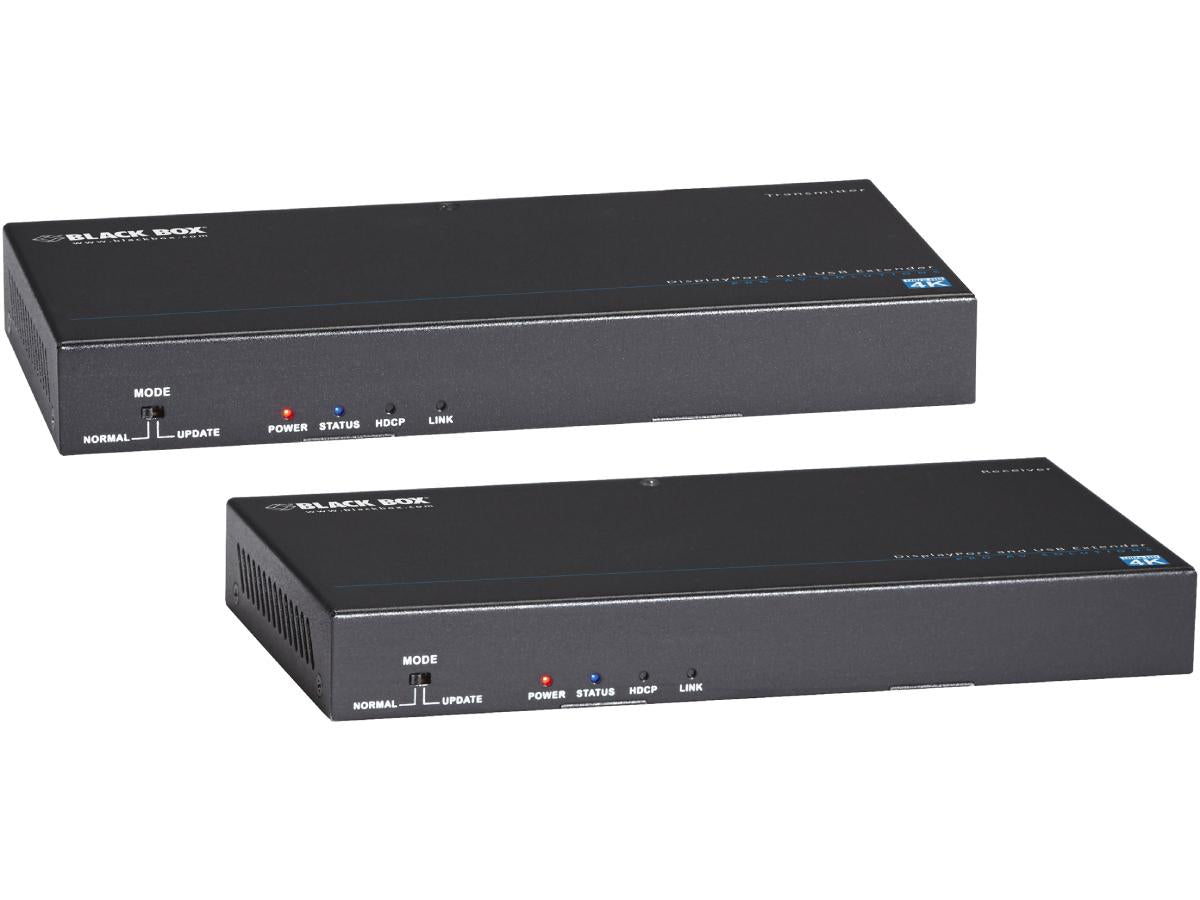

This Black Box DisplayPort & USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop, with USB 2.0 devices one can extend a keyboard, mouse and and other peripheral signals.
Technical Specifications
| Primary Information | |
| Device Type: | Video Extender |
| Data Transfer Rate: | 10.2 Gbps |
| Max Transfer Distance: | 100 M |
| Interfaces: | Transmitter: (1) 12-VDC Barrel; (1) CATx OUT; (1) 3-pin Phoenix Connector; (1) DisplayPort IN; (1) Audio IN; (1) Audio OUT; (1) USB Type-B; Receiver: (1) 12-VDC Barrel; (1) CATx IN; (1) 3-pin Phoenix Connector; (1) DisplayPort OUT; (1) Audio IN |
| Features: | USB 2.0 passthrough;Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter;HDCP 2.2 compliant and supports EDID transmission;Extend your signals as far as 100m over CAT6A/CAT7 cables |
| What's Included: | (1) DisplayPort Transmitter(1) DisplayPort Receiver(1) 12-VDC, 2-A Power Supply with US, EU, UK, and AU Power Clips(2) 3.5-mm, 2-pin Male Phoenix Connectors(2) Mounting BracketsUser Manual |
| Networking | |
| Data Link Protocol: | Gigabit Ethernet |
| Dimensions&Miscellaneous | |
| Width: | 7.91 Inch |
| Depth: | 3.95 Inch |
| Height: | 0.99 Inch |
| Service&Support | |
| Service & Support Type: | Extended Double Diamond Warranty Available (3 Additional Years) |
| Special Feature | |
| COO: | CHINA |
| UNSPSC Code | |
| UNSPSC Code: | 43222608 |
