About the product

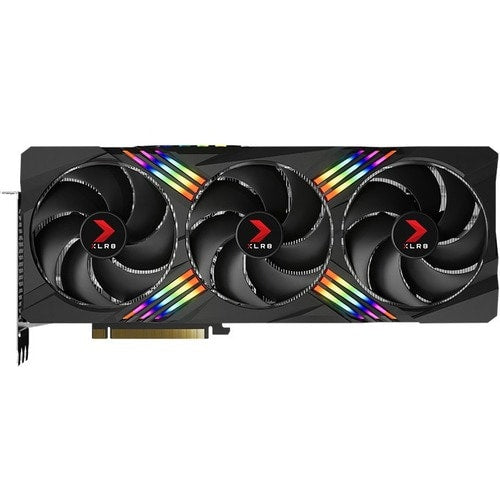

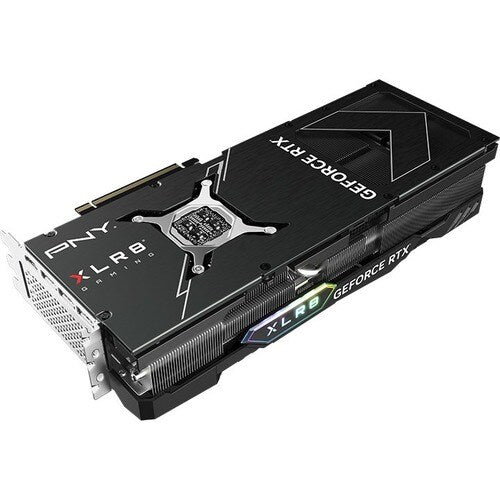

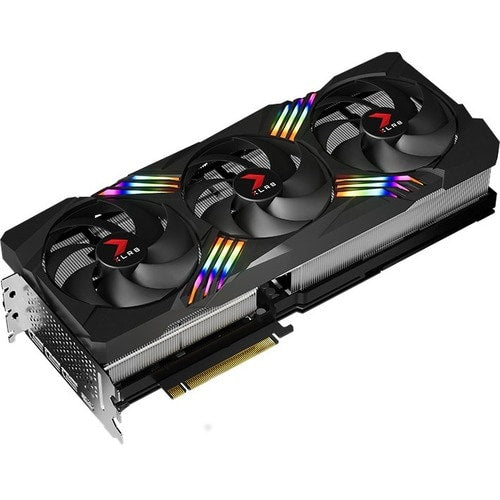

PNY GeForce RTX® 4090 24GB XLR8 Gaming VERTO™ EPIC-X RGB Triple Fan
NVIDIA Ada Lovelace Streaming Multiprocessors
Up to 2x performance and power efficiency
4th Generation Tensor Cores
Up to 2X AI performance
3rd Generation RT Cores
Up to 2X ray tracing performance
NVIDIA® GeForce RTX® 40 Series GPUs are beyond fast for gamers and creators. They're powered by the ultra-efficient NVIDIA Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds with ray tracing and ultra-high FPS gaming with the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration.
The NVIDIA® GeForce RTX® 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It's powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It's built on a new custom TSMC 4N process, runs with blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more.
- Cost-efficient NVIDIA® GeForce™ RTX 4090 provides effective Blu-ray playback acceleration and great gaming experience
- Loaded with a power-efficient fan to dissipate heat and as a result, you get enduring usability
- Built-in 24 GB GDDR6X memory for a crisp and detail display
Technical Specifications
| Miscellaneous | |
| Platform Supported | PC |
| Power Description | |
| Power Supply Wattage | 850 W |
| Power Connector | 1x 16-pin |
| Memory | |
| Standard Memory | 24 GB |
| Memory Technology | GDDR6X |
| Bus Width | 384 bit |

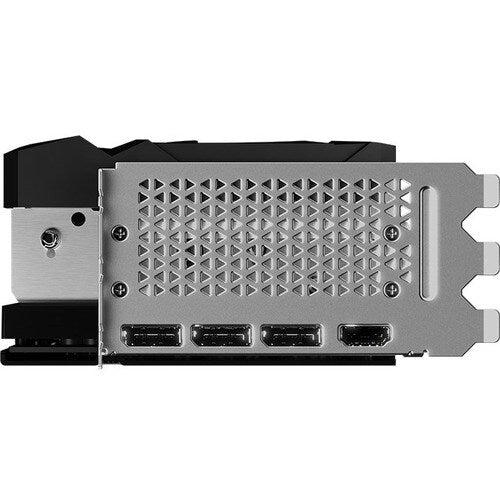

| Interfaces/Ports | |
| Host Interface | PCI Express 4.0 x16 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| General Information | |
| Product Type | Graphic Card |
| Manufacturer Part Number | VCG409024TFXXPB1 |
| Manufacturer Website Address | http://www.pny.com |
| Manufacturer | PNY Technologies |
| Product Name | GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X RGB Triple Fan Graphic Card |
| Brand Name | PNY |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Length | 13.06" (331.72 mm) |
| Cooler Type | Fan Cooler |
| Height | 2.80" (71.12 mm) |
| Width | 5.39" (136.91 mm) |
| Slot Space Required | Quad |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 4090 |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| GPU Clock | 2.23 GHz |
| GPU Boost Clock | 2.52 GHz |
| Technical Information | |
| API Supported | Vulkan 1.3 |
| OpenGL 4.6 | |
| DirectX 12 Ultimate | |
| VulkanRT | |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 16384 |
