About the product
The all new Vertiv™ Liebert® Rack PDU and Rack PDU Extenders are specifically designed for integration between the GXT5 Lithium-Ion UPS and power distribution in the rack or to adjacent racks.
- Electric power fitted to racks of computers and networking equipment within a data center
- You can always avoid potential overloads with PDU meter
Technical Specifications
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 208 V AC |
| 120 V AC | |
| Input Current | 60 A |
| Power Rating (VA) | 208 VA |
| Power Rating (Watt) | 11.50 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP4N6003 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 / Box |
| Manufacturer | Vertiv |
| Product Model | VP4N6003 |

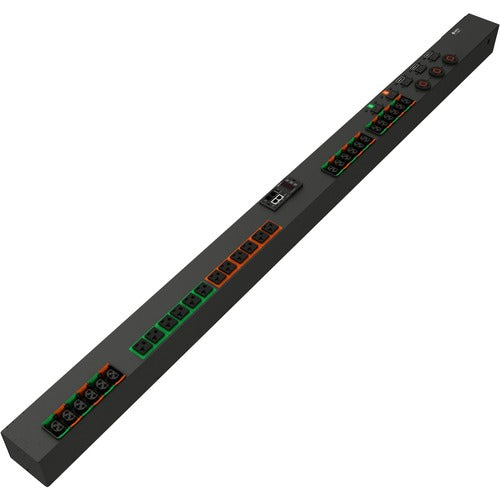

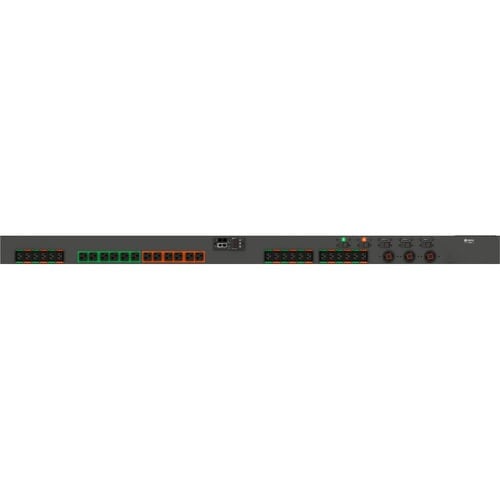

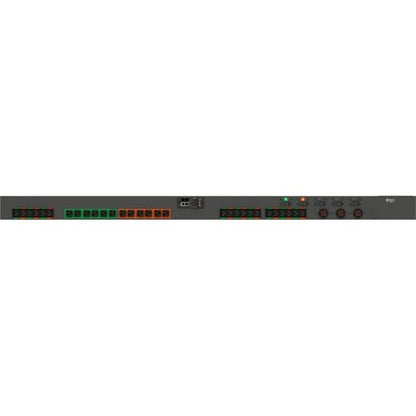

| Product Name | VP4N6003 18 x C13/C19, 12 x NEMA 5-20R, 3 x NEMA L14-30R Vertical PDU |
| Brand Name | Vertiv Liebert |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Receptacle Type | NEMA 5-20R |
| IEC 60320 C13/C19 | |
| NEMA L14-30R | |
| PDU Type | Metered |
| Receptacle Detail | 12 x NEMA 5-20R |
| 18 x IEC 60320 C13/C19 | |
| 3 x NEMA L14-30R | |
| Physical Characteristics | |
| Form Factor | Rack |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 3.75" (95.25 mm) |
| Depth | 3" (76.20 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black Powder Coat |
| Color Family | Black |
