About the product

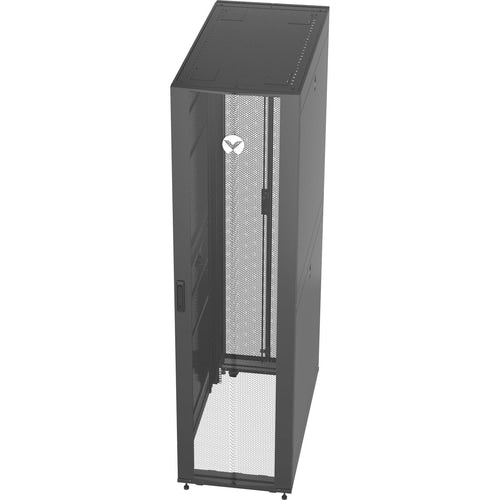

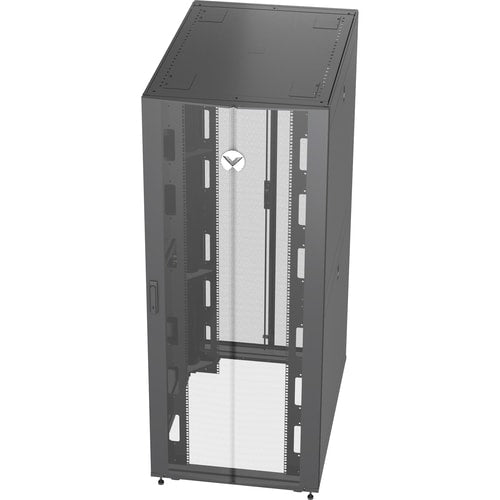

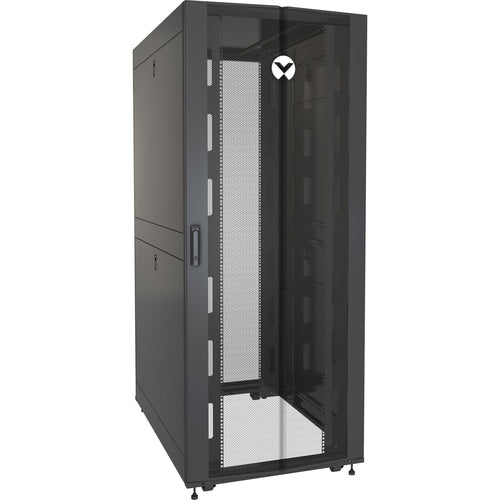

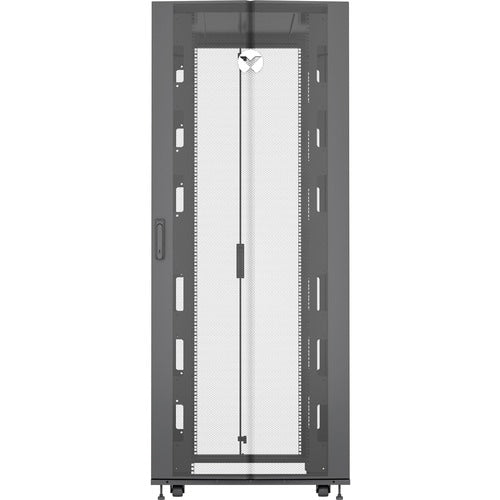

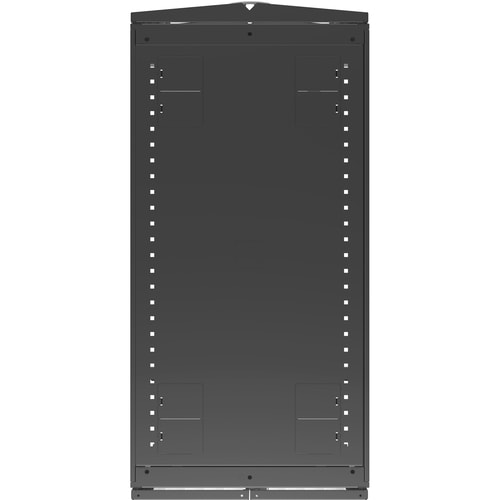

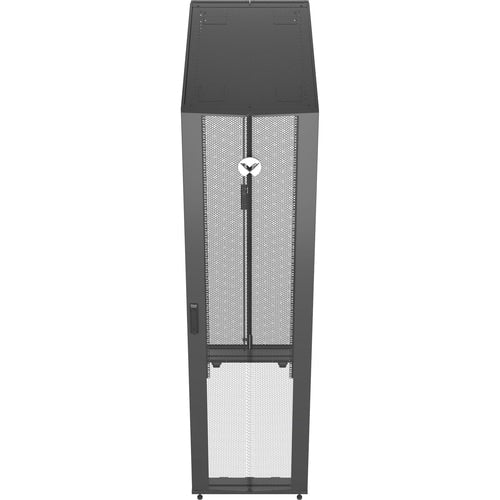

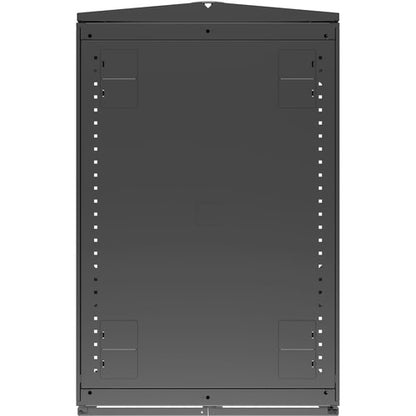

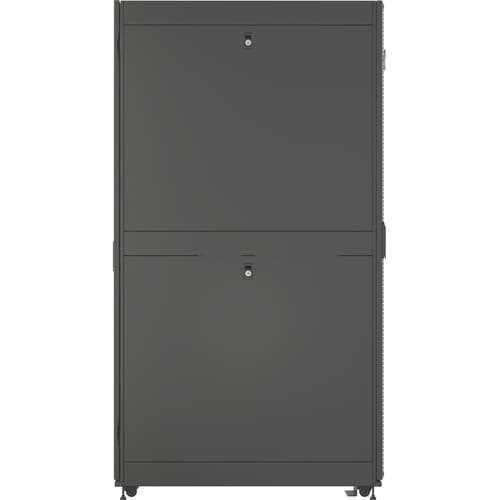

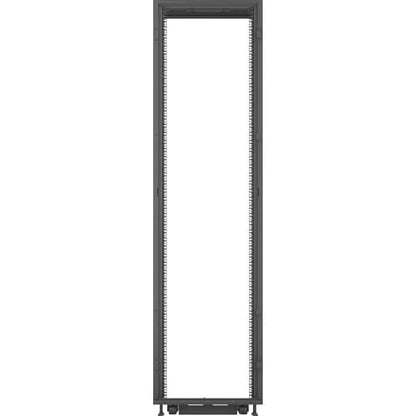

The Vertiv VR Rack VR3307 is a 48U server rack built with reliable engineering and is designed for simple and easy configuration. It has dimensions of 2265mm x 600mm x 1200mm (height, width, and depth), and has a deep frame that provides users around 2.5 inches more useable depth than similar sized racks. It has load capacities of 3,000 pounds static and 2,500 pounds dynamic. It is delivered ready for high density environments and supports a wide variety of equipment, including: servers, storage, PDUs, UPSs, console servers, and KVM switches. The zero U spaces in the Vertiv VR Rack have brackets and mounting holes for tool-less installation and removal of rack PDUs and cable management accessories. Each rack also comes with two sets of 19-inch EIA rails for sliding shelves, and the rack has split side panels with single locking slam latch that allows for easy single person installation and removal.
- 42U server rack that supports: servers, storage, PDUs, UPSs, consoles, and KVM switches
- Modify this fully configurable rack cabinet to suit the needs of your network
- Frame design provides 2.5 inches more usable depth than a standard 19-inch rack cabinet
- Server enclosure dimensions (HxWxD): 2265mm x 600mm x 1200mm
- 48U server rack that supports: servers, storage, PDUs, UPSs, consoles, and KVM switches
Technical Specifications
| Technical Information | |
| Application/Usage | Patch Panel |
| LAN Switch | |
| KVM Switch | |
| UPS | |
| PDU | |
| Server | |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | VR3307 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | Vertiv VR Rack - 48U Server Rack Enclosure| 600x1200mm| 19-inch Cabinet (VR3307) |
| Product Line | VR |
| Brand Name | VERTIV |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | Vertiv VR Rack |
| Country of Origin | Thailand |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 365.97 lb (166000 g) |
| Form Factor | Floor Standing |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 48U |
| Height | 89.17" (2265 mm) |
| Width | 23.62" (600 mm) |
| Depth | 47.24" (1200 mm) |
| Maximum Weight Capacity | 3000.49 lb (1361000 g) |
| Static/Stationary Weight Capacity | 2998.29 lb (1360000 g) |
| Dynamic/Rolling Weight Capacity | 2248.72 lb (1020000 g) |
| Rack Depth | 47.83" (1215 mm) |
| Product Color | Black |
| Product Material | Steel |
