About the product

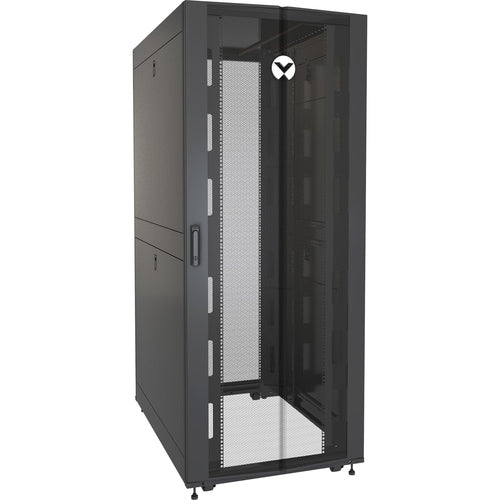

The Vertiv VR Rack VR3350 is a 42U server rack built with reliable engineering and is designed for simple and easy configuration. It has dimensions of 2000mm x 800mm x 1200mm (height, width, and depth), and has a deep frame that provides users around 2.5 inches more useable depth than similar sized racks. It has load capacities of 3,000 pounds static and 2,500 pounds dynamic. It is delivered ready for high density environments and supports a wide variety of equipment, including: servers, storage, PDUs, UPSs, console servers, and KVM switches. The zero U spaces in the Vertiv VR Rack have brackets and mounting holes for tool-less installation and removal of rack PDUs and cable management accessories. Each rack also comes with two sets of 19-inch EIA rails for sliding shelves, and the rack has split side panels with single locking slam latch that allows for easy single person installation and removal.
- 42U rack with load capacities of 3,000 pounds static and 2,500 pounds dynamic
- Modify this fully configurable rack cabinet to suit the needs of your network
- Frame design provides 2.5 inches more usable depth than a standard 19-inch rack cabinet
- Server enclosure dimensions (HxWxD): 2000mm x 800mm x 1200mm
- 42U server rack that supports: servers, storage, PDUs, UPSs, consoles, and KVM switches
Technical Specifications
| Technical Information | |
| Application/Usage | UPS |
| Server | |
| KVM Switch | |
| Patch Panel | |
| PDU | |
| LAN Switch | |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | VR3350 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | Vertiv VR Rack - 42U Server Rack Enclosure| 800x1200mm| 19-inch Cabinet (VR3350) |
| Product Line | VR |
| Brand Name | VERTIV |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | Vertiv VR Rack |
| Country of Origin | Thailand |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 365.97 lb (166000 g) |
| Form Factor | Floor Standing |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 42U |
| Height | 78.74" (2000 mm) |
| Width | 31.50" (800 mm) |
| Depth | 47.24" (1200 mm) |
| Static/Stationary Weight Capacity | 3000 lb (1360777.11 g) |
| Dynamic/Rolling Weight Capacity | 2500 lb (1133980.93 g) |
| Rack Depth | 47.83" (1215 mm) |
| Product Color | Black |
| Product Material | Steel |
