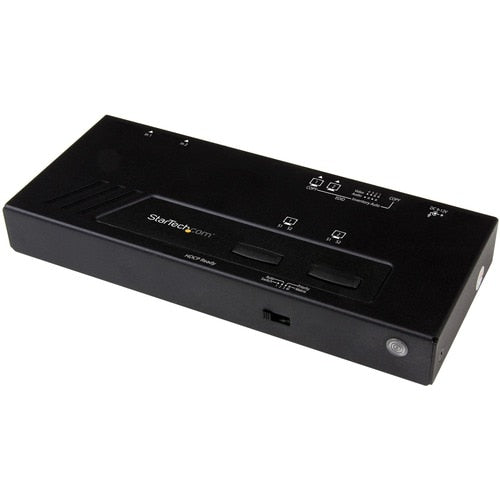

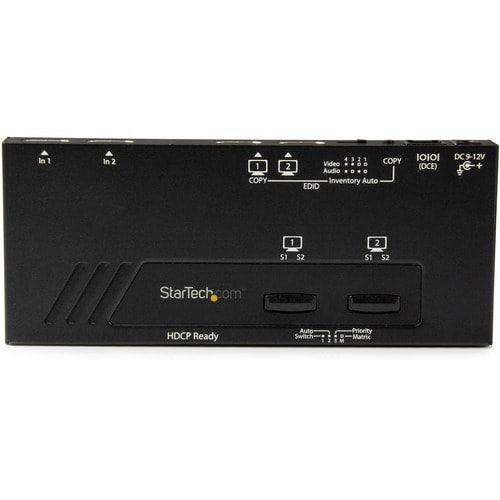

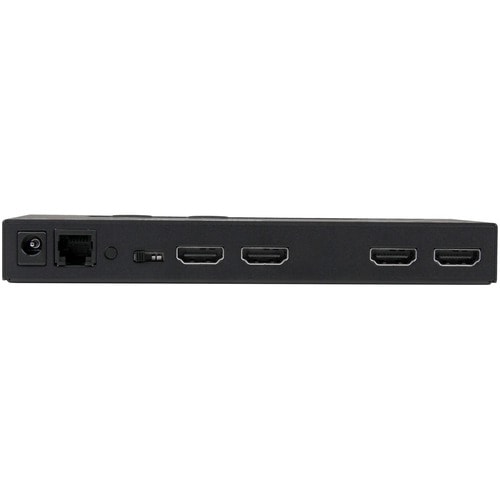

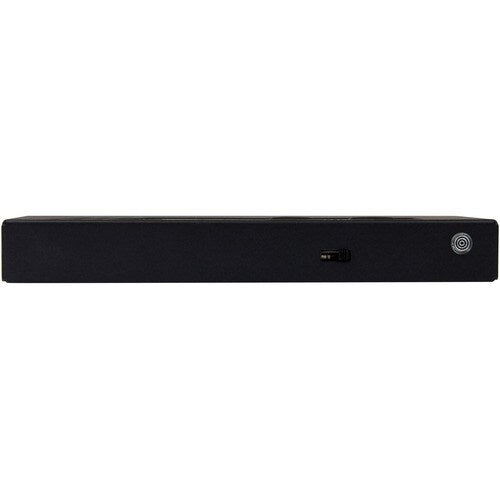

StarTech.com 2x2 HDMI Matrix Switch - 4K with Fast Switching
StarTech.com 2x2 HDMI Matrix Switch - 4K with Fast Switching
VPN:VS222HD4K SKU:CBAV6717F CPU:65030862271
Impressive image quality with support for Ultra HD 4KEasy operation with automatic, priority and manual switching between HDMI sourcesAccess two HDMI source devices on two independent HDMI displays, with 2 x 2 matrix switching
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details



Recently Viewed
StarTech.com 2x2 HDMI Matrix Switch - 4K with Fast Switching
Product information summary

About the product
Save time and hassle by automatically switching between your HDMI audio/video sources. This 2x2 HDMI® matrix switcher provides the ultimate viewing experience, with support for Ultra HD 4K. It lets you connect two HDMI sources to two HDMI displays, with exceptional 4K resolution
while switching seamlessly between your videosources. Impressive image quality with 4K support The matrix switch supports Ultra HD 4K picture quality on two monitorswhile switching between content from HDMI source devices - including Blu-ray™ players or DVD players, computer systems, video game consoles, digital cable or satellite boxes, and A/V receivers. 4K support ensures a higher level of image clarity and visibility, deliveringfour times the resolution of 1080p - 8.29 million pixels versus 2.07 million pixels. It provides a more engaging visual experience for audiences in a wide range of venues including conference centers, boardrooms, educational facilities, and commercial settings. With its exceptional image quality, 4K resolution is also ideal for bringing your digital signage to life. Fast and versatile switching options Enjoy hassle-free operation with four different switching modes: Matrix switching:lets you route either HDMI source (Input 1 or Input 2) to either monitor (Output 1and/or Output 2) - and independently switch two displays between two video sources. Fast auto-switching: ensures minimal time for switching between HDMI sources. The switch provides effortless operation withadvanced auto-sensing - it detects the latest connected HDMI source and automatically switches both outputs to that device.It also ensures no downtime in a digital signage application ifa source signal is accidentally powered off or fails. Priority switching:identifies the first port to have first priority for HDMI sources, which will be output on both displays. Manual switching:enables you to manually select your HDMI source with front-panel buttons that are easy to use. An IR remote control is included in the box, enabling you to select your desired input source remotely. The RS-232 serial control interface ensures easy remote operation with serial control enabled devices. Hassle-free setup with plug-and-play installation The matrix switch is easy to install. EDID emulation saves you time during setupbyensuring all of your display settings, such asnative resolution and refresh rate, are communicatedbetween your display and video source devices. The built-in EDID copy feature maximizescompatibility with your 4K display, to ensure a convenient plug-and-play installation and the sharpest image quality. The VS222HD4K is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support. More from the Manufacturer More from the ManufacturerImpressive image quality with support for Ultra HD 4KEasy operation with automatic, priority and manual switching between HDMI sourcesAccess two HDMI source devices on two independent HDMI displays, with 2 x 2 matrix switchingIR remote control includedRS-232 serial control interfaceEDID copy support ensures accurate display outputBackward compatible with high-definition 1080pMounting hardware included
Technical Specifications
Video | |
Graphics Modes | 4K |
Maximum Video Resolution | 3840 × 2160 |
Interfaces/Ports | |
Number of HDMI Inputs | 2 |
Number of HDMI Outputs | 2 |
HDMI In | Yes |
HDMI Out | Yes |
Miscellaneous | |
Package Contents |
|
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Physical Characteristics | |
Weight (Approximate) | 1.85 lb (841 g) |
Height | 2.60" (66.04 mm) |
Width | 9.30" (236.22 mm) |
Depth | 6.10" (154.94 mm) |
Product Color | Black |
Color Family | Black |
General Information | |
Product Type | Audio/Video Switchbox |
Manufacturer Part Number | VS222HD4K |
Manufacturer Website Address | http://www.startech.com |
Packaged Quantity | 1 Each |
Manufacturer | StarTech.com |
Product Name | 2x2 HDMI Matrix Switch - 4K with Fast Switching and Auto-Sensing |
Brand Name | StarTech.com |
Technical Information | |
Device Supported | Set-top Box |
Projector | |
A/V Receiver | |
Blu-ray Disc Player | |
Computer | |
Display | |
Gaming Console | |
DVD Player | |
Connectivity Technology | Cable |
Number of Displays Supported | 2 |
Number of Input Devices Supported | 2 |
