About the product

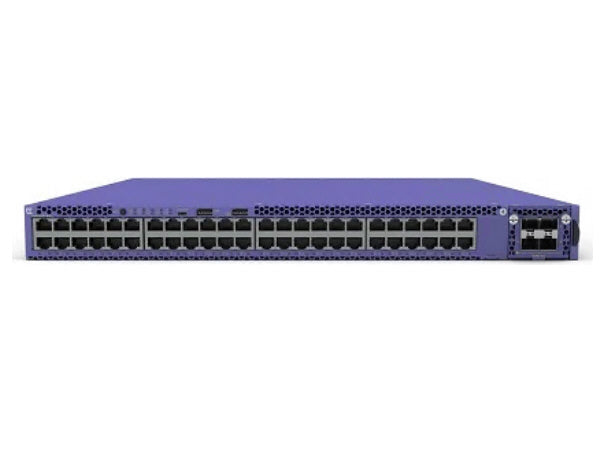

Switch - Vsp4900-48P - 1U - Wired - 1Gbps - Networking / Ports Qty: 53 - Gigabit Ethernet - 2Gb Ram - 8Gb Flash Memory - 100-240 Vac - Intuitive And Centralized Cloud-Managed Switching With Extremecloud Iq And Extremecloud Iqsite Engine Macsec On 10Mb/100Mb/1000Mb And 10Gb Access Ports As Well As Modular Uplink Ports For Secure Link Encryption
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | VSP4900-48P |
| Connectivity Technology: | Wired |
| RAM / Total Installed Size: | 2 GB |
| Flash Memory / Installed Size: | 8 GB |
| Networking Compliant Standards: | IEEE 802.3ab 1000BASE-TIEEE 802.3ae 10GBASE-XIEEE 802.3aq 10GBASE-LRM25Gb Ethernet implemented per Ethernet Consortium specification andIEEE 802.3 standardIEEE 802.3ba / 802.3bm 40GBASE-XIEEE 802.3at PoE PlusIEEE 802.3az Energy Efficient Etherne |
| Power / Device Type: | None |
| Media Layer Supported: | Layer 2, Layer 3 |
| Max Power Consumption: | 1746 Watt |
| Power / Voltage Required: | 100-240 VAC |
| Features: | Intuitive and centralized cloud-managed switching with ExtremeCloud IQ and ExtremeCloud IQSite Engine MACsec on 10Mb/100Mb/1000Mb and 10Gb access ports as well as modular uplink ports for secure link encryption |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 845W |
| MAC Address Table Size: | 80000 |
| Remote Management Protocol: | IPv4; IPv6 |
| Routing Protocol: | RIPv1/2, RIPng, and OSPFv2/v3) |
| Encryption Algorithm: | AES |
| 10/100/1000BASE-T Ports: | 49 |
| Interfaces: | 48 x 10/100/1000BASE-T 802.3at (30w) ports, 1 x Serial (console port RJ-45), 1 x 10/100/1000BASE-T out-of-band management port, 1 x USB Micro-B management port, 2 x USB A ports for external USB flash 1 VIM5 slot |
| Interfaces / Ports | |
| Interfaces: | 48 x 10/100/1000BASE-T 802.3at (30w) ports, 1 x Serial (console port RJ-45), 1 x 10/100/1000BASE-T out-of-band management port, 1 x USB Micro-B management port, 2 x USB A ports for external USB flash 1 VIM5 slot |
| 10/100/1000BASE-T Ports: | 49 |
| Dimensions&Miscellaneous | |
| Width: | 17.34 Inch |
| Depth: | 19.23 Inch |
| Height: | 1.7 Inch |
| Weight: | 18.49 lbs. |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 45 Celsius |
| Min Storage Temperature: | -40 Celsius |
| Max Storage Temperature: | 70 Celsius |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
