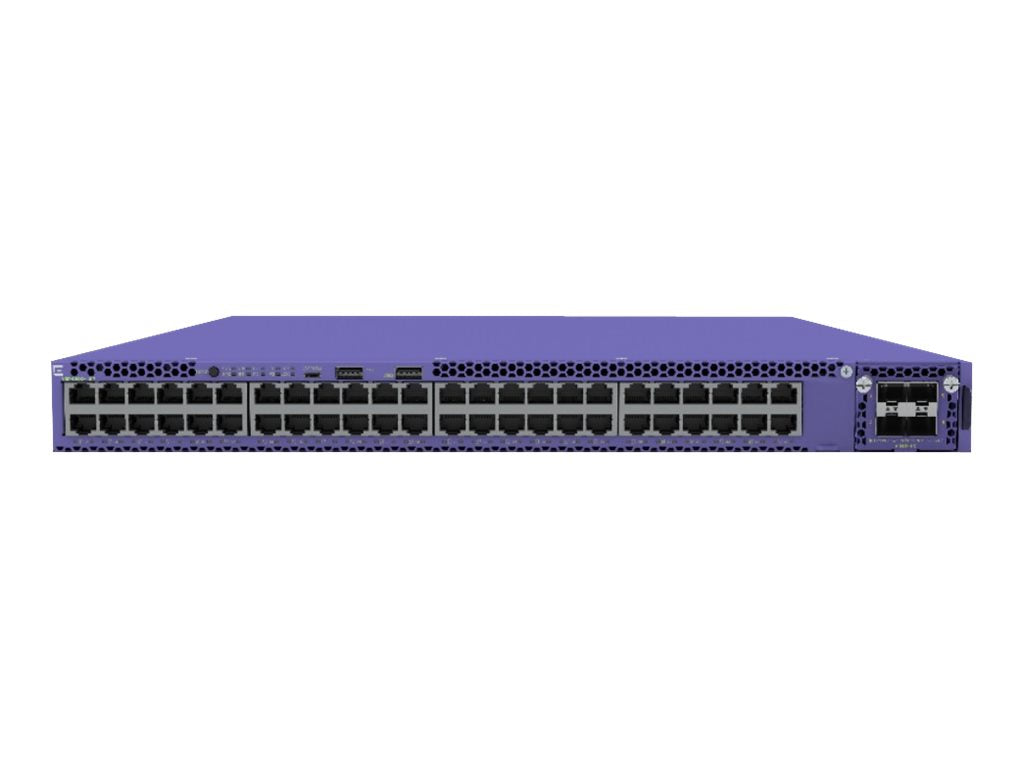

Extreme Networks Virtual Services Platform 4900 - Bundle - Switch

Name: Extreme Networks Virtual Services Platform 4900 - Bundle - Switch
Brand: Extreme
SKU: T187658
Price: 21336.48 CAD
Availability: InStock

$21,336.48 CAD

~~$23,470.13 CAD~~ $21,336.48 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

Extreme Networks Virtual Services Platform 4900 - Bundle - Switch - 48 Ports - Managed - Rack-Mountable - With Vim5-4X Module

VPN:VSP4900-48P-B1-4X SKU:T187658 UPC:644728045013

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Extreme Networks Virtual Services Platform 4900 - Bundle - Switch

About the product

Designed to extend the reach of Extreme Fabric Connect technology to the branch and network edge, the Virtual Services Platform (VSP) 4900-48P delivers fully featured network virtualization capabilities in a cost-effective Ethernet platform. Optimized for small sites, the VSP 4900-48P offers full multi-service capabilities in a compact form factor and provides a simplified, streamlined way to build and manage networks.

Technical Specifications

Primary Information
Product Description:	Extreme Networks Virtual Services Platform 4900 - Bundle - switch - 48 ports - managed - rack-mountable - with VIM5-4X module
Device Type:	Switch - 48 ports - L3 - managed - with VIM5-4X module
Enclosure Type:	Front to back airflow rack-mountable 1U
Subtype:	Gigabit Ethernet
Ports:	48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance:	Switching capacity: 196 Gbps ¦ Frame rate: 145.8 Mpps
Capacity:	VLANs supported: 4059 ¦ MSTP instances: 12 ¦ Links per MLT/LACP group: 8 ¦ ARP entries: 32000 ¦ IPv4 routes: 15488 ¦ RIP interfaces: 200 ¦ OSPF interfaces: 500 ¦ BGP peers: 256 ¦ VRF instances: 256 ¦ IPv6 neighbor table entries: 8000 ¦ IPv6 routes: 7744 ¦ RIPng interfaces: 48 ¦ OSPFv3 interfaces: 500 ¦ BGPv6 peers: 256 ¦ IGMP interfaces: 4059 ¦ PIM active interfaces: 128 ¦ MLD interfaces: 4059 ¦ IP multicast streams: 6000 ¦ MAC addresses: 40000 ¦ L2 virtual service networks: 4059 ¦ L3 virtual service networks: 256 ¦ IP shortcut routes (IPv4): 15488 ¦ IP shortcut routes (IPv6): 7488 ¦ L2 multicast virtual service networks: 2000 ¦ L3 multicast virtual service networks: 256
MAC Address Table Size:	80K entries
Routing Protocol:	RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, RIPng, BGP+
Features:	Full duplex capability, auto-negotiation, ARP support, VLAN support, port mirroring, DPI, sFlow, MSTP support, QoS, LACP, RSPAN, VRF, IPFIX, 3 fans, SPB, VXLAN, port-based VLAN, VSN support, support IP Shortcut Routing, RSTP, MLT for subscriber lines, MACsec
Compliant Standards:	IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1aq, IEEE 802.3bm, IEEE 802.1Qbp, IEEE 802.1Qcj
Power:	AC 120/230 V (50 - 60 Hz)
Power Redundancy:	Optional
Dimensions (WxDxH):	17.3 in x 19.2 in x 1.7 in
Weight:	18.5 lbs
System Requirements:	VSP Operating System Software (VOSS)
Manufacturer Warranty:	1-year warranty
General
Device Type:	Switch - 48 ports - L3 - managed - with VIM5-4X module
Enclosure Type:	Front to back airflow rack-mountable 1U
Subtype:	Gigabit Ethernet
Ports:	48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance:	Switching capacity: 196 Gbps ¦ Frame rate: 145.8 Mpps
Capacity:	VLANs supported: 4059 ¦ MSTP instances: 12 ¦ Links per MLT/LACP group: 8 ¦ ARP entries: 32000 ¦ IPv4 routes: 15488 ¦ RIP interfaces: 200 ¦ OSPF interfaces: 500 ¦ BGP peers: 256 ¦ VRF instances: 256 ¦ IPv6 neighbor table entries: 8000 ¦ IPv6 routes: 7744 ¦ RIPng interfaces: 48 ¦ OSPFv3 interfaces: 500 ¦ BGPv6 peers: 256 ¦ IGMP interfaces: 4059 ¦ PIM active interfaces: 128 ¦ MLD interfaces: 4059 ¦ IP multicast streams: 6000 ¦ MAC addresses: 40000 ¦ L2 virtual service networks: 4059 ¦ L3 virtual service networks: 256 ¦ IP shortcut routes (IPv4): 15488 ¦ IP shortcut routes (IPv6): 7488 ¦ L2 multicast virtual service networks: 2000 ¦ L3 multicast virtual service networks: 256
MAC Address Table Size:	80K entries
Routing Protocol:	RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, RIPng, BGP+
Features:	Full duplex capability, auto-negotiation, ARP support, VLAN support, port mirroring, DPI, sFlow, MSTP support, QoS, LACP, RSPAN, VRF, IPFIX, 3 fans, SPB, VXLAN, port-based VLAN, VSN support, support IP Shortcut Routing, RSTP, MLT for subscriber lines, MACsec
Compliant Standards:	IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1aq, IEEE 802.3bm, IEEE 802.1Qbp, IEEE 802.1Qcj
Processor:	1
RAM:	2 GB
Flash Memory:	8 GB
Expansion / Connectivity
Interfaces:	2 x USB ¦ 1 x serial (console) RJ-45 management ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x Type A ¦ 48 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+
Expansion Slots:	1 (total) / 0 (free) x Versatile Interface Module (VIM)
Power
Power Device:	Internal power supply - hot-plug
Installed Qty:	1
Power Redundancy:	Optional
Power Redundancy Scheme:	1+1 (with optional power supply)
Power Provided:	1100 Watt
Voltage Required:	AC 120/230 V (50 - 60 Hz)
Miscellaneous
Rack Mounting Kit:	Included
Compliant Standards:	BSMI, EN 61000-3-2, SABS, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, CDRH, VCCI Class A, EAC, GB 9254, EN 300 386 V1.6.1, RoHS 2011/65/EU, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, EMC 2014/30/EU, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, GB 4943.1-2011, IEC/EN 61000-4-3, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, ETSI EN 300 019-2-3 V2.1.2, ETSI EN 300 019-2-2 V2.1.2, NRCS, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, China RoHS SJ/T 11363-2006, RoHS CNS 15663, FCC CFR21 Part 1040.10, AS/NZS CISPR 32
Software / System Requirements
OS Required:	VSP Operating System Software (VOSS)
Dimensions & Weight
Width:	17.3 in
Depth:	19.2 in
Height:	1.7 in
Weight:	18.5 lbs
