About the product

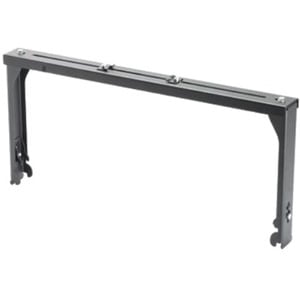

The Wyr-Grid® 24" (609.6 mm) FiberRunner® QuikLock™ Trapeze Bracket is made of steel and is black powder coated. It is 12.2" (309.9 mm) high, 24.7" (627.4 mm) long, 2.3" (58.4 mm) wide, and 24.7" (627.4 mm) deep. It attaches to the Wyr-Grid® 24" (609.6 mm) wide pathway to support a secondary FiberRunner® 4 x 4 or 6 x 4 channel above the Wyr-Grid® pathway. It adjusts 6.6" (166.6 mm) to 9.9" (251.0 mm) over the top surface of the Wyr-Grid® pathway. It comes in standard packages of one.
Technical Specifications
| Product Information | |
| Device Supported | Cable Pathway |
| Durability | Corrosion Resistant |
| Features | Adjustable |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Mounting Bracket |
| Manufacturer Part Number | WG24FRTBBL |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | Wyr-Grid Mounting Bracket |
| Product Line | Wyr-Grid |
| Brand Name | Panduit |
| Physical Characteristics | |
| Finishing | Galvanized |
| Powder Coated | |
| Length | 24.66" (626.36 mm) |
| Height | 12.20" (309.88 mm) |
| Width | 2.26" (57.40 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
