About the product
- Self-forming and self-healing mesh network
- Interference robust by time synchronization and transmission frequency hopping design
- Network-wide 99.999% network reliability
- Compliant to 6LoWPAN and IEEE802.15.4e standard
- Industry-leading low power radio technology with: • > 4.5mA to Receive a packet • > 5.4mA to Transmit at 0dBm • > 9.7mA to Transmit at 8dBm
- Supports various power sources: USB DC power, battery power and solar power
Technical Specifications
| Interfaces/Ports | |
| Host Interface | USB |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 1.23 oz (35 g) |
| Height | 2.95" (75 mm) |
| Width | 2.36" (60 mm) |
| Wireless Specifications | |
| Wireless Transmission Speed | 0.25 Mbit/s |
| ISM Band | Yes |
| ISM Minimum Frequency | 2.40 GHz |
| ISM Maximum Frequency | 2.48 GHz |
| Number of Antennas | 1 |
| General Information | |
| Product Type | Wireless Module |
| Manufacturer Part Number | WISE-1020-0S01E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |

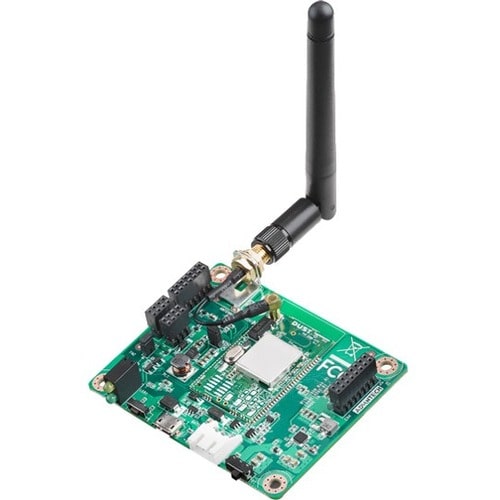

| Product Name | Wireless IoT Node with SMA connector and antenna |
| Brand Name | Advantech |
