About the product

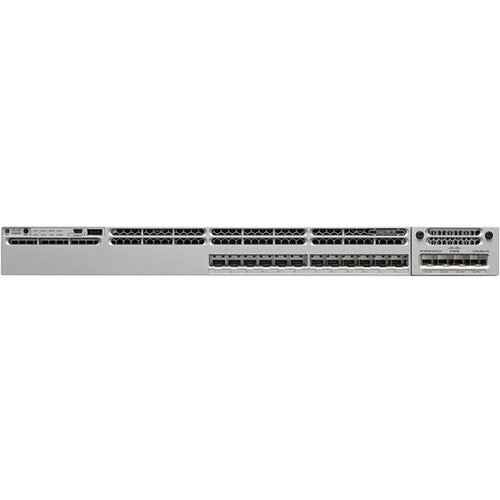

The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Stack port provides an easy and hassle-free way to extend your office network
Technical Specifications
| Network & Communication | |
| Layer Supported | 3 |
| Reliability | |
| MTBF | 315840 Hour |
| Management & Protocols | |
| Management |
|
| Manageable | Yes |
| Miscellaneous | |
| Certifications & Standards | IEEE Standards:
EMC:
Safety:
|
| Environmentally Friendly | Yes |
| Power Description | |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Media & Performance | |
| Network Technology | 1000Base-X |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Memory | |
| Flash Memory | 2 GB |
| Standard Memory | 4 GB |
| Memory Technology | DRAM |
| I/O Expansions | |
| Expansion Slot Type | Network Interface Module (NIM) |
| SFP | |
| Number of SFP Slots | 12 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 13 |
| Interfaces/Ports | |
| Token Ring Port | No |
| LRE Port | No |
| Modular | Yes |
| Management Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet Expansion Slot |
| Physical Characteristics | |
| Weight (Approximate) | 15.48 lb (7020 g) |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 17.70" (449.58 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | WS-C3850-12S-E-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | WS-C3850-12S-E |
| Product Name | Catalyst WS-C3850-12S-E Layer 3 Switch |
| Product Line | Catalyst |
| Product Series | 3850 |
| Brand Name | Cisco |
| Product Condition | Refurbished |
