Cisco 40GBase-LR4L QSFP Module for SMF

Name: Cisco 40GBase-LR4L QSFP Module for SMF
Brand: Cisco
SKU: 250326NDN
Price: 9384.06 CAD
Availability: OutOfStock

$9,384.06 CAD

~~$10,510.15 CAD~~ $9,384.06 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

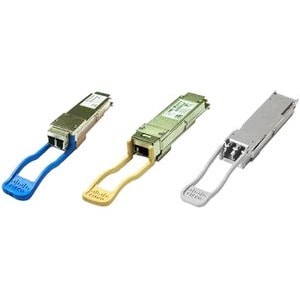

Cisco 40GBase-LR4L QSFP Module for SMF - For Data Networking, Optical Network - 1 x LC Duplex 40GBase-LR4 Network

VPN:WSP-Q40GLR4L= SKU:250326NDN UPC:882658705182

Please see below description

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

The Cisco WSP-Q40GLR4L QSFP Module supports link lengths of up to 2 km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is interoperable with 40GBase-LR4 for distances up to 2km. The operating temperature range is from +10 to +60°C with an optical link budget of 4dB. This 4dB link budget offers the ability to support the loss from patch panels in the link in a data center environment.

Technical Specifications

Media & Performance
Fiber Mode Supported	Single-mode
Miscellaneous
Compatibility	MSA Compliant
Environmentally Friendly	Yes
Technical Information
Application/Usage	Data Networking
	Optical Network
Interfaces/Ports
Interfaces/Ports Details	1 x LC Duplex 40GBase-LR4 Network
Connector Type	LC
Total Number of Ports	1
Physical Characteristics
Form Factor	Hot-swappable
Height	0.53" (13.50 mm)
Width	0.72" (18.40 mm)
Depth	2.85" (72.40 mm)
General Information
Product Type	QSFP
Manufacturer Part Number	WSP-Q40GLR4L=
Manufacturer Website Address	http://www.cisco.com
Manufacturer	Cisco Systems, Inc
Product Model	WSP-Q40GLR4L
Product Name	40GBase-LR4L QSFP Module for SMF
Brand Name	Cisco
