About the product

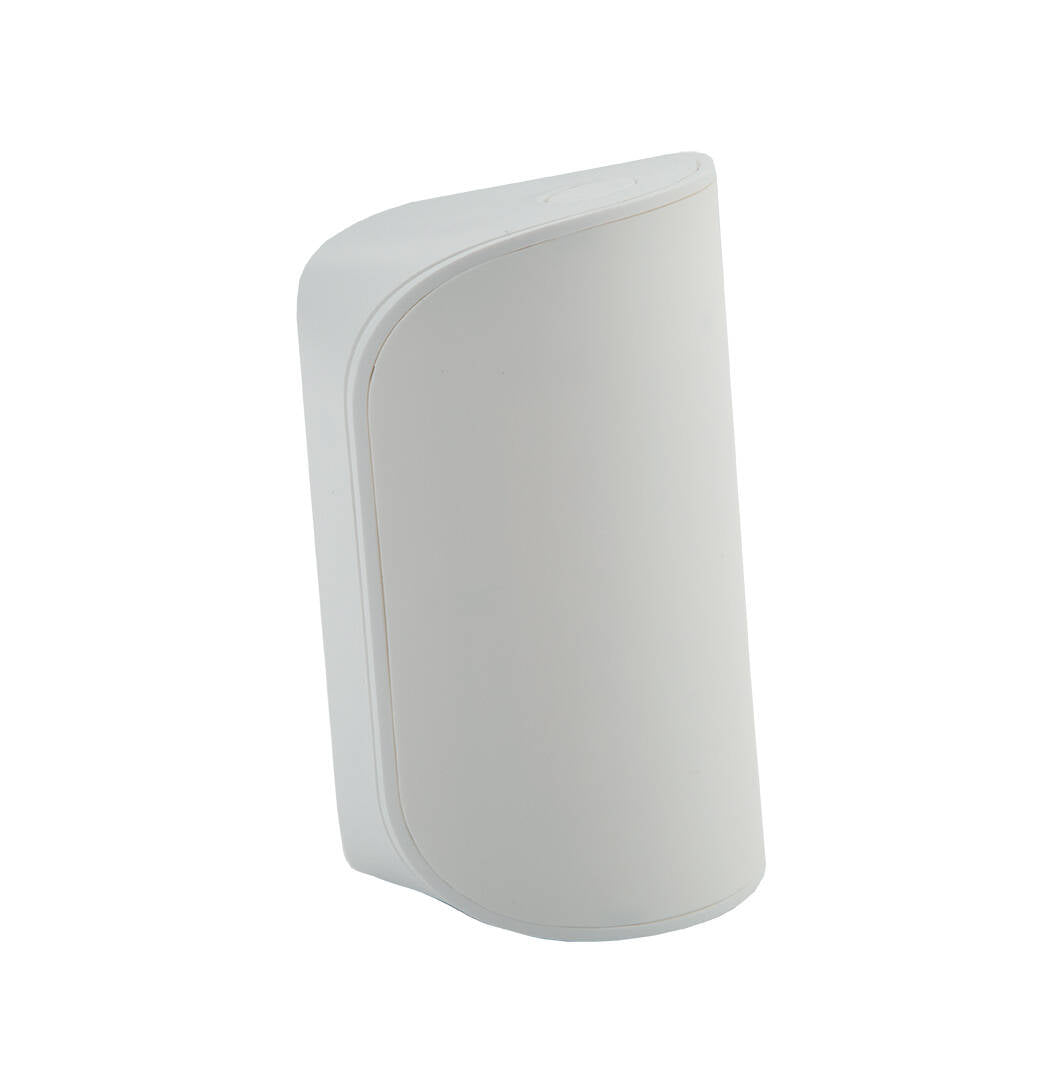

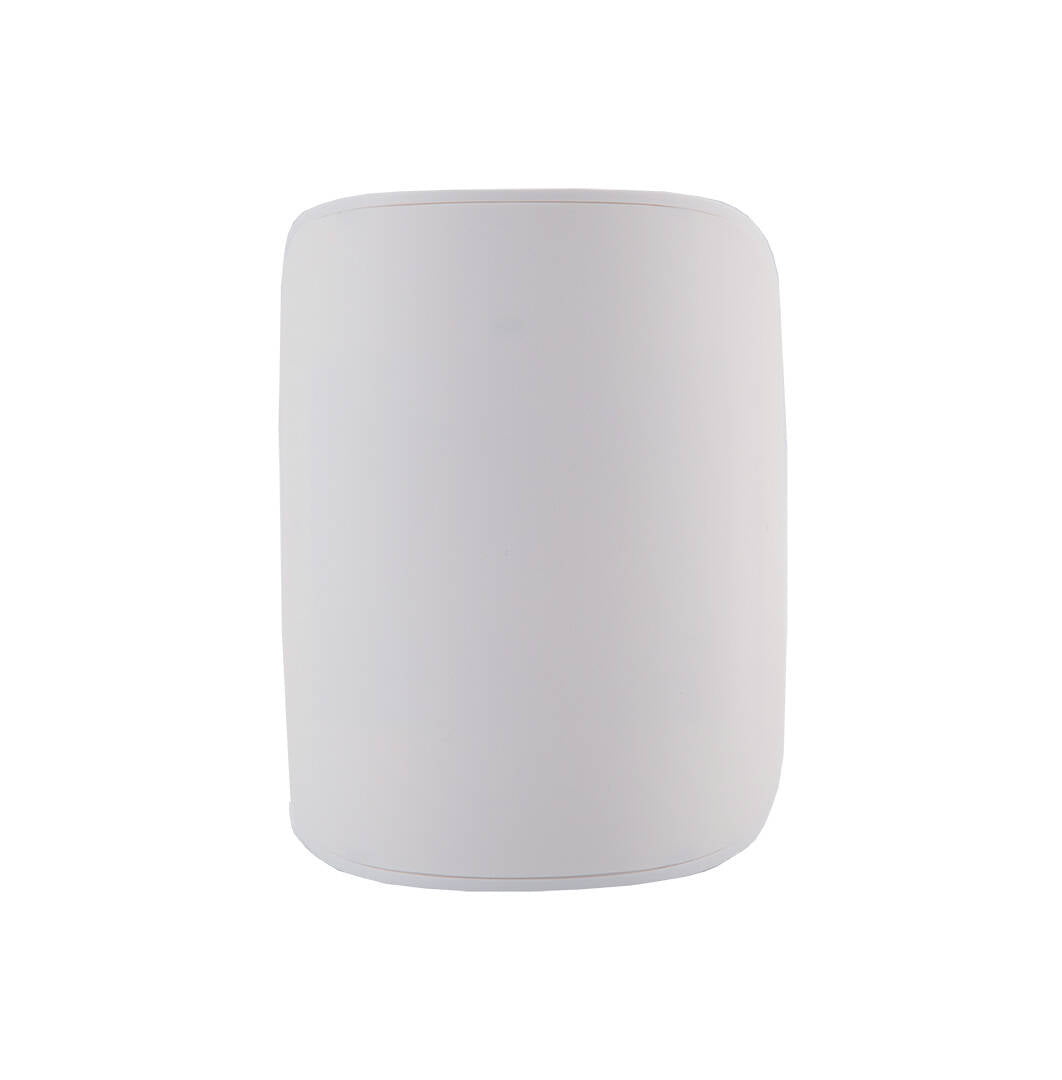

The Ecolink WST-740 Wireless 433 MHz PIR motion detector is a sleek, easy-to-mount battery powered motion detector that adds an extra level of security to your 433 MHz-based DSC security system in an attractive form factor. Designed with a smooth, rounded front and a finish that hides the lensing, the WST-740 offers up to 85 lbs. pet immunity exclusion and uncompromising, false-alarm-free detection in a package that matches your décor. Compatible with 433 MHz DSC security panels.
WST-740 Specs and Features:
- Pet immunity up to 85 lbs.
- High performing capture algorithm and Fresnel lens pattern
- Adjustable sensitivity (normal/high)
- 40’ x 40’ Coverage pattern
- Power: 1x CR-123 battery
- 5-year battery life
- Dimensions (LxWxH): 3.54’’ x 2.64’’ x 1.72’’ / 9 cm x 6.7 cm x 4.36 cm
- Platform: Sub-GHz
- RF range (LoS): up to 500 feet
- Radio / SOC: MAX7044
- Pet immunity (max): 85 lbs / 38.55 kg
- Supervisory Interval (approx.): 60 minutes
- Coverage Area: 40 feet by 40 feet, 90° angle
- Light immunity: 2000 lux
- Frequency: 433MHz
- Software compatibility: DSC, Tyco
- Operating temperature: 0-49 °C / 32-120 °F
- Operating humidity: 5-95% RH non- condensing
- FCC ID: XQC-WST740
- IC ID: 9863B-WST740
Technical Specifications
The Ecolink WST-740 Wireless 433 MHz PIR motion detector is a sleek, easy-to-mount battery powered motion detector that adds an extra level of security to your 433 MHz-based DSC security system in an attractive form factor. Designed with a smooth, rounded front and a finish that hides the lensing, the WST-740 offers up to 85 lbs. pet immunity exclusion and uncompromising, false-alarm-free detection in a package that matches your décor. Compatible with 433 MHz DSC security panels.
WST-740 Specs and Features:
- Pet immunity up to 85 lbs.
- High performing capture algorithm and Fresnel lens pattern
- Adjustable sensitivity (normal/high)
- 40’ x 40’ Coverage pattern
- Power: 1x CR-123 battery
- 5-year battery life
- Dimensions (LxWxH): 3.54’’ x 2.64’’ x 1.72’’ / 9 cm x 6.7 cm x 4.36 cm
- Platform: Sub-GHz
- RF range (LoS): up to 500 feet
- Radio / SOC: MAX7044
- Pet immunity (max): 85 lbs / 38.55 kg
- Supervisory Interval (approx.): 60 minutes
- Coverage Area: 40 feet by 40 feet, 90° angle
- Light immunity: 2000 lux
- Frequency: 433MHz
- Software compatibility: DSC, Tyco
- Operating temperature: 0-49 °C / 32-120 °F
- Operating humidity: 5-95% RH non- condensing
- FCC ID: XQC-WST740
- IC ID: 9863B-WST740
