About the product

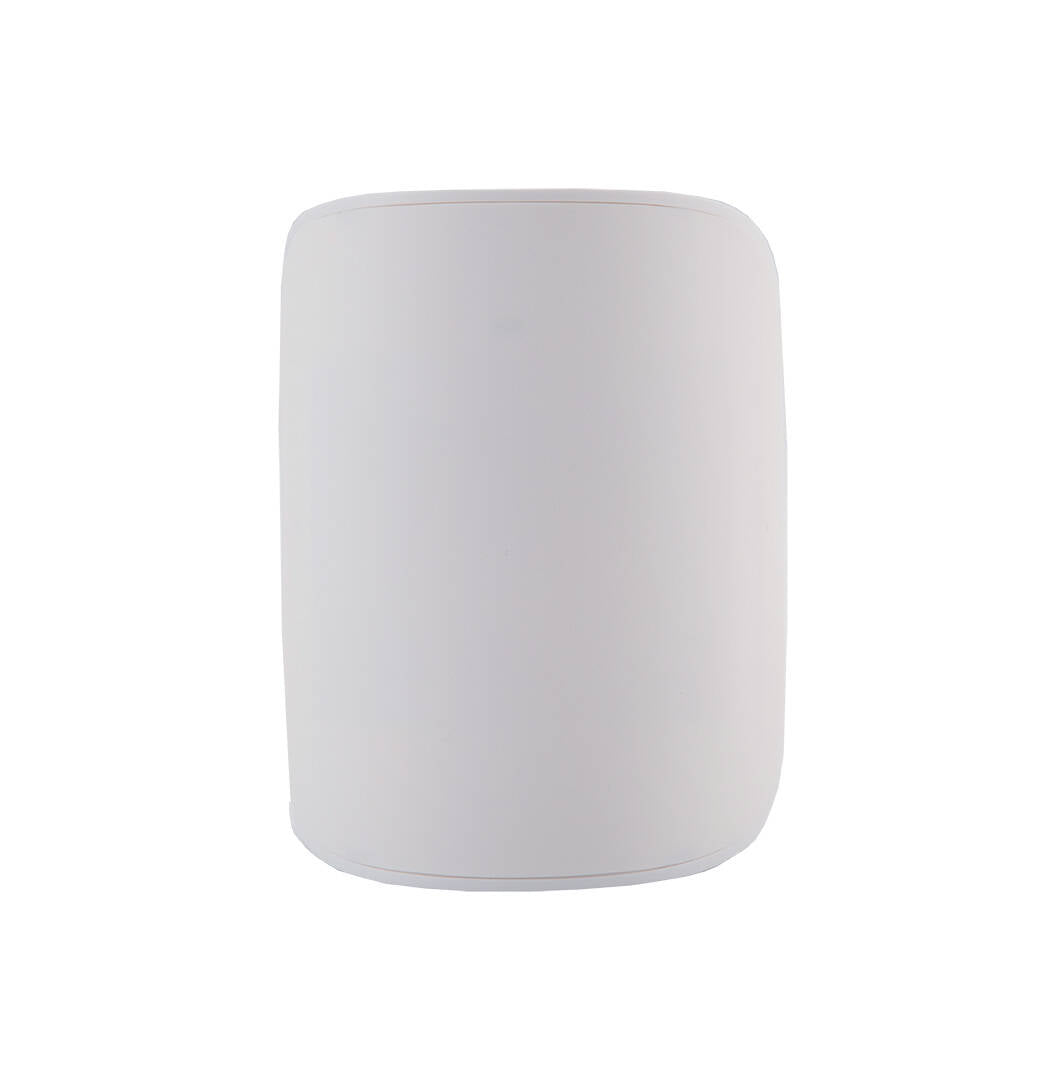

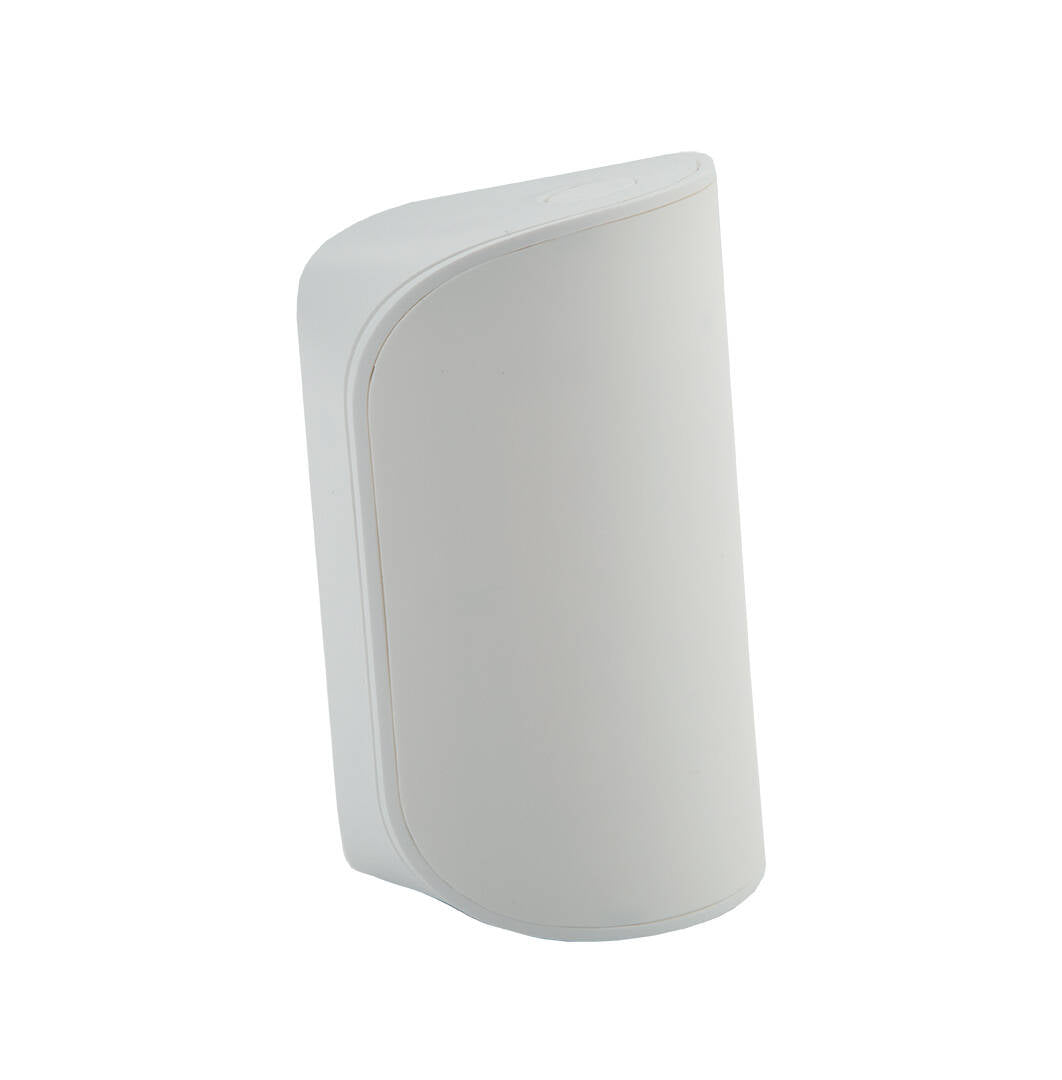

Ecolink Wireless PIR Motion Sensor 345Mhz Honeywell and 2Gig, 85 lbs Overview
Designed with the installer in mind, Ecolink improved form factor motion detector offers an easy, out-of-the-box experience to reduce your install time. The WST-742 PIR Motion Detector mounts easily to walls or corners and is simple to maintain with convenient battery power.
All security systems should have a few Motion Detectors installed throughout the house and Ecolink's new WST-742 wireless 345 MHz PIR motion detector was designed with a smooth rounded front finish and hidden lens that blends with any interior décor. With uncompromised detection capabilities and Pet Immunity Processing, up to 85 lbs., the Ecolink Wireless Motion Detector offers reliable, false-alarm-free protection.
Compatible with Honeywell and 2GIG® security panels, no other PIR can perform at this level at this price point.
Ecolink Wireless PIR Motion Sensor Features
- Create scenes to turn on lights or adjust room temperature
- Pet immunity up to 85 lbs. reduces false alarms
- High-performing capture algorithm and Fresnel lens pattern
- Adjustable sensitivity levels - Normal & High
- Designed with a smooth rounded front finish and hidden lens mounts easily to walls or corners and blends easily with any interior
- Wide coverage pattern, 40' X 40’ 5-year battery life with an easily replaceable CR-123 battery
Ecolink Wireless PIR Motion Sensor Specifications
- Model
- Commercial name: WST-742
- Product Dimensions CM (LxWxH): 8.89x6.68
- Product Dimensions INCH (LxWxH): 3.50x2.63x0.00
- Usability Features
- Platform: Sub-GHz
- RF Range(LoS): up to 500 feet
- Radio/SOC: MAX7044
- Pet immunity (max): 38.55 kg
- Pet immunity (max): 85 lbs
- Supervisory Interval (approx.): 60 minutes
- Coverage Area: 40 feet by 40 feet, 90° angle
- Light immunity: 2000 lux
- Technical specifications
- Frequency: 345MHz
- Software Compatibility: Honeywell, 2GIG receivers
- Compatible Panels: Honeywell Lynx Touch 5200, Honeywell Lynx Touch 7000, Honeywell Vista-20P, Honeywell Vista- 128BPT, Honeywell Tuxedo Touch, 2GIG Edge, 2GIG GC3e, 2GIG GC2e, 2GIG GC3, 2GIG GC2
- Operating temperature: 0-49 °C
- Operating temperature: 32-120 °F
- Operating Humidity: 5-95% RH non-condensing
- Battery Type: 3V Lithium CR123A
- Battery Qty: 1
- Battery Life Expectancy: 60 months
- Logistical Information Master Dimensions INCH (LxWxH): 0.00x0.00x0.00
- Compliances FCC ID:
- XQC-WST742 IC
- ID: 9863B-WST742
Technical Specifications
Ecolink Wireless PIR Motion Sensor 345Mhz Honeywell and 2Gig, 85 lbs Overview
Designed with the installer in mind, Ecolink improved form factor motion detector offers an easy, out-of-the-box experience to reduce your install time. The WST-742 PIR Motion Detector mounts easily to walls or corners and is simple to maintain with convenient battery power.
All security systems should have a few Motion Detectors installed throughout the house and Ecolink's new WST-742 wireless 345 MHz PIR motion detector was designed with a smooth rounded front finish and hidden lens that blends with any interior décor. With uncompromised detection capabilities and Pet Immunity Processing, up to 85 lbs., the Ecolink Wireless Motion Detector offers reliable, false-alarm-free protection.
Compatible with Honeywell and 2GIG® security panels, no other PIR can perform at this level at this price point.
Ecolink Wireless PIR Motion Sensor Features
- Create scenes to turn on lights or adjust room temperature
- Pet immunity up to 85 lbs. reduces false alarms
- High-performing capture algorithm and Fresnel lens pattern
- Adjustable sensitivity levels - Normal & High
- Designed with a smooth rounded front finish and hidden lens mounts easily to walls or corners and blends easily with any interior
- Wide coverage pattern, 40' X 40’ 5-year battery life with an easily replaceable CR-123 battery
Ecolink Wireless PIR Motion Sensor Specifications
- Model
- Commercial name: WST-742
- Product Dimensions CM (LxWxH): 8.89x6.68
- Product Dimensions INCH (LxWxH): 3.50x2.63x0.00
- Usability Features
- Platform: Sub-GHz
- RF Range(LoS): up to 500 feet
- Radio/SOC: MAX7044
- Pet immunity (max): 38.55 kg
- Pet immunity (max): 85 lbs
- Supervisory Interval (approx.): 60 minutes
- Coverage Area: 40 feet by 40 feet, 90° angle
- Light immunity: 2000 lux
- Technical specifications
- Frequency: 345MHz
- Software Compatibility: Honeywell, 2GIG receivers
- Compatible Panels: Honeywell Lynx Touch 5200, Honeywell Lynx Touch 7000, Honeywell Vista-20P, Honeywell Vista- 128BPT, Honeywell Tuxedo Touch, 2GIG Edge, 2GIG GC3e, 2GIG GC2e, 2GIG GC3, 2GIG GC2
- Operating temperature: 0-49 °C
- Operating temperature: 32-120 °F
- Operating Humidity: 5-95% RH non-condensing
- Battery Type: 3V Lithium CR123A
- Battery Qty: 1
- Battery Life Expectancy: 60 months
- Logistical Information Master Dimensions INCH (LxWxH): 0.00x0.00x0.00
- Compliances FCC ID:
- XQC-WST742 IC
- ID: 9863B-WST742
