About the product

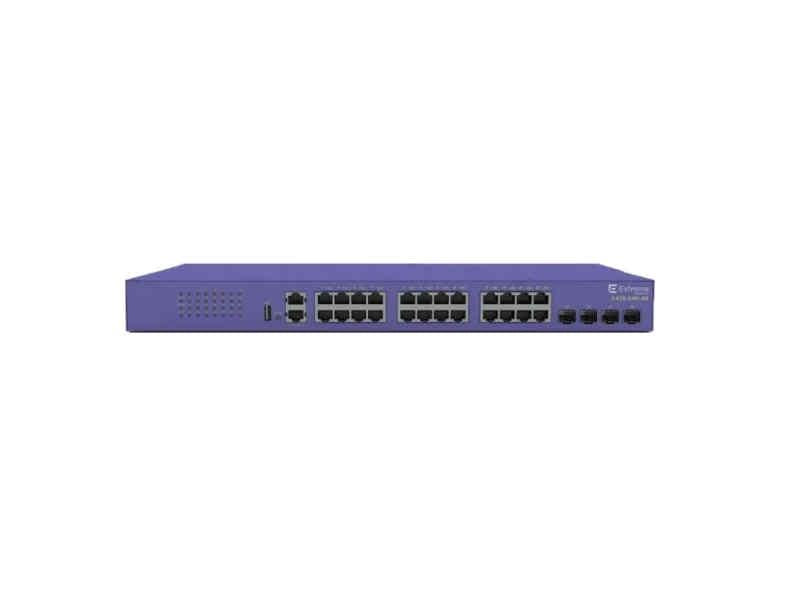

The X435 Series are economical, standalone Ethernet switches designed for enterprises looking for a value-based edge solution. Powered by one of Extremes flagship operating systems, ExtremeXOS, X435 models deliver comprehensive Layer 2 switching, static routing, superior PoE capabilities, role-based policy, and advanced security services. This makes these switches ideal for enterprises looking for secure and cost-effective Ethernet connectivity in their branch/small sites or at their network edge.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | X435 Series |
| Form Factor: | 1RU |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 2.5 Gbps |
| Networking / Ports Qty: | 31 |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Type: | AMD A9-Series |
| RAM / Total Installed Size: | 512 MB |
| Flash Memory / Installed Size: | 128 MB |
| Networking Compliant Standards: | IEEE 802.3bz 2.5GBASE-X; IEEE 802.3ab 1000BASE-T; IEEE 802.3at PoE Plus; IEEE 802.3bt Type 3 PoE; IEEE 802.3az Energy Efficient Etherne |
| Power / Device Type: | Power Supply |
| Media Layer Supported: | Layer 2 |
| Power / Installed Qty: | 1 |
| Uplink Port: | 4 x 100M/1/2.5GBASE-X SFP uplink ports (unpopulated) |
| Max Power Consumption: | 449.8 Watt |
| Network | |
| Power Over Ethernet (PoE) Support: | YES |
| PoE Power Consumption: | 370W |
| MAC Address Table Size: | 16K |
| Jumbo Frame Support: | 9216 Byte |
| Remote Management Protocol: | VLAN; IPv6; IPv4 |
| Routing Protocol: | IPv4, IPv6 |
| 10/100/1000BASE-T Ports: | 25 |
| SFP Ports: | 4 |
| Interfaces: | 24 x 10/100/1000BASE-T 802.3at (30W) PoE ports;4 x 100M/1/2.5GBASE-X SFP uplink ports(unpopulated);1 x Serial (console port RJ-45);1 x 10/100/1000BASE-T out-of-band management port;1 x USB A port for external USB flash |
| Interfaces / Ports | |
| Interfaces: | 24 x 10/100/1000BASE-T 802.3at (30W) PoE ports;4 x 100M/1/2.5GBASE-X SFP uplink ports(unpopulated);1 x Serial (console port RJ-45);1 x 10/100/1000BASE-T out-of-band management port;1 x USB A port for external USB flash |
| 10/100/1000BASE-T Ports: | 25 |
| SFP Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 17.4 Inch |
| Depth: | 10 Inch |
| Height: | 1.73 Inch |
| Weight: | 3.48 Kg |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 45 Celsius |
| Min Storage Temperature: | -40 Celsius |
| Max Storage Temperature: | 70 Celsius |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
