Extreme Networks Extremeswitching X435-8P-4S - Switch - 8 Ports -

Name: Extreme Networks Extremeswitching X435-8P-4S - Switch - 8 Ports -
Brand: Extreme
SKU: T331963
Price: 1838.88 CAD
Availability: InStock

$1,838.88 CAD

~~$2,022.77 CAD~~ $1,838.88 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

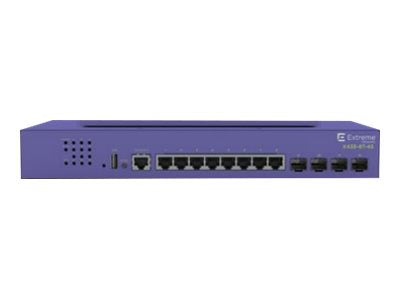

Extreme Networks Extremeswitching X435-8P-4S - Switch - 8 Ports - Managed - Rack-Mountable

VPN:X435-8P-4S SKU:T331963 UPC:644728046058

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Extreme Networks Extremeswitching X435-8P-4S - Switch - 8 Ports -

About the product

The ExtremeSwitching X435 Series are standalone Ethernet switches suited to the needs of cost-conscious enterprises looking for a value-based edge solution. Powered by Extreme Networks ExtremeXOS, the X435 Series offers comprehensive Layer 2 switching, static routing, advanced PoE, role-based policy and comprehensive security services. This makes it ideal for enterprises looking for cost-effective Ethernet connectivity in their branch/small sites or at their network edge.

Technical Specifications

Primary Information
Product Description:	Extreme Networks ExtremeSwitching X435-8P-4S - switch - 8 ports - managed - rack-mountable
Device Type:	Switch - 8 ports - managed
Enclosure Type:	Rack-mountable 1U
Subtype:	Gigabit Ethernet
Ports:	8 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink)
Power Over Ethernet (PoE):	PoE+
PoE Budget:	124 W
Performance:	Aggregate switching bandwidth: 36 Gbps ¦ Forwarding rate: 26.8 Mpps
Capacity:	VLANs supported: 4096 ¦ Longest prefix match (LPM) entries (IPv4): 32 ¦ IPv4 hosts: 3100 ¦ Longest prefix match (LPM) entries (IPv6): 16 ¦ IPv6 hosts: 500 ¦ IP multicast groups: 64 ¦ IP multicast entries: 1500 ¦ Port queues: 8 ¦ ACL entries (ingress): 1000 ¦ Policy profiles: 63
MAC Address Table Size:	16K entries
Jumbo Frame Support:	9216 bytes
Routing Protocol:	Static IP routing
Features:	Layer 2 switching, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet
Compliant Standards:	IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt
Power:	AC 120/230 V (50/60 Hz)
Dimensions (WxDxH):	12.6 in x 7.9 in x 1.7 in
Weight:	4.85 lbs
Manufacturer Warranty:	Limited lifetime warranty
General
Device Type:	Switch - 8 ports - managed
Enclosure Type:	Rack-mountable 1U
Subtype:	Gigabit Ethernet
Ports:	8 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink)
Power Over Ethernet (PoE):	PoE+
PoE Budget:	124 W
Performance:	Aggregate switching bandwidth: 36 Gbps ¦ Forwarding rate: 26.8 Mpps
Capacity:	VLANs supported: 4096 ¦ Longest prefix match (LPM) entries (IPv4): 32 ¦ IPv4 hosts: 3100 ¦ Longest prefix match (LPM) entries (IPv6): 16 ¦ IPv6 hosts: 500 ¦ IP multicast groups: 64 ¦ IP multicast entries: 1500 ¦ Port queues: 8 ¦ ACL entries (ingress): 1000 ¦ Policy profiles: 63
MAC Address Table Size:	16K entries
Jumbo Frame Support:	9216 bytes
Routing Protocol:	Static IP routing
Features:	Layer 2 switching, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet
Compliant Standards:	IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt
Processor:	1 x ARM A9
RAM:	512 MB
Flash Memory:	128 MB
Expansion / Connectivity
Interfaces:	8 x 1000Base-T RJ-45 PoE+ ¦ 4 x 1/2.5GBase-X SFP ¦ 1 x serial (console) RJ-45 ¦ 1 x USB Type A
Power
Power Device:	Internal power supply
Installed Qty:	1
Voltage Required:	AC 120/230 V (50/60 Hz)
Power Consumption Stand by:	155.2 Watt
Miscellaneous
Rack Mounting Kit:	Included
Compliant Standards:	BSMI, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, SABS, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, CDRH, VCCI Class A, EAC, GB 9254, EN 300 386 V1.6.1, RoHS 2011/65/EU, EN 6100-4-2, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, EMC 2014/30/EU, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, GB 4943.1-2011, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, NRCS, EN/ETSI 300 753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, EN 6100-3-3:2013, China RoHS SJ/T 11363-2006, RoHS CNS 15663, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, FCC CFR21 Part 1040.10, EN 6100-3-2:2014, AS/NZS CISPR 32
Software / System Requirements
Software Included:	ExtremeXOS Value Edge
Dimensions & Weight
Width:	12.6 in
Depth:	7.9 in
Height:	1.7 in
Weight:	4.85 lbs
