Extreme Networks Extremeswitching X465 Series X465-48W - Bundle -

Name: Extreme Networks Extremeswitching X465 Series X465-48W - Bundle -
Brand: Extreme
SKU: T679616
Price: 21756.96 CAD
Availability: InStock

$21,756.96 CAD

~~$23,932.66 CAD~~ $21,756.96 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

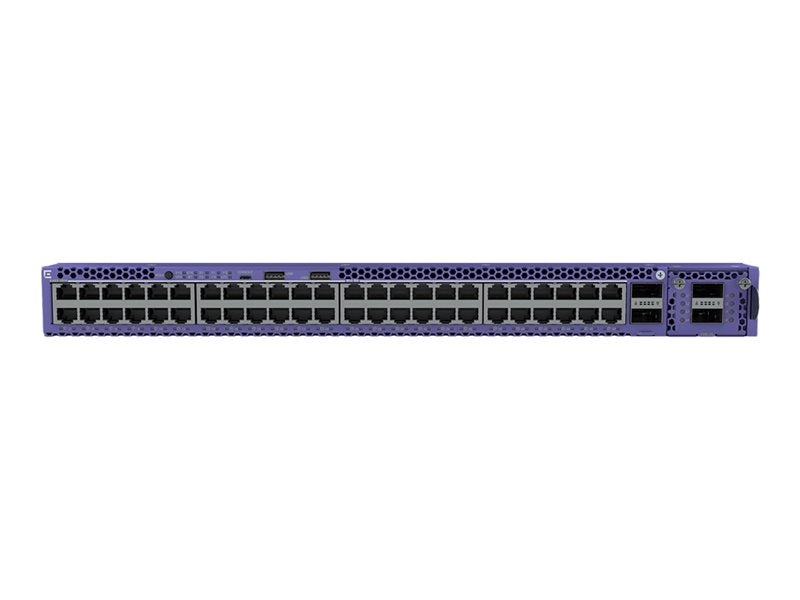

Extreme Networks Extremeswitching X465 Series X465-48W - Bundle - Switch - 48 Ports - Managed - Rack-Mountable

VPN:X465-48W SKU:T679616 UPC:644728042630

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Extreme Networks Extremeswitching X465 Series X465-48W - Bundle -

About the product

The ExtremeSwitching X465 Series is a premium stackable switch family providing high-performance, convergence-ready, resilient and secure Ethernet connectivity. Powered by ExtremeXOS, the X465 Series offers sophisticated routing and switching, high-speed stacking, modular uplink options, advanced PoE, and comprehensive security. This makes the X465 Series an ideal choice for high-end wiring closet and network edge deployments.

Technical Specifications

Primary Information
Product Description:	Extreme Networks ExtremeSwitching X465 Series X465-48W - Bundle - switch - 48 ports - managed - rack-mountable
Device Type:	Switch - 48 ports - L3 - managed - stackable
Enclosure Type:	Rack-mountable 1U
Subtype:	Gigabit Ethernet
Ports:	48 x 10/100/1000 (UPOE) + 2 x 40 Gigabit QSFP+ (stacking)
Power Over Ethernet (PoE):	UPOE
PoE Budget:	815 W
Performance:	Aggregate switching bandwidth: 364 Gbps ¦ Stacking bandwidth: 270.8 Mpps
MAC Address Table Size:	272K entries
Jumbo Frame Support:	9216 bytes
Routing Protocol:	OSPF, RIP, BGP, PIM-SM, static IPv4 routing, static IPv6 routing, MPLS
Remote Management Protocol:	CLI
Features:	Half duplex mode, full duplex mode, MACsec support, 2 fans, VPLS, VTEP support, PFC, flexible UFT, Insight Architecture ready
Compliant Standards:	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, ITU-T Y.1731, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt
Power Redundancy:	Optional
Dimensions (WxDxH):	17.3 in x 19.2 in x 1.7 in
Weight:	18.47 lbs
Manufacturer Warranty:	Limited lifetime warranty
General
Device Type:	Switch - 48 ports - L3 - managed - stackable
Enclosure Type:	Rack-mountable 1U
Subtype:	Gigabit Ethernet
Ports:	48 x 10/100/1000 (UPOE) + 2 x 40 Gigabit QSFP+ (stacking)
Power Over Ethernet (PoE):	UPOE
PoE Budget:	815 W
Performance:	Aggregate switching bandwidth: 364 Gbps ¦ Stacking bandwidth: 270.8 Mpps
MAC Address Table Size:	272K entries
Jumbo Frame Support:	9216 bytes
Max Units In A Stack:	8
Routing Protocol:	OSPF, RIP, BGP, PIM-SM, static IPv4 routing, static IPv6 routing, MPLS
Remote Management Protocol:	CLI
Encryption Algorithm:	128-bit AES, 256-bit AES
Features:	Half duplex mode, full duplex mode, MACsec support, 2 fans, VPLS, VTEP support, PFC, flexible UFT, Insight Architecture ready
Compliant Standards:	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, ITU-T Y.1731, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt
RAM:	2 GB
Built-in Devices:	8GB eMMC
Status Indicators:	Status
Expansion / Connectivity
Interfaces:	48 x 1000Base-T RJ-45 UPOE - 90 W ¦ 2 x 40GBase-X QSFP+ stacking ¦ 1 x serial (console) RJ-45 management ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console (micro-USB) Type B ¦ 2 x USB Type A
Expansion Slots:	1 (total) / 1 (free) x expansion slot
Power
Power Device:	Internal power supply - hot-plug
Max Supported Qty:	2
Power Redundancy:	Optional
Miscellaneous
Rack Mounting Kit:	Included
Compliant Standards:	BSMI, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, SABS, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, EN 6100-3-2, CDRH, VCCI Class A, EAC, EN 300 386 V1.6.1, RoHS 2011/65/EU, EN 6100-4-2, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, FCC CFR47 Part 15 A, LVD 2014/35/EU, GB 4943.1-2011, EN 6100-3-3, Directive 2014/30/EU, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, NRCS, EN/ETSI 300 753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, China RoHS SJ/T 11363-2006, RoHS CNS 15663, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, FCC CFR21 Part 1040.10, AS/NZS CISPR 32, GB/T9254-2008, CAN/CSA-C22.2 No. 62368-1-14
Software / System Requirements
Software Included:	ExtremeWare XOS Advanced Edge
Dimensions & Weight
Width:	17.3 in
Depth:	19.2 in
Height:	1.7 in
Weight:	18.47 lbs
