About the product
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. \n\n New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security
\nInstaller-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.Supports 100 (2540 mm) displaysSustains a maximum load capacity of 250 lb (113398.09 g)
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | UL |
| Country of Origin | China |
| Physical Characteristics | |
| Height | 26.25" (666.75 mm) |
| Width | 42.75" (1085.85 mm) |
| Depth | 2.25" (57.15 mm) |
| Mounting Pattern | 1070 x 600 |
| 100 x 100 | |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Wall Mount |
| Manufacturer Part Number | XSM1U |
| Manufacturer Website Address | http://www.legrand.com |
| Manufacturer | Legrand Group |
| Product Model | XSM1U |

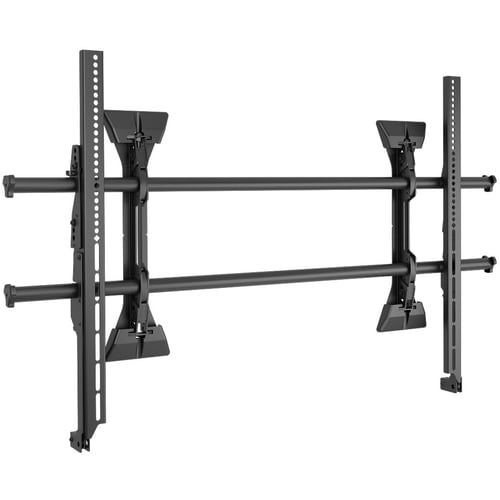

| Product Name | X-Large Fusion Micro-Adjustable Fixed Wall Display Mount |
| Product Line | Fusion Wall Fixed |
| Brand Name | Chief |
| Product Information | |
| Device Supported | Flat Panel Display |
| Features | Lateral Adjustment |
| Cable Management | |
| Flexible | |
| Leveling System | |
| Maximum Load Capacity | 250 lb (113398.09 g) |
| Minimum Screen Size Supported | 55" (1397 mm) |
| Maximum Screen Size Supported | 100" (2540 mm) |
| Number of Displays Supported | 1 |
| Height Adjustable | Yes |
