About the product

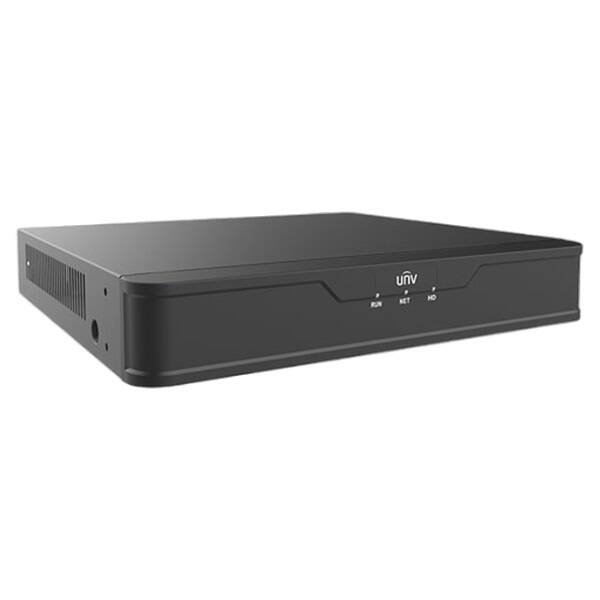

The XVR301-08Q3 Uniview 8 Channel DVR, XVR is a professional Digital Video Recorder with 8 BNC Inputs plus 4 IP Channels for a total of 12 Channel Operations.
Uniview 8 Channel Hybrid DVR and Encoder for TVI, AHD, CVI, CVBS, IP, 1 SATA Bay Features:
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocol
Uniview 8 Channel Hybrid DVR and Encoder for TVI, AHD, CVI, CVBS, IP, 1 SATA Bay Specifications:
Model: XVR301-08Q3
Video/Audio Input
- Analog Video Input: 8-ch, BNC
- IP Video Input: 4-ch(only IP up to 12ch), each channel up to 8MP
- Audio Input: 1-ch, RCA
- Audio Compression: G.711U
Video/Audio Output
- CVBS Output 1-ch, BNC
- VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI Output
- 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
- Audio Output 1-ch, RCA
- Synchronous Playback: 8
- Live view display HDMI/VGA: 1/4/6/8/9/16
- Two-way Audio 1-ch, RCA
Network
- Incoming Bandwidth: 40Mbps (Up to 56Mbps after all-analog channel conversion)
- Outgoing Bandwidth: 64Mbps
- Remote Users: 128
- Protocols TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
- Browser:
- IE(IE10/11) for Windows
- Firefox (version 52.0 and above) for Windows
- Chrome(version 45 and above) for Windows
- Edge(version 79 and above) for Windows
- Encoding
- Recording Resolution: 8MP Lite/5MP/5MP Lite/4MP Lite /1080P/720P/CIF
- Recording
- Main stream: 8MP Lite@8fps D1@8fps 8MP Lite@8fps
- Substream: D1@8fps
- Frame Rate:
- 5MP Lite @12fps D1@12fps 5MP Lite @12fps D1@12fps
- 4MP Lite@15fps D1@15fps 4MP Lite@15fps D1@15fps
- 1080P@15fps D1@15fps 1080P@15fps D1@15fps
- 720p@30fps D1@30fps 720p@30fps D1@30fps
- Audio Sample Rate: 8KHz,16 bit per channel
- Audio Bit Rate 64Kbps per channel
Decoding
- Capability Analog: 8 x 8MP Lite@8, 8x 5MP Lite@12, 8x 4MPLite@15, 8x 1080P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
- Hard Disk
- SATA: 1 SATA interface
- Capacity: Up to 8TB for each HDD
General Alarm
- General Alarm: Motion detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
- Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface Rear panel: 2 x USB2.0
- RS485 1
- Alarm In 4-ch
- Alarm Out 1-ch
General
- Power Supply: 12V DC
- Power Consumption: ? 10 W( without HDD )
- Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
- Dimensions(W×D×H): 260mm ×226mm× 47mm (10.2"" × 8.9""×1.8"")
- Weight( without HDD ): ?1.1 Kg ( 2.42lb )
- Certification: UL /CE /FCC /RoHS /WE
Technical Specifications
The XVR301-08Q3 Uniview 8 Channel DVR, XVR is a professional Digital Video Recorder with 8 BNC Inputs plus 4 IP Channels for a total of 12 Channel Operations.
Uniview 8 Channel Hybrid DVR and Encoder for TVI, AHD, CVI, CVBS, IP, 1 SATA Bay Features:
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocol
Uniview 8 Channel Hybrid DVR and Encoder for TVI, AHD, CVI, CVBS, IP, 1 SATA Bay Specifications:
Model: XVR301-08Q3
Video/Audio Input
- Analog Video Input: 8-ch, BNC
- IP Video Input: 4-ch(only IP up to 12ch), each channel up to 8MP
- Audio Input: 1-ch, RCA
- Audio Compression: G.711U
Video/Audio Output
- CVBS Output 1-ch, BNC
- VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI Output
- 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
- Audio Output 1-ch, RCA
- Synchronous Playback: 8
- Live view display HDMI/VGA: 1/4/6/8/9/16
- Two-way Audio 1-ch, RCA
Network
- Incoming Bandwidth: 40Mbps (Up to 56Mbps after all-analog channel conversion)
- Outgoing Bandwidth: 64Mbps
- Remote Users: 128
- Protocols TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
- Browser:
- IE(IE10/11) for Windows
- Firefox (version 52.0 and above) for Windows
- Chrome(version 45 and above) for Windows
- Edge(version 79 and above) for Windows
- Encoding
- Recording Resolution: 8MP Lite/5MP/5MP Lite/4MP Lite /1080P/720P/CIF
- Recording
- Main stream: 8MP Lite@8fps D1@8fps 8MP Lite@8fps
- Substream: D1@8fps
- Frame Rate:
- 5MP Lite @12fps D1@12fps 5MP Lite @12fps D1@12fps
- 4MP Lite@15fps D1@15fps 4MP Lite@15fps D1@15fps
- 1080P@15fps D1@15fps 1080P@15fps D1@15fps
- 720p@30fps D1@30fps 720p@30fps D1@30fps
- Audio Sample Rate: 8KHz,16 bit per channel
- Audio Bit Rate 64Kbps per channel
Decoding
- Capability Analog: 8 x 8MP Lite@8, 8x 5MP Lite@12, 8x 4MPLite@15, 8x 1080P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
- Hard Disk
- SATA: 1 SATA interface
- Capacity: Up to 8TB for each HDD
General Alarm
- General Alarm: Motion detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
- Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface Rear panel: 2 x USB2.0
- RS485 1
- Alarm In 4-ch
- Alarm Out 1-ch
General
- Power Supply: 12V DC
- Power Consumption: ? 10 W( without HDD )
- Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
- Dimensions(W×D×H): 260mm ×226mm× 47mm (10.2"" × 8.9""×1.8"")
- Weight( without HDD ): ?1.1 Kg ( 2.42lb )
- Certification: UL /CE /FCC /RoHS /WE
