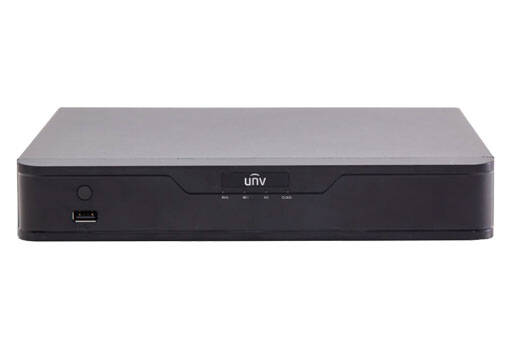

Uniview 16 Channel Encoder/Hybrid NVR for AHD/ TVI/CVI/CVBS/IP 16 BNC
Visit Aartech's Uniview Resource Page for selection guides, design tools, accessories guides, support information, and more.
BEST WARRANTY
Uniview UNV DVRs and NVRs purchased through Aartech Canada come with a 3-year exchange warranty. Advanced replacement is available for Aartech gold and platinum dealers. Warranty and return details may be found here.
Uniview 16 Channel Encoder/Hybrid NVR Features
- Support TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
- Support audio over coaxial cable
- 8/16-channel BNC input
- Up to 4K resolution for recording
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- The long transmission distance over coaxial cable
Uniview 16 Channel Encoder/Hybrid NVR Specifications
- Video/Audio Input
- Analog Video Input: 16-ch, BNC
- IP Video Input: 8-ch(only IP up to 24ch), each channel up to 4K
- Supported Analog Camera Types: Support AHD input: 8MP@15fps(channel1-channel4)
- 5MP@20fps
- 4MP@30fps
- 3MP@30fps(channel1-channel4)
- 1080P@30fps
- 720P@60fps
- Support TVI input: 8MP@15fps(channel1-channel4)
- 5MP@20fps
- 4MP@30fps
- 3MP@20fps(channel1-channel4)
- 1080P@30fps
- 720P@60fps
- Support CVI input: 8MP@15fps(channel1-channel4)
- 4MP@30fps
- 1080P@30fps
- 720P@60fps
- Support CVBS input
- Audio Input: 1-ch, RCA
- Two-way Audio: 1-ch, RCA
- Network
- Incoming Bandwidth: 72Mbps
- Outgoing Bandwidth: 80Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
- Video/Audio Output
- CVBS Output: 1-ch, BNC
- VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Audio Output: 1-ch, RCA
- Synchronous Playback: 16-ch
- Encoding
- Recording Resolution: 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
- Recording Frame Rate:
- Main stream:
- 8MP Lite@8fps(channel1-channel4)
- 5MP Lite@12fps
- 4MP Lite@15fps
- 3MP@15fps(channel1-channel4)
- 2MP@15fps
- 720P@30fps
- Sub stream: D1@30fps(Max)
- Main stream:
- Hard Disk
- SATA: 2 SATA interfaces
- Capacity: up to 6TB for each HDD
- External Interface
- Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Interface: Rear panel: 1 x USB3.0, Front panel: 1xUSB2.0
- Serial Interface: 1 x RS485
- General
- Power Supply:
- 12V DC
- Power Consumption: ? 12 W( without HDD )
- Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ? 90% RH (non-condensing)
- Dimensions(W×D×H): 380mm ×315mm× 53mm (15"" × 12.4""×2.1"")
- Weight ( without HDD ): ?1.9 Kg ( 4.19lb )
- Power Supply:
