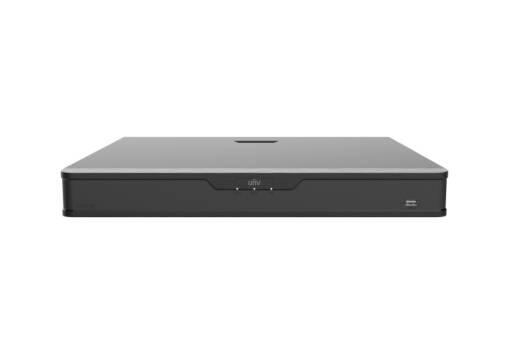

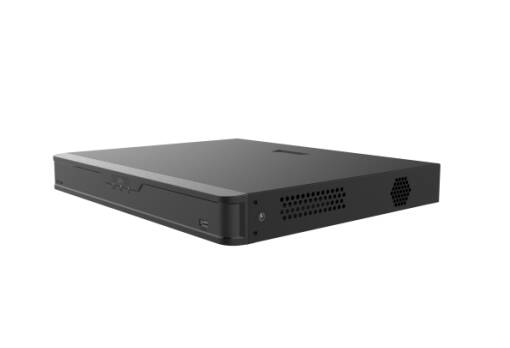

Uniview 32 Channel Hybrid NVR for AHD/ TVI/CVI/CVBS/IP 32 BNC (XVR302-32Q3)

Uniview 32 Channel Hybrid NVR for AHD/ TVI/CVI/CVBS/IP 32 BNC (XVR302-32Q3)

$527.99 CAD
$591.99 CAD $527.99 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.

Uniview 32 Channel Hybrid NVR for AHD/ TVI/CVI/CVBS/IP 32 BNC (XVR302-32Q3)

VPN:XVR302-32Q3      SKU:AT375553      UPC:810093329915

Volume discount available - Ask for quote..

View full details

Recently Viewed

Uniview 32 Channel Hybrid NVR for AHD/ TVI/CVI/CVBS/IP 32 BNC (XVR302-32Q3)

Product information summary

Uniview 32 Channel Hybrid NVR for AHD/ TVI/CVI/CVBS/IP 32 BNC (XVR302-32Q3)

About the product

XVR302-32Q3 Digital Video Recorder Features:

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(only for Uniview CVI protocol cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 32-channel BNC input
  • Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
  • HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols

 XVR302-32Q3 Digital Video Recorder Specifications:

  • Video/Audio Input
    • IP Video Input    4-ch
    • Analog Video Input    32-ch, BNC
    • Max IP Video Input    36-ch
    • Supported Analog Camera Types
      • Support AHD input:
      • 8MP@15fps
      • 5MP@20fps
      • 4MP@30fps
      • 1080P@30fps
      • 720P@30fps
      • Support TVI input:
      • 8MP@15fps
      • 5MP@20fps
      • 4MP@30fps
      • 1080P@30fps
      • 720P@30fps
      • Support CVI input:
      • 8MP@15fps
      • 5MP@25fps
      • 4MP@30fps
      • 1080P@30fps
      • 720P@30fps
      • Support CVBS input
    • BNC Audio Input    32-ch, channel audio
    • RCA Audio Input    1-ch
  • Video/Audio Output
    • HDMI Output    HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    • VGA Output    VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    • BNC Video Output    1-ch
    • RCA Audio Output    1-ch
    • Live View Display    HDMI/VGA: 1/4/6/8/9/25/36
  • Encoding/Decoding
    • Recording Resolution    8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1
    • Recording Frame Rate
      • Main stream: 8MP Lite@8fps  Sub stream: D1@8fps
      • Main stream: 5MP Lite@12fps  Sub stream: D1@12fps
      • Main stream: 4MP Lite@15fps  Sub stream: D1@15fps
      • Main stream: 1080P@15fps  Sub stream: D1@15fps
      • Main stream: 720P@30fps Sub stream: D1@30fps
    • Audio Sample Rate    8KHz,16 bit per channel
    • Audio Bit Rate    64Kbps per channel
    • Decoding Capability    Analog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 16 x 720P@30, 8 x 1080P@30, 4 x 4MP@30, 2 x 8MP@30
    • Num of Concurrent Playback in Local    16-ch
  • Coaxial Cable
    • Audio over Coaxial Cable(Form)    32-ch, One-way Audio(only for Uniview CVI protocol cameras)
  • Two-way Audio    1-ch, RCA(Using the audio input and output)
  • Analog Snapshot
    • FTP/Schedule/Event Snapshot    Schedule/FTP/Event snapshot:32-ch snapshot, up to 704*576 resolution
  • Network
    • Incoming Bandwidth    80Mbps (Up to 144Mbps after all analog channel conversion)
    • Outgoing Bandwidth    160Mbps
    • Remote Users    128
    • Protocols    TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP
    • Browser(Plugin)    Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
  • Smart
    • Analog Smart by XVR    Ultra Motion Detection(UMD)
    • IP Smart by IPC    Face Detection;Defocus Detection;Scene Change Detection;Object Removed;Object Left Behind;Auto Tracking
    • VCA Search    Face Search;Behavior Search
    • Smart Functions by XVR    16-ch(UMD)
  • Alarm
    • General Alarm    Motion
    • Alert Alarm    IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
  • Hard Disk
    • SATA    2 SATA interfaces
    • Capacity    Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
  • External Interface
    • Network Interface    1 RJ45 10M/100M/1000M  self-adaptive Ethernet Interface
    • USB    Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0
    • RS485    1
    • Alarm In    4-ch
    • Alarm Out    1-ch
    • Power Supply    DC 12V/5A
  • Working Environment
    • Working Temperature    -10°C ~ + 55°C ( +14°F ~ +131°F )
    • Working Humidity    ? 90% RH(non-condensing)
    • Power Consumption (without HDD)    ? 38W
  • Dimensions
    • Weight (without HDD)    ?2.6 Kg ( 5.72lb )
    • Dimensions    380mm ×326mm× 53mm (15.0"" × 12.8""×2.1"")
  • Certification
    • Certification    CE, FCC, UL, RoHS, WEEE
    • CE    EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
    • FCC    Part15 Subpart B
