About the product

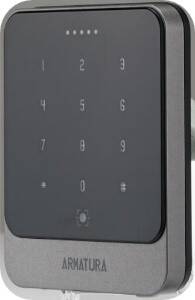

The ZKTeco Outdoor Multi-tech Smart Reader provides convenient key fob, Bluetooth, QR-code or PIN-based access control options to traditional access control systems.
The AMT-EP20CKQ-LHF is compatible with 125KHz (compatbile with EM, HID and more) and 13.56 MHz proximity RFID cards, including MF Classic, Mini S50/70, MF Classic EV1, MF DESFire EV1, iClass, and more. With over 100 RFID card types as well as NFC and Bluetooth options, customers have a wide variety of access control options that suit their needs.
IP68 water and dustproofing allows for year-round indoor or outdoor installation. Additional IK07 impact resistance prevents damage from trespassers looking to cause trouble.
Single-gang installation. App for Credentials is Armatura ID and will work with AMT-BT-CARD Bluetooth Credentials only.
AMT-EP20CKQ-LHF Specs and Features
- Operating Frequency / Standards: 125 kHz; 13.56 MHz: ISO14443A types A & B, ISO15693; 2.4 GHz Bluetooth
- Fuctions: RFID, Bluetooth and QR code
- Keypad: Touchscreen
- QR Code Scanner: Yes
- QR Code Scanning Pattern: Area image (648*488 pixel array)
- QR Code Scan Angle: Horizontal: 66°/ Vertical: 50°
- QR Code Scanning Print Contrast: Print Contrast: 25% minimum reflectance difference; Rotation, Pitch, Skew: 360°, +/-40°, +/-60°
- QR Code Capability:
- One-dimensional Code: UPC-A , UPC-E, UPC-E1, EAN-8, EAN-13,EAN-14, EAN-128, UCC128, ISBN/ISSN, CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93, CODE128, Interleaved 2 of 5 code, Industrial 2 of 5 code,Matrix 2 of 5 code, Toshiba code, UK/Plessey, GS1
- Two Code: QR code, PDF417, Data matrix, MicroPDF417, Aztec
- QR Code Scanning Performance: Depth of Field, 2.0""-3.1"" (5cm-8cm), 2.0""-4.7"" (5cm-12cm), 2.3""-7.7"" (6cm-19.5cm), 2.3""-9.8"" (6cm-25cm), 2.0""-2.3"" (5cm-6cm), 2.0""-3.5"" (5cm-9cm), 2.0""-6.3"" (5cm-16cm), 2.3""-7.9"" (6cm-20cm)
- Communications & Panel Connection: Wiegand (Up to 128bits SCP Secure Communication), OSDP (v2.2) via RS485
- Reading Distance: 13.56MHz & 125kHz: Up to 2.3""/60 mm (depending on environment and transponder); Up to 393.7""/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
- Data Protection: AES128 (Secured Communication between Reader & Controller); Secure Data Storage in EAL 5+ Certified Crypto Chip
- Visual Indicator: RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)
- Audio Indicator: Internal buzzer with adjustable intensity, (Configurable By 'Armatura Connect' Mobile APP)
- Power Requirement / Power Supply: 9 VDC to 24 VDC
- Operating Temperature: -22°F - 158°F /-30°C to 70°C
- Dimensions: 3.54"" W x 4.24"" H x 0.93"" D (89.8 x 107.8 x 23.6mm)
- Tamper Switch: Magnetic tamper detection system
- Protection/Resistance: IP68 Water & Dust, IK07 Impact
- Certifications: CE, FCC, RoHs3.0, WEEE, UL294
- UV Stability: Nil structural degradation for the life of the reader in 3 years
- Housing Material: Polycarbonate UL94-V0 & UL746C (F1)
Technical Specifications
The ZKTeco Outdoor Multi-tech Smart Reader provides convenient key fob, Bluetooth, QR-code or PIN-based access control options to traditional access control systems.
The AMT-EP20CKQ-LHF is compatible with 125KHz (compatbile with EM, HID and more) and 13.56 MHz proximity RFID cards, including MF Classic, Mini S50/70, MF Classic EV1, MF DESFire EV1, iClass, and more. With over 100 RFID card types as well as NFC and Bluetooth options, customers have a wide variety of access control options that suit their needs.
IP68 water and dustproofing allows for year-round indoor or outdoor installation. Additional IK07 impact resistance prevents damage from trespassers looking to cause trouble.
Single-gang installation. App for Credentials is Armatura ID and will work with AMT-BT-CARD Bluetooth Credentials only.
AMT-EP20CKQ-LHF Specs and Features
- Operating Frequency / Standards: 125 kHz; 13.56 MHz: ISO14443A types A & B, ISO15693; 2.4 GHz Bluetooth
- Fuctions: RFID, Bluetooth and QR code
- Keypad: Touchscreen
- QR Code Scanner: Yes
- QR Code Scanning Pattern: Area image (648*488 pixel array)
- QR Code Scan Angle: Horizontal: 66°/ Vertical: 50°
- QR Code Scanning Print Contrast: Print Contrast: 25% minimum reflectance difference; Rotation, Pitch, Skew: 360°, +/-40°, +/-60°
- QR Code Capability:
- One-dimensional Code: UPC-A , UPC-E, UPC-E1, EAN-8, EAN-13,EAN-14, EAN-128, UCC128, ISBN/ISSN, CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93, CODE128, Interleaved 2 of 5 code, Industrial 2 of 5 code,Matrix 2 of 5 code, Toshiba code, UK/Plessey, GS1
- Two Code: QR code, PDF417, Data matrix, MicroPDF417, Aztec
- QR Code Scanning Performance: Depth of Field, 2.0""-3.1"" (5cm-8cm), 2.0""-4.7"" (5cm-12cm), 2.3""-7.7"" (6cm-19.5cm), 2.3""-9.8"" (6cm-25cm), 2.0""-2.3"" (5cm-6cm), 2.0""-3.5"" (5cm-9cm), 2.0""-6.3"" (5cm-16cm), 2.3""-7.9"" (6cm-20cm)
- Communications & Panel Connection: Wiegand (Up to 128bits SCP Secure Communication), OSDP (v2.2) via RS485
- Reading Distance: 13.56MHz & 125kHz: Up to 2.3""/60 mm (depending on environment and transponder); Up to 393.7""/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
- Data Protection: AES128 (Secured Communication between Reader & Controller); Secure Data Storage in EAL 5+ Certified Crypto Chip
- Visual Indicator: RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)
- Audio Indicator: Internal buzzer with adjustable intensity, (Configurable By 'Armatura Connect' Mobile APP)
- Power Requirement / Power Supply: 9 VDC to 24 VDC
- Operating Temperature: -22°F - 158°F /-30°C to 70°C
- Dimensions: 3.54"" W x 4.24"" H x 0.93"" D (89.8 x 107.8 x 23.6mm)
- Tamper Switch: Magnetic tamper detection system
- Protection/Resistance: IP68 Water & Dust, IK07 Impact
- Certifications: CE, FCC, RoHs3.0, WEEE, UL294
- UV Stability: Nil structural degradation for the life of the reader in 3 years
- Housing Material: Polycarbonate UL94-V0 & UL746C (F1)
