About the product
The Aeotec illumino ZWave On Off Switch installs in place of a standard wall switch, making it a smart switch. Local on and off control is combined with ZWave. Pair it with a ZWave smart hub for scheduling, automation and remote control.
The illumino ZWave switch uses Aeotec's Gen7 technology which includes a ZWave 700 series chip featuring the latest Zwave technology, longer range, better security, enhanced wireless connection and lower power consumption. It also supports SmartStart for easier inclusion with compatible hubs.
The ZWA037 illumino switch support ZWave 700 plus it's backwards compatible with older ZWave. It works with the Samsung and Aeotec SmartThings hub as well as other ZWave certified systems.
illumino is smaller than most smart switches, at only 1.18 inches (30mm) deep so it fits more easily in to tight single or multi-gang wall boxes.
illumino can be installed as a single gang (single switch) and can also work in a 3 way (2 switches) installation. It works with a standard 3 way remote switch - it does not require a smart remote switch.
ZWA038 illumino On Off Switch Features:
- In wall on off switch
- Works with incandescent, dimmable LED, dimmable halogen, dimmable CFL bulbs
- Local on/off
- ZWave 700 chip backwards compatible with older Zwave
- S2 security
- SmartStart inclusion
- ZWave repeater
- Works as single gang or 3 way
- 3 way uses standard remote switch - does not require a smart remote
- NEUTRAL WIRE REQUIRED

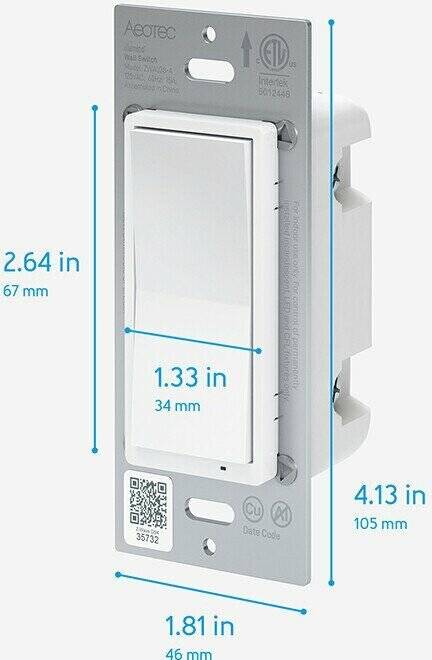

- Dimensions: 105x46x40mm
- Rated 120V 960W LED/CFL/Halogen/Incandescent
- Rated 1/2 HP Motor
- Rated 1800W / 15A Resistive
- 1 year Aeotec warranty
- cULus approved
Technical Specifications
The Aeotec illumino ZWave On Off Switch installs in place of a standard wall switch, making it a smart switch. Local on and off control is combined with ZWave. Pair it with a ZWave smart hub for scheduling, automation and remote control.
The illumino ZWave switch uses Aeotec's Gen7 technology which includes a ZWave 700 series chip featuring the latest Zwave technology, longer range, better security, enhanced wireless connection and lower power consumption. It also supports SmartStart for easier inclusion with compatible hubs.
The ZWA037 illumino switch support ZWave 700 plus it's backwards compatible with older ZWave. It works with the Samsung and Aeotec SmartThings hub as well as other ZWave certified systems.
illumino is smaller than most smart switches, at only 1.18 inches (30mm) deep so it fits more easily in to tight single or multi-gang wall boxes.
illumino can be installed as a single gang (single switch) and can also work in a 3 way (2 switches) installation. It works with a standard 3 way remote switch - it does not require a smart remote switch.
ZWA038 illumino On Off Switch Features:
- In wall on off switch
- Works with incandescent, dimmable LED, dimmable halogen, dimmable CFL bulbs
- Local on/off
- ZWave 700 chip backwards compatible with older Zwave
- S2 security
- SmartStart inclusion
- ZWave repeater
- Works as single gang or 3 way
- 3 way uses standard remote switch - does not require a smart remote
- NEUTRAL WIRE REQUIRED
- Dimensions: 105x46x40mm
- Rated 120V 960W LED/CFL/Halogen/Incandescent
- Rated 1/2 HP Motor
- Rated 1800W / 15A Resistive
- 1 year Aeotec warranty
- cULus approved
