About the product

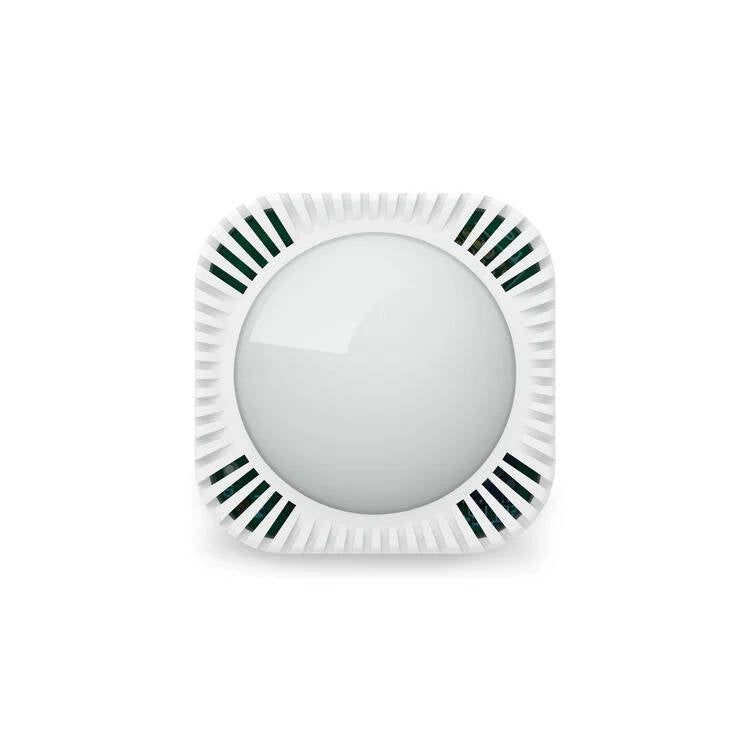

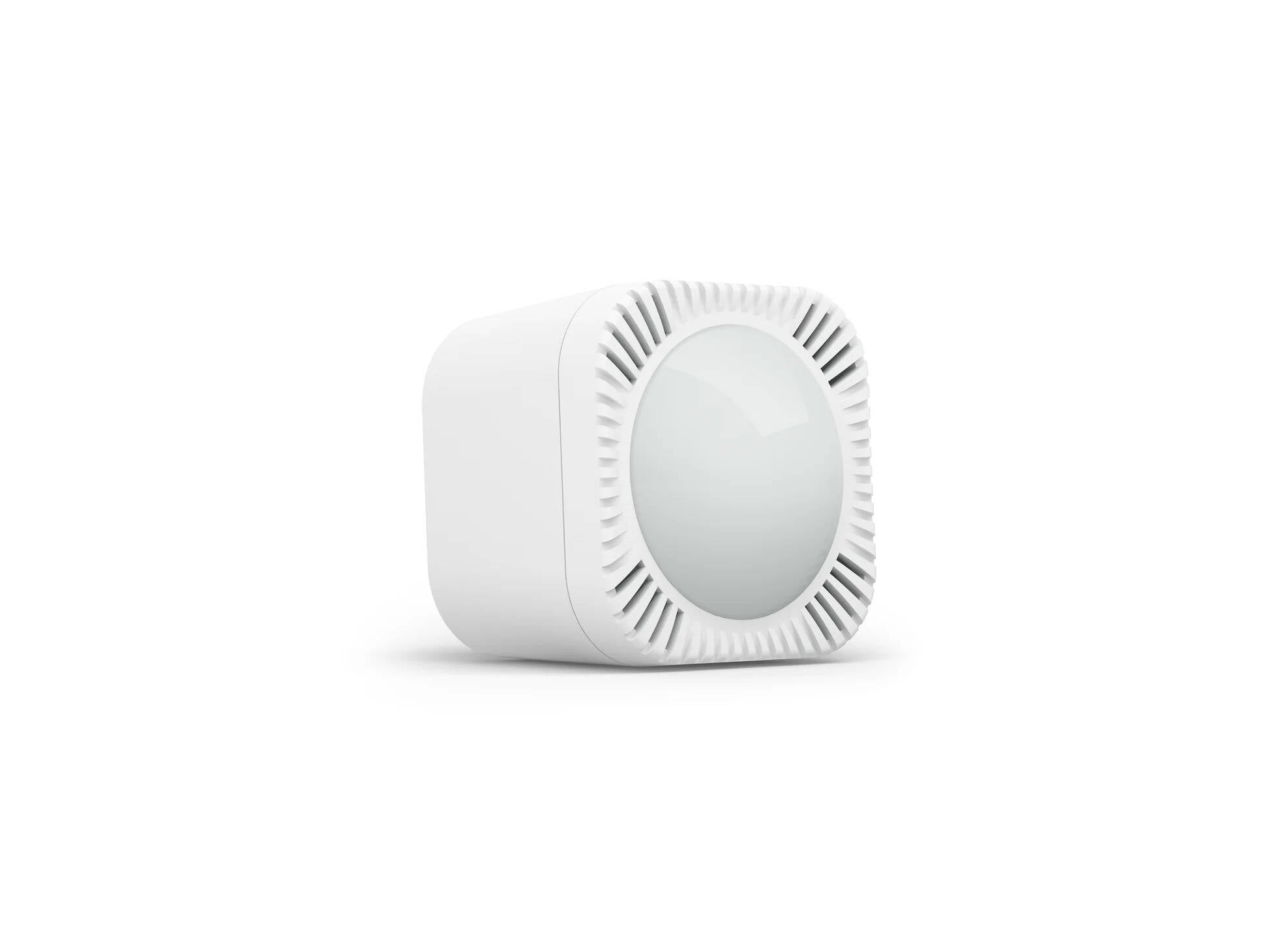

The Aeotec TriSensor 8 is a ZWave 800 Long-Range equipped multi-sensor that can detect motion, light levels and ambient temperatures. Compatible with a wide variety of smart home ecosystems, including SmartThings, Hubitat, Home Assistant, HomeSeer, Vera, ISY994ZW and more.
ZWave 800 Long-Range technology, when paired with a compatible hub, allows users to monitor areas up to a full 2500' away from the home controller (line-of-sight)-- greatly expanding the range of the system when compared to older ZWave or LAN-based sensors while maintaining full backwards compatibility for older hardware and hubs.
Motion sensing can detect subjects as far away as 10m (33'), while the light sensor measures ambient lux from 0 to 30,000 and temperature from a -10 to +50C range. Using a single CR123A battery (included), users can monitor the environment of virtually any room-- like greenhouses, garages, and more-- for up to 1.5 years in between battery changes.
Indoor use only. Package includes 1x ZWA045 Multi-Sensor, bracket, charging cable and instructions. Consult Aeotec's compatibility chart here for more information about supported hubs and controllers.
ZWA045 Specs and Features
- Z-Wave Plus Certified: Yes
- Z-Wave Chipset: EFR32ZG23A010F512IM32-BR
- Series 800: Yes
- S2 Security: Yes
- FLiRs supported: Yes
- Long Range: Yes
- LED activity: not configurable
- Power supply: battery power (1×CR123A batteries, 3V, 1500mAh). Not compatible with rechargeable CR123A batteries (3.7V)
- Sleep Current: 2uA
- Shutoff Mode: 1uA
- Active Mode: 26 uA/MHz
- Inclusion/Exclusion Current: 8 mA
- Voltage input: Battery Power, Min Voltage = 2.6VDC, Max voltage = 3.2VDC
- Repeater: No
- Measured temperature range: -10°C to 50°C [±1°C], 14°F to 122°F [±1.8°F]
- Lighting: 0 LUX to 30000 LUX [±3%]
- Product Weight: 65 g
- Total Package Weight: 102 g
- Product Dimensions: 45 x 45 x 35 mm
- Package Dimensions: 78 x 68 x 68 mm
- Backmount Plate Dimensions: 24 x 24 mm
- Operating temperature: 0°C to 70°C, 32°F to 158°F
- Max motion detection range: 10 meters., 33 feet
- Waterproofing: IP20 rating
- Battery Life: ~1.5 years using 1x CR123A batteries
- Operating distance:
- Mesh Network: Up to 656 feet outdoors, Up to 200 meters outdoors (Mesh network)
- Long Range Network: Up to 1 Mile, Up to 1.6km
Technical Specifications
The Aeotec TriSensor 8 is a ZWave 800 Long-Range equipped multi-sensor that can detect motion, light levels and ambient temperatures. Compatible with a wide variety of smart home ecosystems, including SmartThings, Hubitat, Home Assistant, HomeSeer, Vera, ISY994ZW and more.
ZWave 800 Long-Range technology, when paired with a compatible hub, allows users to monitor areas up to a full 2500' away from the home controller (line-of-sight)-- greatly expanding the range of the system when compared to older ZWave or LAN-based sensors while maintaining full backwards compatibility for older hardware and hubs.
Motion sensing can detect subjects as far away as 10m (33'), while the light sensor measures ambient lux from 0 to 30,000 and temperature from a -10 to +50C range. Using a single CR123A battery (included), users can monitor the environment of virtually any room-- like greenhouses, garages, and more-- for up to 1.5 years in between battery changes.
Indoor use only. Package includes 1x ZWA045 Multi-Sensor, bracket, charging cable and instructions. Consult Aeotec's compatibility chart here for more information about supported hubs and controllers.
ZWA045 Specs and Features
- Z-Wave Plus Certified: Yes
- Z-Wave Chipset: EFR32ZG23A010F512IM32-BR
- Series 800: Yes
- S2 Security: Yes
- FLiRs supported: Yes
- Long Range: Yes
- LED activity: not configurable
- Power supply: battery power (1×CR123A batteries, 3V, 1500mAh). Not compatible with rechargeable CR123A batteries (3.7V)
- Sleep Current: 2uA
- Shutoff Mode: 1uA
- Active Mode: 26 uA/MHz
- Inclusion/Exclusion Current: 8 mA
- Voltage input: Battery Power, Min Voltage = 2.6VDC, Max voltage = 3.2VDC
- Repeater: No
- Measured temperature range: -10°C to 50°C [±1°C], 14°F to 122°F [±1.8°F]
- Lighting: 0 LUX to 30000 LUX [±3%]
- Product Weight: 65 g
- Total Package Weight: 102 g
- Product Dimensions: 45 x 45 x 35 mm
- Package Dimensions: 78 x 68 x 68 mm
- Backmount Plate Dimensions: 24 x 24 mm
- Operating temperature: 0°C to 70°C, 32°F to 158°F
- Max motion detection range: 10 meters., 33 feet
- Waterproofing: IP20 rating
- Battery Life: ~1.5 years using 1x CR123A batteries
- Operating distance:
- Mesh Network: Up to 656 feet outdoors, Up to 200 meters outdoors (Mesh network)
- Long Range Network: Up to 1 Mile, Up to 1.6km
