Acerca del producto

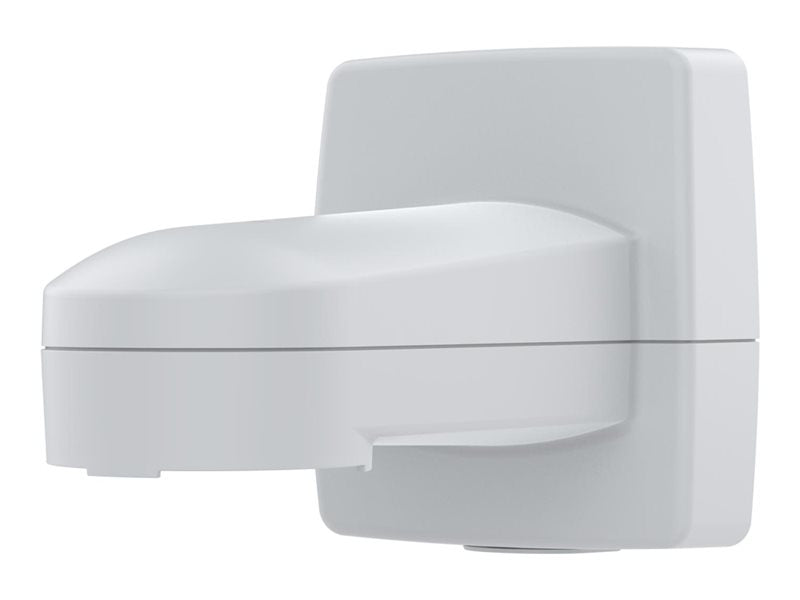

With this wall-and-pole mount, installers can choose between using an RJ-45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ-45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TQ5001-E is suited for both indoor and outdoor environments. The mount is also suitable for corner mounting with an optional accessory.
Especificaciones técnicas
| Primary Information | |
| Product Description: | AXIS TQ5001-E - camera mount - TAA Compliant |
| Product Type: | Camera mount |
| Package Content: | Cable ties, RJ45 connection kit, wall mount |
| Built-in Devices: | RJ-45 cable |
| Placing / Mounting: | Wall mountable, pole mountable |
| Indoor / Outdoor: | Indoor, outdoor |
| Product Material: | Aluminum |
| Dimensions (WxDxH): | 11.5 in |
| Weight: | 4.32 lbs |
| Color: | NCS S 1002-B, white |
| Compliant Standards: | EMC, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, RCM Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-27, IEC/EN 60529, IP66, IEC/EN 62262 IK10, MIL-STD 810G 509.5, KS C 9832 Class A |
| TAA Compliant: | Yes |
| Manufacturer Warranty: | 5-year warranty |
| Designed For: | AXIS M5000, M5000-G, M5525-E PTZ Network Camera, M5526-E, P5654-E MK II, P5655-E, P5676-LE, Q6010-E, Q6074, Q6135-LE; M55 Series M5526-E |
| General | |
| Product Type: | Camera mount |
| Built-in Devices: | RJ-45 cable |
| Package Content: | Cable ties, RJ45 connection kit, wall mount |
| Placing / Mounting: | Wall mountable, pole mountable |
| Indoor / Outdoor: | Indoor, outdoor |
| Product Material: | Aluminum |
| Max Load Weight: | 88.2 lbs |
| Depth: | 11.5 in |
| Weight: | 4.32 lbs |
| Color: | NCS S 1002-B, white |
| Miscellaneous | |
| Features: | RJ45 port, impact-resistant |
| Compliant Standards: | EMC, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, RCM Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-27, IEC/EN 60529, IP66, IEC/EN 62262 IK10, MIL-STD 810G 509.5, KS C 9832 Class A |
| TAA Compliant: | Yes |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | -58 °F |
| Max Operating Temperature: | 149 °F |
| Compatibility Information | |
| Designed For: | AXIS M5000, M5000-G, M5525-E PTZ Network Camera, M5526-E, P5654-E MK II, P5655-E, P5676-LE, Q6010-E, Q6074, Q6135-LE ¦ AXIS M55 Series M5526-E |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
