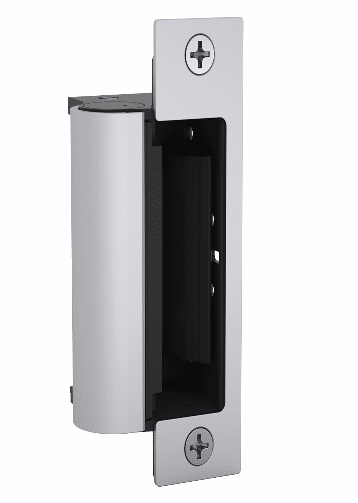

The HES 1006-630 Series Electric Strike, Fail Secure, Metal/Wood, Stainless Steel is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy-duty stainless steel construction enable it to exceed every standard developed for electric strikes.
HES 1006 Series Electric Strike, 12/24 VDC Stainless Steel 630 Features:
Stainless steel construction
Tamper-resistant
Static strength 2,500 lbs. (fail secure)
Dynamic strength 350 ft-lbs. (fail secure)
Endurance 1,000,000 cycles
Fail secure (standard)
Non-handed
Accommodates up to 1"" deadbolt
Plug-in connector
Full keeper shims for horizontal adjustment
Trim enhancer
Dual voltage 12 or 24 VDC continuous duty
Internally mounted solenoid
HES 1006 Series Electric Strike, 12/24 VDC Stainless Steel 630 Specification:
Application
Adjustability: Horizontal
Surface Mounting: Cutting required
Frame Material: Metal|Wood
Shim Type: Field Adjustable
Latchbolt Accommodation: 1/2"" - 5/8
Electrical
Voltage: 12/24
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Strike Monitor|Latchbolt Monitoring
Strength & Durability
Endurance (cycles): 1,000,000
Dynamic Strength (ft-lbs): 350
Tamper Resistant: Yes
Fail-Safe | Fail Secure: Fail Safe/ Fail Secure
Grade: Grade 1
General Specifications
Warranty: SecuriCare five-year, no-fault, no-questions-asked warranty
Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Weights & Dimensions
Strike Body Depth (in): 1.6875
Strike Body Height (in): 3.475
Especificaciones técnicas
The HES 1006-630 Series Electric Strike, Fail Secure, Metal/Wood, Stainless Steel is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy-duty stainless steel construction enable it to exceed every standard developed for electric strikes.
HES 1006 Series Electric Strike, 12/24 VDC Stainless Steel 630 Features:
Stainless steel construction
Tamper-resistant
Static strength 2,500 lbs. (fail secure)
Dynamic strength 350 ft-lbs. (fail secure)
Endurance 1,000,000 cycles
Fail secure (standard)
Non-handed
Accommodates up to 1"" deadbolt
Plug-in connector
Full keeper shims for horizontal adjustment
Trim enhancer
Dual voltage 12 or 24 VDC continuous duty
Internally mounted solenoid
HES 1006 Series Electric Strike, 12/24 VDC Stainless Steel 630 Specification:
Application
Adjustability: Horizontal
Surface Mounting: Cutting required
Frame Material: Metal|Wood
Shim Type: Field Adjustable
Latchbolt Accommodation: 1/2"" - 5/8
Electrical
Voltage: 12/24
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Strike Monitor|Latchbolt Monitoring
Strength & Durability
Endurance (cycles): 1,000,000
Dynamic Strength (ft-lbs): 350
Tamper Resistant: Yes
Fail-Safe | Fail Secure: Fail Safe/ Fail Secure
Grade: Grade 1
General Specifications
Warranty: SecuriCare five-year, no-fault, no-questions-asked warranty
Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Weights & Dimensions
Strike Body Depth (in): 1.6875
Strike Body Height (in): 3.475
