Acerca del producto

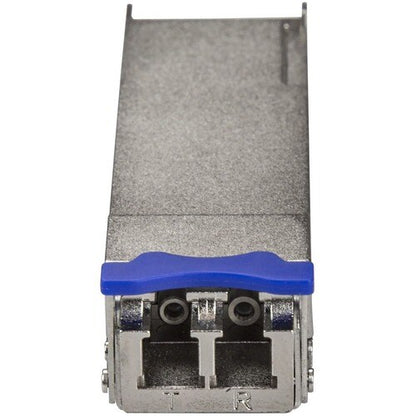

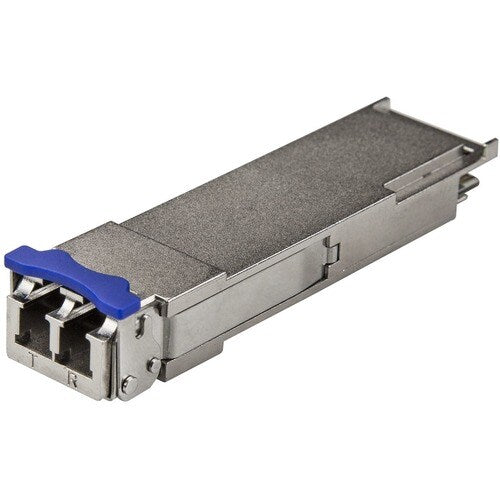

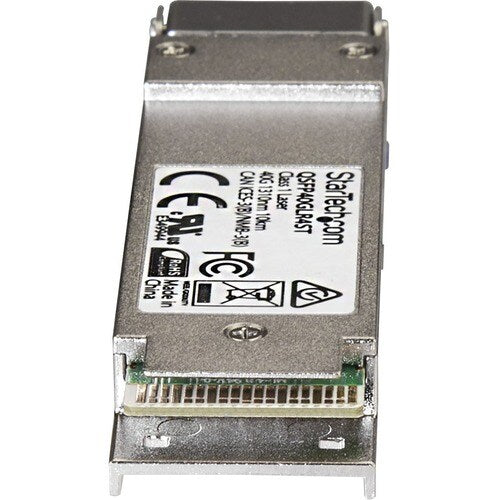

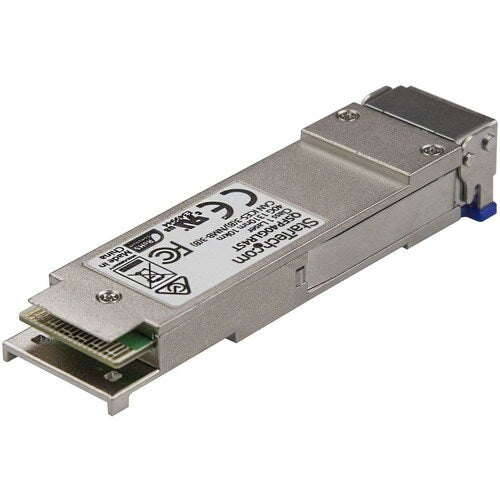

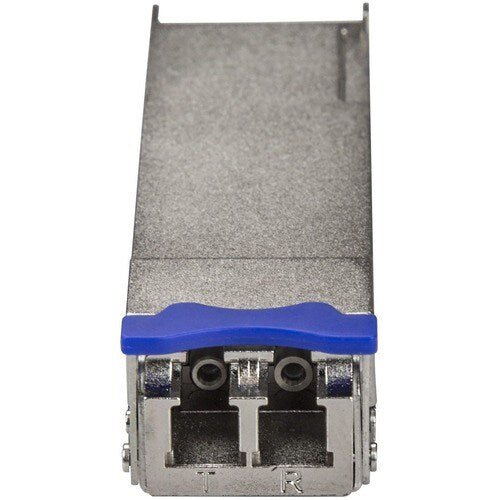

The 10320-ST is an Extreme Networks® 10320 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBase-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1270nm to 1330nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Single Mode
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 95,832,026 hours
- Power Consumption: < 2.5W
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% EXTREME NETWORKS 10320 COMPATIBLE: Designed, programmed and tested to work with compatible
- Extreme Networks switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-LR4
- 40 Gbps
- Single Mode
- LC Connector
- 1270nm to 1330nm
Especificaciones técnicas
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x LC Duplex 40GBase-LR4 Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Media & Performance | |
| Network Technology | 40GBase-LR4 |
| Ethernet Technology | 40 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Physical Characteristics | |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Form Factor | Hot-swappable |
| Height | 0.50" (12.70 mm) |
| Width | 0.70" (17.78 mm) |
| Depth | 2.80" (71.12 mm) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | QSFP+ |
| Manufacturer Part Number | 10320-ST |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Extreme Networks QSFP+ Module |
| Brand Name | StarTech.com |
