Acerca del producto

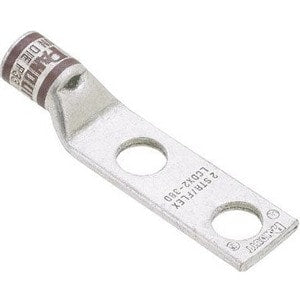

Flex Conductor, Two-Hole, Standard Barrel with Window LugFor Use with Flexible, Extra-Flexible, and Code Stranded Copper Conductors
Type LCDX
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
- American Bureau of Shipping approved
- Available with NEMA hole sizes and spacing
- Tin-plated connector to inhibit corrosion
- Features terminal connector
Especificaciones técnicas
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Length | 2.74" (69.60 mm) |
| Height | 1.19" (30.23 mm) |
| Product Color | Purple |
| Color Family | Purple |
| Technical Information | |
| Connector Details | Barrel Plug |
| Connector Type | Barrel Plug |
| Features | Stranded |
| Flexible | |
| Connector Plating | Tin |
| General Information | |
| Product Type | Terminal Connector |
| Manufacturer Part Number | LCDX4/0-14A-X |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 10 |
| Manufacturer | PANDUIT CORP |
| Product Name | Compression Connectors - Lugs |
| Brand Name | Panduit |
