Acerca del producto

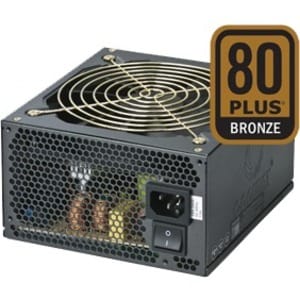

La serie Coolmax ZU ofrece niveles de eficiencia energética 80 PLUS Bronze, la salida masiva de riel único de 12 V le brinda la energía que necesita y la gestión modular de cables crea un flujo de aire adecuado dentro del gabinete. El conector PCI-E 6+2 es adecuado para los sistemas SLI o CrossFire más exigentes.
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Bronze |
| Physical Characteristics | |
| Weight (Approximate) | 3.18 kg |
| Form Factor | Internal |
| Height | 3.30" (83.82 mm) |
| Width | 5.90" (149.86 mm) |
| Depth | 6.90" (175.26 mm) |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | 14512 |
| Manufacturer Website Address | http://www.coolmaxusa.com |
| Packaged Quantity | 5 |
| Manufacturer | Coolmax Technology, Inc |
| Product Model | ZU-1000B |
| Product Name | 1000W 80plus Bronze Modular ATX Power Supply ZU-1000B |
| Product Series | ZU |
| Brand Name | Coolmax |
| Interfaces/Ports | |
| Receptacles | 9 x 15-pin Serial ATA |
| 6 x 4-pin LP4 Peripheral Device | |
| 2 x 6+2pin PCI-E | |
| 2 x 6-pin PCI-E | |
| 1 x 8-pin EPS12V Motherboard | |
| 1 x 4+4pin ATX12V Motherboard | |
| 1 x 4-pin SP4 Floppy Drive | |
| 1 x 20+4pin ATX Motherboard | |
| Plug/Connector | On/Off Switch |
| Technical Information | |
| Efficiency | 85% |
| Protection Type | Over Current |
| Short Circuit | |
| Over Voltage | |
| Over Temperature | |
| Over Power | |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Modular | Yes |
| Specification Compliance | ATX12V/EPS12V |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Power | 1 kW |
| Output Voltage | -12 V DC |
| 5 V DC | |
| 12 V DC | |
| 3.3 V DC | |
| Output Current | 83 A |
| 30 A | |
| 800 mA | |
| 3 A | |
| Input Voltage Range | 100 V AC - 240 V AC |
| Number of +12V Rails | 1 |
| Input Voltage Type | AC |
| Output Voltage Detail | 5 V DC @ 3 A |
| 3.3 V DC @ 30 A | |
| 12 V DC @ 83 A | |
| -12 V DC @ 800 mA | |
| 5 V DC @ 30 A |
