Acerca del producto

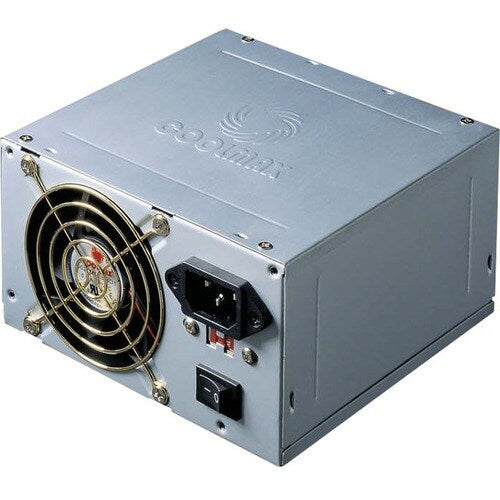

COOLMAX V-400 power supplies are durable, practical, and efficient. Remove all superfluous attachments and features. The V-400 can provide reliability and 400 watts of power you can depend on to run your system. With its 80mm silent cooling fan designed for fastest cooling time and minimal noise level; you won't have to worry about overheating and noisy fans anymore. This is the basic power supply for casual users who just needs something that is cost effective and works. - ATX12V version 2.0
- 80mm low noise cooling fan
- Dual +12V output design
- Serial ATA 150 ready
- Selected components & high performance heat sink
- Over voltage protection & short circuit protection
- 20+4 pin x1
- 4+4 pin x1
- 15 pin SATA x3
- Peripheral power x2
- 4 pin FDD x1
- Unit Dimension (L x W x H): 5.60 x 5.90 x 3.30 in
- 80mm low noise cooling fan
- Dual +12V output design
- Serial ATA 150 ready
- Selected components & high performance heat sink
- Over voltage protection & short circuit protection
- 20+4 pin x1
- 4+4 pin x1
- 15 pin SATA x3
- Peripheral power x2
- 4 pin FDD x1
- Unit Dimension (L x W x H): 5.60 x 5.90 x 3.30 in
- Quiet Performance
- Silent 80mm Cooling Fan
- High energy efficiency
- 115V, 230 switchable power supply
- Compatible with ATX 12V 2.3/ EPS 12V
Especificaciones técnicas
| Reliability | |
| MTBF | 100000 Hour |
| Technical Information | |
| Number of Fans | 1 |
| Specification Compliance | ATX12V |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
|
| Country of Origin | China |
| Physical Characteristics | |
| Weight (Approximate) | 997.9 g |
| Height | 3.30" (83.82 mm) |
| Width | 5.90" (149.86 mm) |
| Depth | 5.60" (142.24 mm) |
| Product Color | Silver |
| Interfaces/Ports | |
| Receptacles | 4 x 4-pin Molex |
| 1 x 5-pin Serial ATA | |
| 1 x 4-pin Floppy Drive | |
| 1 x 4-pin ATX12V | |
| 1 x 24-pin ATX Motherboard | |
| 1 x 15-pin Serial ATA | |
| 1 x 20-pin ATX Motherboard | |
| General Information | |
| Product Type | Proprietary Power Supply |
| Manufacturer Part Number | 14616 |
| Manufacturer Website Address | http://www.coolmaxusa.com |
| Packaged Quantity | 10 |
| Manufacturer | Coolmax Technology, Inc |
| Product Model | V-400 |
| Product Name | 400W 80mm Fan ATX Power Supply V-400 |
| Brand Name | Coolmax |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Power | 400 W |
| Output Voltage | 5 V DC |
| 3.3 V DC | |
| -12 V DC | |
| 12 V DC | |
| Input Voltage Range | 100 V AC - 132 V AC |
| 200 V AC - 264 V AC | |
| Number of +12V Rails | 2 |
| Input Voltage Type | AC |
