Acerca del producto

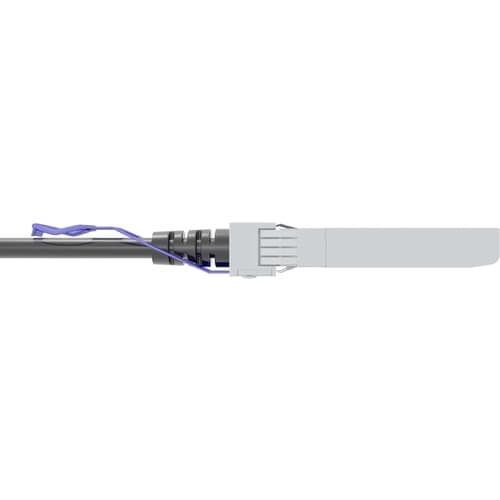

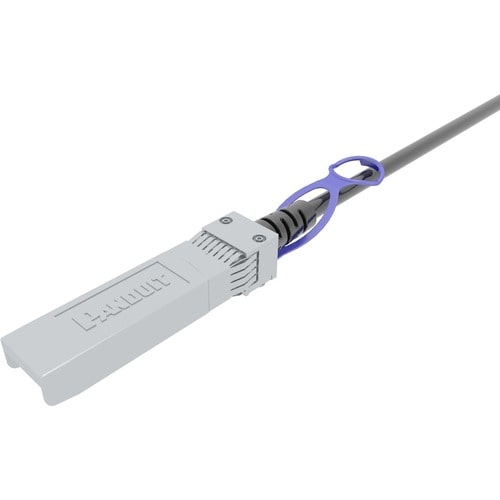

The high speed twin-axial cable assembly features SFP+ 10Gig hot pluggable modular connectors on each end. It is black and 5 meters in length.
- 100% performance tested :Confidence that each assembly delivers specified performance for ensured network availability
- Compliant to SFF-8431, SFF-8432 and SFF-8472 :Ensuring 10 Gb/s performance when mated to any SFF-8431 SFP+ compliant host port
- Robust construction :High speed 10 GHz twin-axial cable, with two shielded parallel pairs, factory terminated to SFP+ 10 Gb/s hot pluggable modular connectors; rated to a minimum 250 mating cycles
- Low latency performance :Ideal for high performance computer clustering and other latency sensitive applications
- Passive low power assembly :Provides a low cost short reach interconnect option with no additional power draw
- Low profile :Robust easy-to-use connector latching feature allows easy installation in belly-to-belly high density installations
- Small diameter cable design :Enables proper cable management and improved airflow
- Built-in strain relief: Ensures proper bend radius control for reliable deployment
- Variety of lengths :Available 1 to 5 meters for design flexibility and optimum airflow
- Variety of colors: Available in Blue, White, Black, and Red for easy identification of multiple networks and fabrics
Especificaciones técnicas
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Material Details | PVC - jacket |
| Length | 16.40" (416.56 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | PSF1PZC5MBL |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | High Speed Twin-Axial Cable Assembly, SFP+ 10Gig, Black, 5m |
| Brand Name | Panduit |
| Technical Information | |
| Cable Length | 16.4 ft |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Switch |
| Rack Server | |
| Network Device | |
| Computer | |
| Shielding | Yes |
| Features | Passive |
| Strain Relief | |
| Pull Tab Latch | |
| Latching Connector | |
| Flame Resistant | |
| Bendable | |
| Cable Type | Twinaxial |
| Connector Type on First End | SFP+ Network |
| Connector Type on Second End | SFP+ Network |
| American Wire Gauge | 26 AWG |
| Connector on First End Details | 1 x SFP+ Network |
| Connector on Second End Details | 1 x SFP+ Network |
