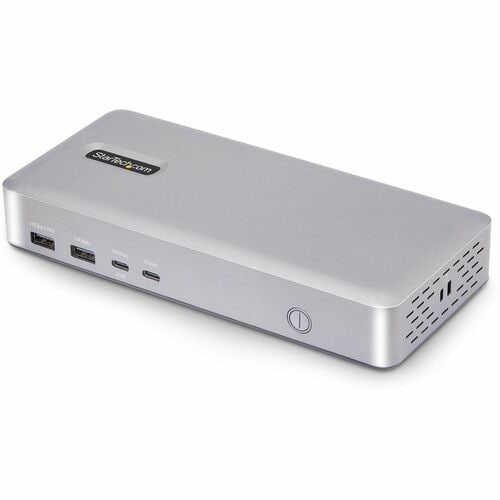

This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.
Flexible High-Performance Video
The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.
Port Connectivity
The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.
The dock features:
- 2x HDMI ports to connect displays.
- 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
- 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)
100W USB Power Delivery
Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App
Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

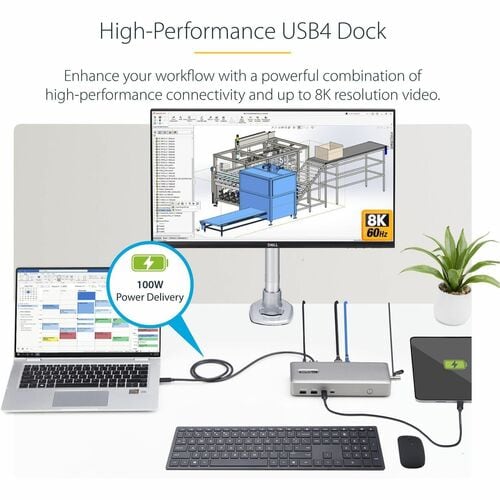

- HIGH-PERFORMANCE USB4 DOCK: USB4 delivers 40Gbps data transfer speeds, and improved bandwidth for video, making this mobile docking station an ideal solution for high-performance computing & seamless device connectivity

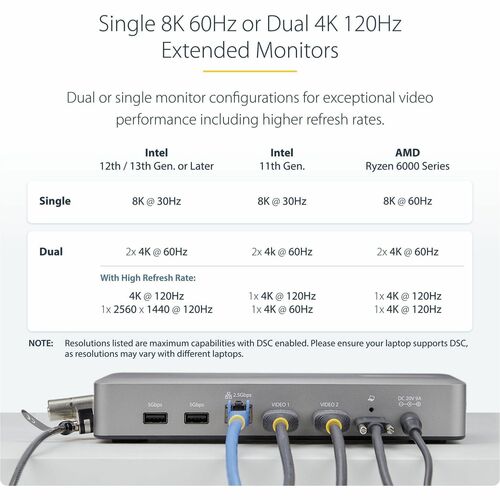

- DUAL 4K 60Hz/120Hz VIDEO: 2x HDMI 2.1 ports support Dual 4K 60Hz or up to Dual 4K 120Hz / Single 8K 60hz at 4:2:2; Delivers direct GPU performance with no software or compression

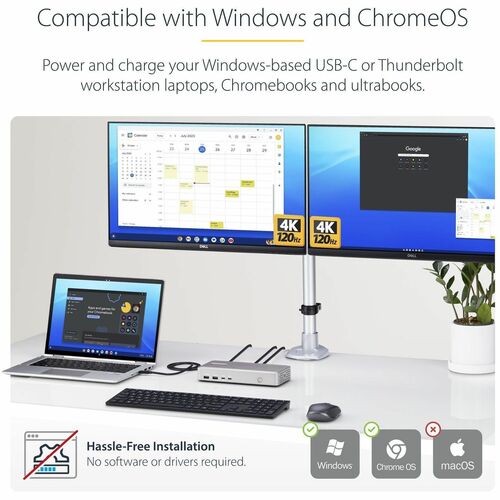

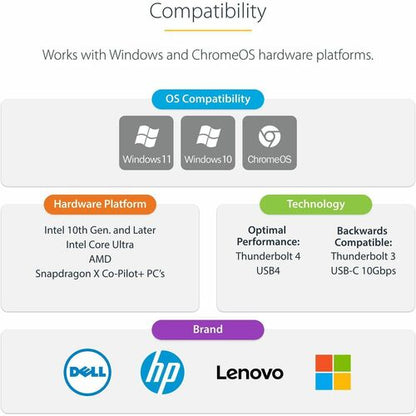

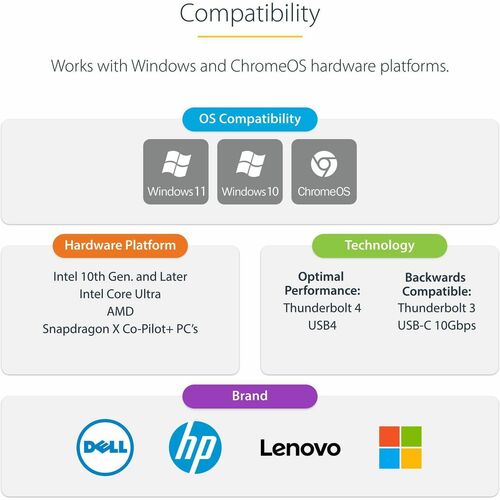

- COMPATIBILITY: Dock is Compatible with Windows 11 (x64 and ARM), Windows 10, and ChromeOS; Optimal performance with Thunderbolt 4 and USB4 laptops; Compatible with Intel 12th Gen and later, Intel Core Ultra, AMD, and Snapdragon X Co-Pilot+ PC's

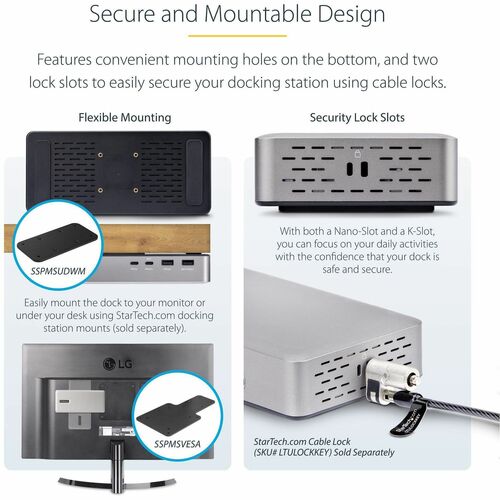

- DEVICE SECURITY: Secure 3.3ft (1m) USB-C locking cable for host port; Mounting holes available for optional mounting bracket; K-slot & Nano security slots; USB Event Monitoring, Mac Address Pass-Through with included Connectivity Tools software suite

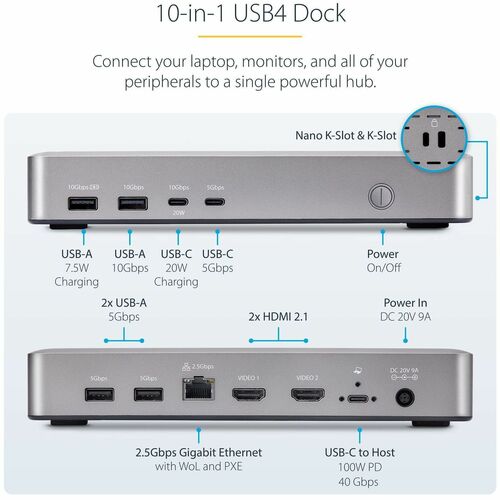

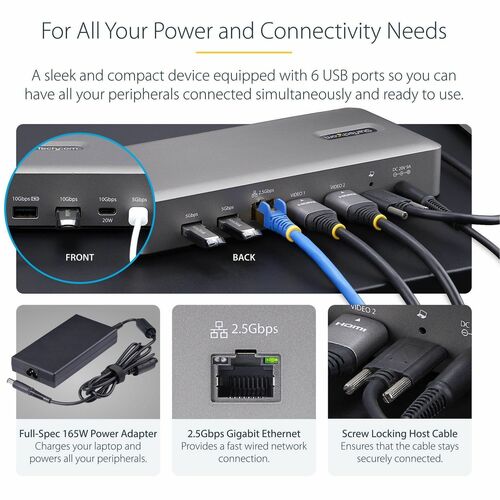

- PORTS: 6-port USB hub (2x USA-A 10Gbps / 2x USB-A 5Gbps / 1x USB-C 10Gbps / 1x USB-C 5Gbps); 2.5Gb LAN (10/100/1000/2500Mbps, WoL/PXE); 180W power adapter charges laptop (100W PD) & powers all ports; 1x 20W USB-C, 1x 7.5W USB-A for charging USB devices
Especificaciones técnicas
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Miscellaneous | |

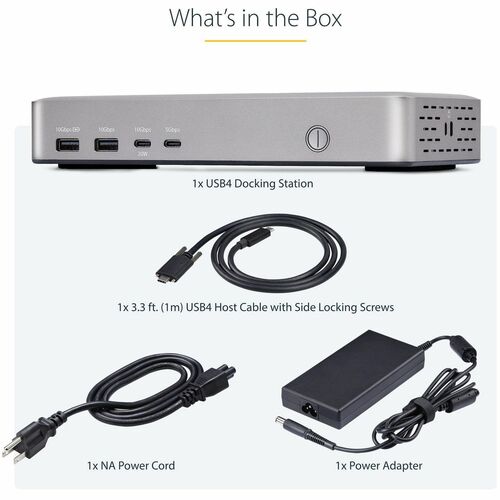

| Package Contents |
|
| Compatibility | Compatible Devices:
|
| Kensington Security Slot | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Software | |
| Operating System Supported | Windows 10 |
| Windows 11 (64-bit) | |
| Windows 7 | |
| ChromeOS | |
| Windows 8 | |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 155NA-USB4-DOCK |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 155NA-USB4-DOCK |
| Brand Name | StarTech.com |

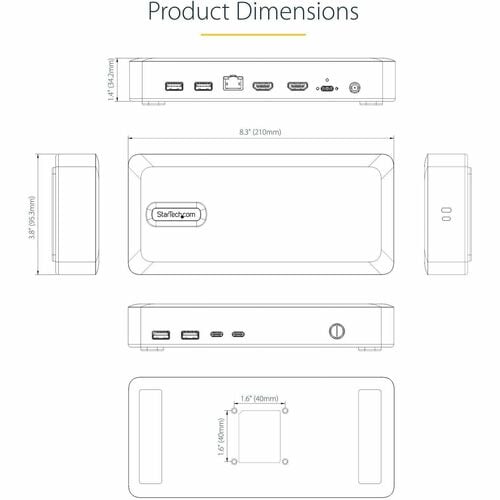

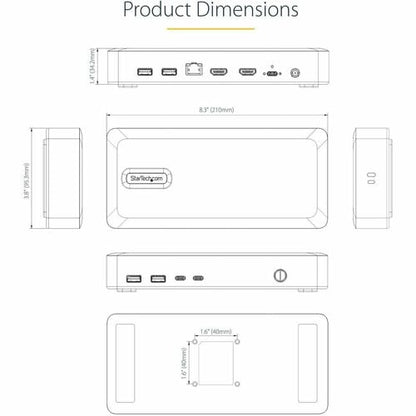

| Physical Characteristics | |
| Weight (Approximate) | 4.90 oz (138.91 g) |
| Form Factor | Desktop |
| Length | 3.80" (96.52 mm) |
| Height | 1.30" (33.02 mm) |
| Width | 8.30" (210.82 mm) |
| Product Color | Space Gray |
| Color Family | Gray |
| Interfaces/Ports | |
| Host Interface | USB4 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 6 |
| Thunderbolt | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB Type-C 10Gbps, 1x USB-C 5Gbps |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 4 |
| USB Power Delivery | 100W |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| USB Type-A | Yes |
| Technical Information | |
| Device Supported | Notebook/Tablet/Monitor/Smartphone |
| Connectivity Technology | Wired |
| Features | Power Delivery Pass-through |
| Charging Capability | Yes |
| Maximum Data Transfer Rate | 5 GB/s |
| Number of Displays Supported | 2 |
| Supported Resolutions | 7680 x 4320 |
| 3840 x 2160 | |
| Screen Mode Supported | 8K |
| 8K @ 30Hz | |
| 4K @ 60Hz | |
| 4K | |
| 4K @ 120Hz | |
| Management Features | MAC Address Pass-through |
| Wake-on-LAN | |
| PXE Boot | |
| Security Slot Type | Kensington Security Slot |
