Tripp Lite

Cable de conexión de canal de fibra de Tripp Lite - SC macho - SC macho - 2 m - Naranja

Name: Cable de conexión de canal de fibra de Tripp Lite - SC macho - SC macho - 2 m - Naranja
Brand: Tripp Lite
SKU: CB454659
Price: 18.37 CAD
Availability: OutOfStock

$18.37 CAD

~~$20.58 CAD~~ $18.37 CAD

-10% OFF Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cable de conexión de canal de fibra de Tripp Lite - SC macho - SC macho - 2 m - Naranja

VPN: N506-02M SKU: CB454659 CPU: 37332119452

Cables de conexión multimodo PVC 50/125 de primera calidad
La pérdida de atenuación cumple o supera los últimos estándares de la industria.
Mayor ancho de banda optimizado para redes gigabit y 10 Gbps

Bloque de texto

Cantidad

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Resumen de información del producto

Cable de conexión de canal de fibra de Tripp Lite - SC macho - SC macho - 2 m - Naranja

Acerca del producto

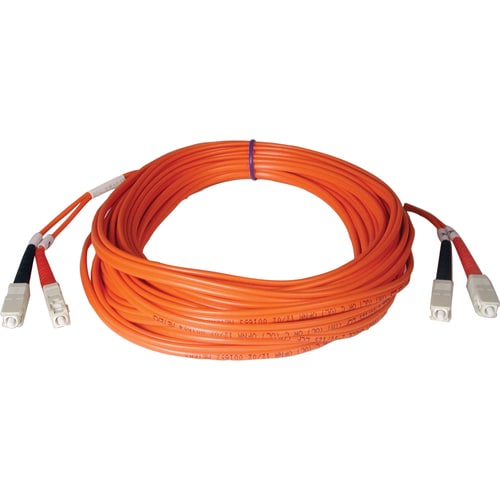

Tripp Lite's 2-meter multimode duplex Fibre Channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 3, 5, 10, 15, 30, and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-" for SC-LC cables, and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Premium PVC 50/125 multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications

Especificaciones técnicas

Physical Characteristics
Product Color	Orange
Color Family	Orange
Miscellaneous
Additional Information	Number of fibers: 2 Fiber type: all glass graded index Core diameter: two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Secondary coating diameter: 900+/-50 microns Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric apeture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
Package Contents	Fibre Channel Patch Cable 2M duplex MMF cable SC/SC 50/125 fiber
Certifications & Standards	FDDI OFNR
Country of Origin	China
General Information
Product Type	Network Cable
Manufacturer Part Number	N50602M
Manufacturer Website Address	https://tripplite.eaton.com/
Manufacturer	Eaton Corporation
Product Name	Fibre Channel Patch Cable
Brand Name	Tripp Lite by Eaton
Technical Information
Cable Length	6.6 ft (2.01 m)
Jacket Type	Plenum
Cable Characteristic	Patch Cable
Cable Type	Fiber Optic
Connector Type on First End	SC Network - Male
Connector Type on Second End	SC Network - Male
Connector on First End Details	2 x SC Network - Male
Connector on Second End Details	2 x SC Network - Male
Fiber Optic Cable Core/Cladding Specification	50/125 µm
