Acerca del producto
This camera offers a one-stop shop for small-scale video surveillance recording thanks to its potent optical zoom, precise pan, tilt, and zoom functions, and small, compact design. The camera's Enhanced Starlight Technology makes it the ideal choice for low-light situations.

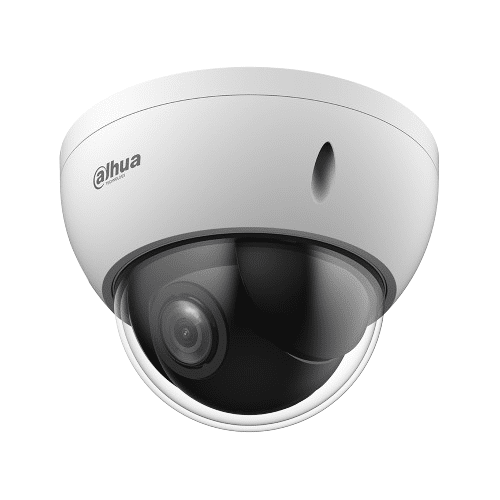

Dahua 4MP CMOS 4x IP Dome PTZ IP66, IK10, Enhanced Starlight, Lite Series Features:
- 1/2.8-in. STARVIS™ CMOS Sensor
- Powerful 4x Optical Zoom Lens
- Enhanced Starlight Technology for Low-light Applications
- Smart H.265+ and Smart H.264+ Smart Dual Codec
- Maximum Frame Rate 4MP (2560 x 1440) at 30 fps
- Analytics+ Functions: Smart Motion Detection, Face Detection, PFA Technology, Perimeter Protection
- IP66 Ingress Protection, IK10 Vandal Protection, TVS 6000 V Surge Protection
- Five-year Warranty (when sold through an authorized Dahua distributor)
Dahua 4MP CMOS 4x IP Dome PTZ IP66, IK10, Enhanced Starlight, Lite Series Specifications:
- Camera
- Image Sensor 1/2.8-in. CMOS
- Effective Pixels 2560 (H) × 1440 (V)
- RAM/ROM 512 MB/128 MB
- Scanning System Progressive
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Minimum Illumination
- Color 0.005 lux at F1.6
- B/W 0.0005 lux at F1.6
- Lens
- Focal Length 2.8 mm to 12 mm
- Maximum Aperature F1.6 to F3.0
- Angle of View
- Horizontal 90.3° to 29.4°
- Vertical 48.5° to 16.6°
- Diagonal 105.7° to 33.6°
- Optical Zoom 4×
- Focus Control Automatic, Semi-automatic, Manual
- Iris Control Fixed
- Close Focus Distance 1.5 m (4.92 ft)
- DORI1 Distance
- Detect 240 m (787.40 ft)
- Observe 94.8 m (311.02 ft)
- Recognize 48 m (157.48 ft)
- Identify 24 m (78.74 ft)
- PTZ
- Pan/Tilt Range
- Pan 0° to 355°
- Tilt 0° to 90°
- Manual Control Speed
- Pan 0.1° to 100°/s
- Tilt 0.1° to 60°/s
- Preset Speed
- Pan 100°/s
- Tilt 0°/s
- Presets 300
- PTZ Mode 5 Patterns, 8 Tours (Up to 32 Presets per Tour), 5 Scans
- PTZ Protocol SD Pelco-P/D (Auto-recognition)
- Idle Motion Activate Preset/Scan/Tour/Pattern if there is no command in the specified period
- Pan/Tilt Range
- Video
- Video Compression AI Coding, H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG(Sub Stream), Smart H.264+
- Streaming Capability Three (3) Streams
- Resolution 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF(352 × 288)
- Frame Rate
- Main Stream 4MP/3MP/1080p/1.3MP/720p at 1 to 30 fps
- Sub Stream 1 D1/VGA/CIF at 1 to 30 fps
- Sub Stream 2 720p at 1 to 30 fps
- Bit Rate Control CBR/VBR
- Bit Rate
H.264 2,816 Kbps to 13,056 Kbps
H.265 1,024 Kbps to 7,936 Kbps - Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, DWDR, HLC
- White Balance Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp
- Gain Control Auto, Shutter Priority, Gain Priority, Manual
- Noise Reduction 2D, 3D
- Advanced Features Motion Detection, Region of Interest (RoI), Image Stabilization, Electronic Defog
- Digital Zoom 16x
- S/N Ratio ? 55 dB
- Network
- Ethernet One (1) RJ-45 Port (10/100 Base-T)
- Protocol TCP, FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, IP Filter, SMB, HTTP, SSL, DHCP, SMTP, SNMPv1/v2c/v3(MIB-2), Qos, RTSP, ARP
- Interoperability CGI, ONVIF (Profile S, G, T)
- Streaming Method Unicast/Multicast
- Maximum User Access 20 Users (Total Bandwidth 64 Mbps)
- Edge Storage Micro SD Card (Max 256 GB), FTP, SFTP, NAS
- Browser Safari (iOS 10 or Later), Microsoft Edge, Google Chrome 41 or Later, Firefox 50 or Later
- Management Software DSS, DMSS
- Mobile Client iOS, Android
- Certifications
- CE IEC 62368-1, EN 55032, EN IEC 61000-3-2, EN55024, EN55035, EN50130-4
- FCC 47 CFR FCC Part15, Subpart B, NSI C63.4
- Interface
- Alarm Linkage Capture, Recording, Send Email, Preset, Tour, Pattern, Alarm Digital Input
- Alarm Event Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection
- Electrical
- Power Supply 12 VDC/3A±10%, PoE (802.3at)
- Power Consumption
- Basic 2.3 W
- Maximum 6.1 W
- Environmental
- Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
- Operating Humidity ? 95%
- Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
- Storage Humidity ? 95%
- Ingress Protection IP66
- Vandal Resistance IK10
- Surge Protection TVS 6000 V
- Construction
- Product Dimensions 89 mm × 122 mm (3.50 in. × 4.80 in.)
- Net Weight 0.5 kg (1.10 lb)
- Gross Weight 0.7 kg (1.54 lb)
- Analytics+ Functions
- Face Detection: Detects and captures a snapshot of a human face in a defined area within a scene.
- Smart Motion Detection+
- Differentiates between and classifies human and vehicle objects.
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Perimeter Protection
- Detects human violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
- Monitors a combination of detection methods.
- Intelligent Video System (IVS) Functions
- Standard Features Tampering with the camera. Error writing to an onboard Micro SD card. Error sending or receiving data over the network. Unauthorized access to the camera.
- Tripwire A target crosses a user-defined line.
- Intrusion A target enters or exits a defined perimeter.
- Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
- Loitering Detection Target is in motion inside a defined area longer than a specified amount of time.
- Fast Moving Target exceeds a set speed when exiting a defined area.
- Parking Detection Vehicle remains in a defined area without motion for a set period of time.
- Crowd Gathering Specified number of people remain inside a defined area for a set time.
- Human/Vehicle Classification Detects human or vehicle violations using Tripwire or Intrusion detection methods.
