J-Hooks: An Inexpensive Alternative to Cable Trays
These 3/4-inch wall-mount J-hooks are recommended for setting up network or digital signage installations that require cabling to be run along walls, ceilings and raised floors for long distances. Tripp Lite's NCM-JHW08-25 comes with 25 wall-mount J-hooks.
Designed to Accommodate a Wide Assortment of Cable Types
Less expensive and more flexible than cable trays or ladder rack runways, these J-hooks accommodate Cat5e/6/6a, fiber optic, audio/video, coaxial and other cable types. They comply with TIA-56B-C, TIA-569-C and ISO/IEC 14763-2 requirements for structured cabling systems, making them a perfect accessory for contractors, IT staff and cable installers.
Made from Galvanized Steel to Provide Proper Long-Term Support
These easy-to-install J-hooks are made from 18-gauge galvanized steel with a zinc-plated finish. To give you an idea of their strength, they offer stress-free support for up to 10 Cat5e cables, 15 Cat6 cables or five Cat6a cables. Maximum weight capacity is 60 pounds. Built-in anchor points allow you to use cable ties (sold separately) to secure cabling in place.
Typical Applications

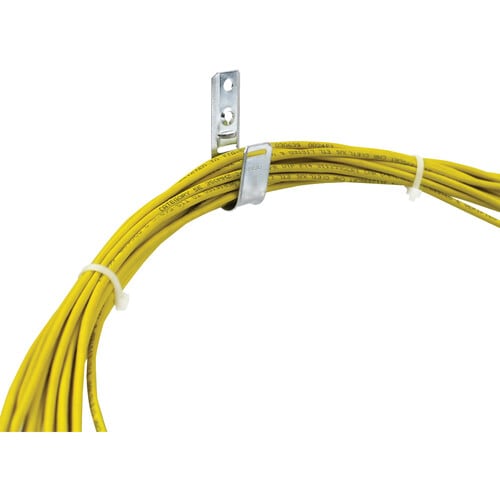

- Neatly bundle cable along a wall, ceiling or raised floor in your data center, network installation or digital signage setup
- Recommended for network and digital signage cabling along walls and ceilings
- Made from galvanized steel designed to hold long lengths of cabling up to 60 lb.
- Offers stress-free support for wide range of cables, including fiber, A/V and Cat5e/6
- Built in anchor points allow use of cable ties to hold cables in place
- Package includes 25 wall-mount J-hooks that comply with TIA/EIA requirements
Especificaciones técnicas
| Product Information | |
| Cable Manager Type | J-hook |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 1.06 oz (30 g) |
| Height | 3.1" (78.99 mm) |
| Width | 0.9" (21.84 mm) |
| Depth | 0.8" (19.05 mm) |
| Product Color | Silver |
| Color Family | Silver |
| Product Material | Galvanized Steel |
| General Information | |
| Product Type | Cable Tying |
| Manufacturer Part Number | NCMJHW0825 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 25 Pack |
| Manufacturer | Eaton Corporation |
| Product Model | NCM-JHW08-25 |
| Product Name | J-Hook Cable Support - 3/4", Wall Mount, Galvanized Steel, 25 Pack |
| Brand Name | Tripp Lite by Eaton |
