Acerca del producto

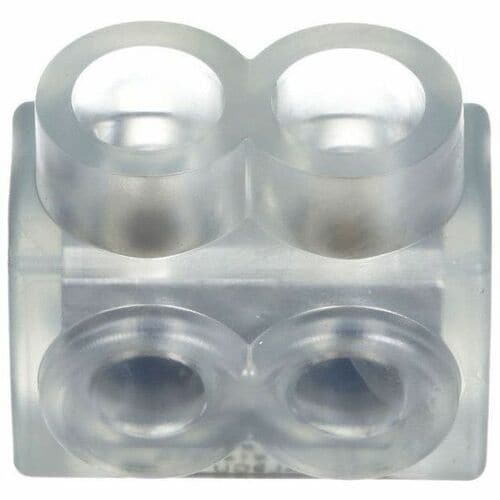

The PCSB2/0-2S-6 Multi-Tap Mechanical Connector has a flexible design that can be used as a tap, splice, or dead-end connector. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
- Tin contact plating
- Features terminal connector
Especificaciones técnicas
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Technical Information | |
| Connector Details | 2 x Multi-tap Terminal - Female |
| Connector Type | Multi-tap Terminal |
| Features | Flexible |
| Single Sided | |
| Contact Plating | Tin |
| Connector Gender | Female |
| General Information | |
| Product Type | Terminal Connector |
| Manufacturer Part Number | PCSB202S6 |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 6 |
| Manufacturer | PANDUIT CORP |
| Product Name | Pan-Lug PCSB2/0-2S-6 Multi-Tap Mech Con, Single Sided, 2/0, Tin Plt Al, PK6 |
| Product Line | Pan-Lug |
| Brand Name | Panduit |
| Packing | Pack |
| Physical Characteristics | |
| Material Details |
|
| Length | 1.52" (38.61 mm) |
| Height | 1.38" (35.05 mm) |
| Width | 1.31" (33.27 mm) |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Product Color | Clear |
| Color Family | Clear |
| Product Material | Aluminum Alloy |
| Aluminum | |
| Copper |
