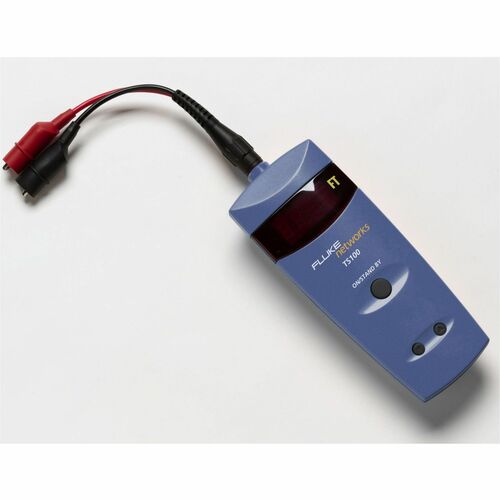

DETECTOR DE FALLAS DE CABLE MÉTRICO TS100

• If exposed to water it will suffer no damage

High Voltage Detection:

• AC voltage > 5 to 15 Volts RMS will trigger High Voltage Warning

Measurement Rate:

• Maximum of 4 complete measurements/second, decreasing to 2 seconds per measurement. Based on cable size and uniformity

Measurement technology:

• Time Domain Reflectometry (TDR) with 50 ohm drive impedance, 6 V maximum pulse height

Tone Injection:

• Approximately 1 kHz at an amplitude of 80% battery voltage. Variable frequency and cadence Tone changes when cable condition changes to "normal-open" from any other condition

Cable Type:

• Virtually all two or more conductor cables
