Acerca del producto

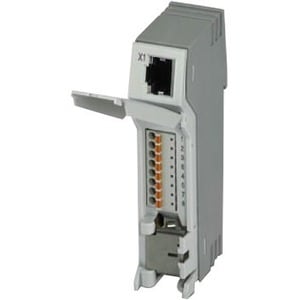

Ethernet patch panels make the connection between field cabling and control cabinet cabling quick and easy. A PP-RJ DIN Rail Patch Panel is ideal for installation inside control panels and distribution cabinets where one-to-one simplified connections need to be made. A standard Ethernet patch cable is used between the patch panel and the control cabinet equipment, such as switches, PLCs and routers. Through ICD, Push-in, Screw or RJ45 connectors, field wiring is easily connected to the patch panel and protected inside a covered wiring space. The cable shielding is connected quickly and easily, without tools, while simultaneously ensuring strain relief. This simplifies installation of the field cable and saves a great deal of time during installation. PP-RJ DIN Rail Patch Panels provide the perfect mix of density and flexibility to decrease network risk and improve cable organization in scalable deployments with constricted spaces.
Ideal applications for PP-RJ DIN Rail Patch Panels
- Inside equipment cabinets with DIN rails
- Alongside Industrial Ethernet switches and RJ45 (Ethernet or Serial) PLCs
- Alongside other DIN Rail RJ45 (Ethernet or Serial) control devices
- Where growth from one to many ports is needed to support high-density installations. Multiple one port DIN Rail Patch Panels can installed side-by-side to grow, as required by the customer application.
Especificaciones técnicas
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Miscellaneous | |
| Country of Origin | Germany |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 4.38 oz (124.20 g) |
| Form Factor | DIN Rail Mountable |
| Height | 3.99" (101.30 mm) |
| Width | 0.94" (23.80 mm) |
| Depth | 1.97" (50 mm) |
| Product Color | Gray |
| Product Material | Plastic |
| General Information | |
| Product Type | Network Patch Panel |
| Manufacturer Part Number | 27030188 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | PP-RJ-SCC |
| Product Name | PP-RJ-SCC Network Patch Panel (Push-in Terminal Block) |
| Product Series | PP-RJ |
| Brand Name | Perle |
