Cable Component

Expected delivery 3 to 7 business days (exceptions applied)

Tripp Lite

Panel de fibra precargado Tripp Lite by Eaton N48M-4L16L-10 - 4 x dúplex - 1U de alto - Aqua, blanco

Panel de fibra precargado Tripp Lite by Eaton N48M-4L16L-10 - 4 x dúplex - 1U de alto - Aqua, blanco

Precio habitual $2,516.52 CAD
Precio habitual $2,818.50 CAD Precio de oferta $2,516.52 CAD
-10% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Panel de fibra precargado Tripp Lite by Eaton N48M-4L16L-10 - 4 dúplex - 1U de alto - Aguamarina, blanco - 19" de ancho - Montaje en rack

VPN: N48M-4L16L-10 SKU: CB484372 CPU: 37332262097

  • 4 cables multimodo OM4 de 16 fibras LC Duplex vienen enrollados en el interior para un uso instantáneo
  • Utilice sólo el cable que necesite; guarde el resto en el interior para evitar el desorden.
  • La longitud flexible del cable permite la reutilización de los cables si se mueve el equipo

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Panel de fibra precargado Tripp Lite by Eaton N48M-4L16L-10 - 4 x dúplex - 1U de alto - Aqua, blanco

Resumen de información del producto

Panel de fibra precargado Tripp Lite by Eaton N48M-4L16L-10 - 4 x dúplex - 1U de alto - Aqua, blanco

Acerca del producto

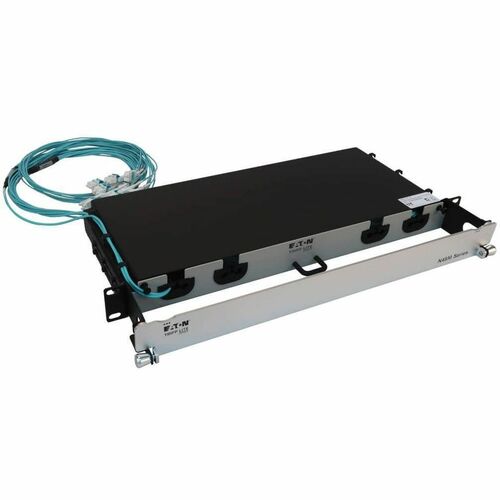

1U panel comes preloaded with spools of multimode fiber cable that allow you to extend the exact length required and store the excess out of sight.

Description
Preloaded Fiber Panel, 1U - 4x (8x LC/LC Duplex M/M) 16F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

Features

1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time

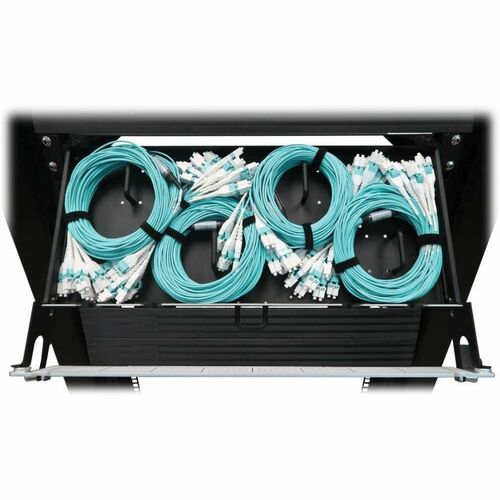

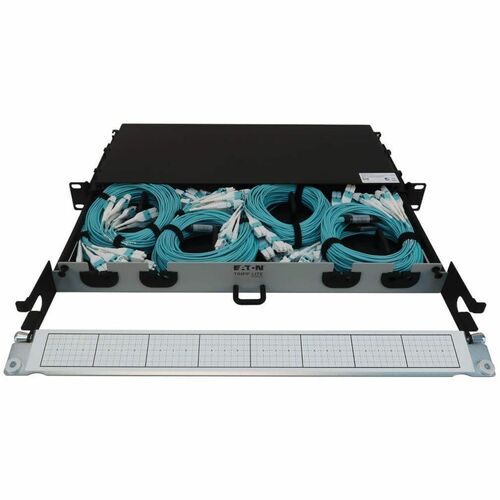

All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 1U chassis features four 16-fiber LC Duplex multimode trunk cables, all 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48M4L16L-10 mounts in just 1U of space in an EIA-standard 19-inch rack.

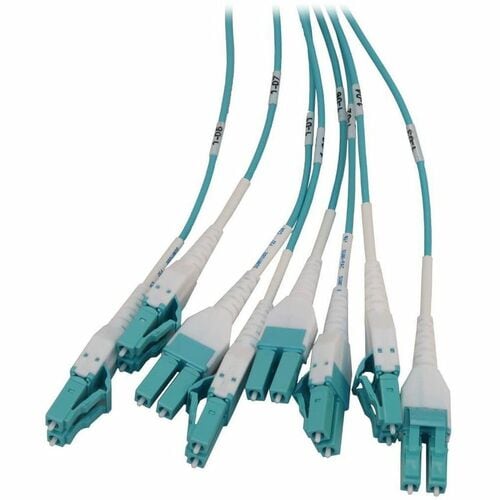

  • 4 LC Duplex 16-fiber OM4 multimode cables come coiled inside for instant use
  • Use only as much cable as you need; store the remainder inside to avoid clutter
  • Flexible cable length allows reuse of cables if equipment is moved
  • Aluminum chassis mounts into 1U of space in EIA-standard 19 in. racks

Especificaciones técnicas

Interfaces/Ports
Number of LC Ports4
LC Port TypeDuplex
Miscellaneous
Additional Information

OVERVIEW

  • Technology Multimode
  • Optical Mode OM4
  • Panel Cable Number 4
  • Panel Cable Length (m) 10
  • Mode Type Multimode

Firmware / Software Docs

  • Offset Ports No

PHYSICAL

  • Cable Jacket Rating OFNP
  • Cable Outer Diameter (OD) 2.9MM
  • Clad Diameter (micron) 125
  • Core Diameter (micron) 50
  • Primary Coating Diameter (micron) 245
  • Number of Fibers 16
  • Cable Length (ft.) 32.8
  • Cable Length (m) 10.00
  • Cable Length (in.) 393.7
  • Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC)

COMMUNICATIONS

  • Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
  • Wavelength 1300nm; 850nm
  • Attenuation @ 850NM 3.0dB/KM
  • Attenuation @ 1300NM 1.0dB/KM
  • Insertion Loss 0.20dB

Package Contents
  • N48M-4L16L-10 Preloaded Fiber Panel
  • 4 x LC Duplex to LC Duplex Trunk Cables, 10 m (32.8 ft.)
  • Installation Guide
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
General Information
Product TypeNetwork Patch Panel
Manufacturer Part NumberN48M4L16L10
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
ManufacturerEaton Corporation
Product ModelN48M-4L16L-10
Product NameN48M-4L16L-10 Preloaded Fiber Panel
Brand NameTripp Lite by Eaton
Physical Characteristics
Form FactorRack-mountable
Height1.73" (43.94 mm)
Width17.32" (439.93 mm)
Depth10.20" (259.08 mm)
Compatible Rack Unit1U
Compatible Rack Width19"
Product ColorWhite
Aqua
Color FamilyDual Color
Product MaterialAluminum
