Acerca del producto

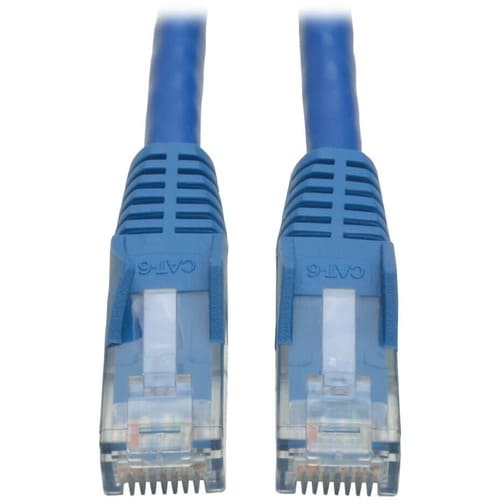

With Tripp Lite's new category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
- Meets Category 6 cabling standards
- Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (Category 6, draft 11)
- Drastically reduce impedance and structural return loss compared to standard 100Mhz wire
- Snagless boots protect the locking tabs on the RJ45 connectors from being damaged during installation
- Feature molded connectors with integral strain relief. Rated for 550 MHz/1 Gbps communication
Especificaciones técnicas
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N201010BL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N201-010-BL |
| Product Name | Cat6 UTP Patch Network Cable |
| Brand Name | Tripp Lite series |
| Physical Characteristics | |
| Material Details | Copper - Conductor |
| Shipping Weight (Approximate) | 4.96 oz (140.61 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Blue |
| Color Family | Blue |
| Product Material | Copper |
| Jacket Color | Blue |
| Technical Information | |
| Cable Length | 10 ft (3.05 m) |
| Conductor | Copper |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | ATM |
| Network Device | |
| Jacket Type | CM |
| Shielding | No |
| Features | Stranded |
| Strain Relief | |
| Molded | |
| Damage Resistant | |
| Minimized Near-End Crosstalk (NEXT) | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 24 AWG |
| Contact Plating | Gold |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
| Number of Pairs | 4 |
