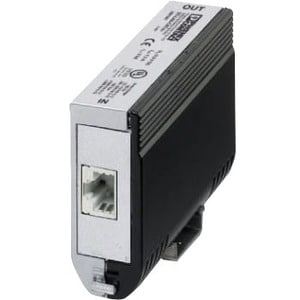

The DT-LAN-CAT6 is a protective adapter to be inserted into the data line for the protection of LAN interfaces and the RJ45 cable.
Surge protection for information technology
Reliable data is indispensable in today's industry. The sensitive systems used in LANs work with high frequencies at low signal levels and are networked over a wide area. Surge voltages can quickly lead to largescale failures and, in the worst-case scenario, data loss. Data Line Surge protectors are specifically designed to protect your investment in expensive wired, wireless and PoE equipment.
High-speed data protection
If you need effective Lightning, RFI, ESD and transient surge protection for highspeed data transmission, the DT-LAN-CAT.6+ offers universal protection without affecting the signal at network speeds of up to 10 Gbps.
Suitable for the following environments
- 100/1000/10G-Base-T
- Power over Ethernet (PoE+) "Mode A" and "Mode B"
- TOKEN Ring
- FDDI/CDDI
- ISDN
- DS1
- VG-AnyLAN
- PROFINET
Surge protection in accordance with Class EA (CAT6A). RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
- Protection for data interfaces
- Reliable transmission speeds up to 10 Gbps
- Protective adapter for eight signal paths via RJ45 connector (including PoE+)
- Suitable for category 6 high-speed data networks
- Can be installed in a control cabinet by removing the ground connection adapter
Especificaciones técnicas
| Technical Information | |
| Dataline Protection | Network |
| Physical Characteristics | |
| Weight (Approximate) | 320 g |
| Height | 4.02" (102 mm) |
| Width | 0.98" (25 mm) |
| Depth | 2.50" (63.50 mm) |
| Miscellaneous | |
| Country of Origin | Germany |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| China Restriction of Hazardous Substances (China RoHS) | |
| General Information | |
| Product Type | Surge Suppressor/Protector |
| Manufacturer Part Number | 28810078 |
| Manufacturer Website Address | http://www.perle.com |
| Packaged Quantity | 1 Pack |
| Manufacturer | Perle Systems, Inc |
| Product Model | DT-LAN-CAT.6 |
| Product Name | DT-LAN-CAT6 Surge Protector CAT5/6/7 Data Line Lightening Surge Protector |
| Brand Name | Perle |
