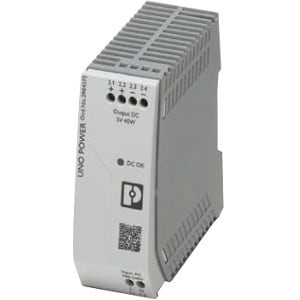

The UNO-PS/1AC/5DC/40W Single-Phase Industrial Power Supply is a rugged AC to DC Converter built to meet the high stability and efficiency expectations of industrial, machine automation and process control environments. This Switching (switch mode) Power Supply ensures a regulated output voltage even in the event of voltage fluctuations in the power supply network. With all required safety certifications to support ITE (Information Technology Equipment), ruggedized packaging, extended operating temperatures, high peak load capabilities and high isolation voltages, the UNO Industrial Power Supply is designed to meet the needs of your industrial application.
Industrial operating temperature of -25°C to +70°C:
Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial power supplies. With an operating temperature of -25°C to +70°C, the UNO-PS/1AC/5DC/40W Single-Phase Industrial Power Supply is ideal for use with equipment subjected to harsh environments and severe temperatures.
High efficiency up to 85% and no load power consumption <0.3W:
Compared with other products on the market, the UNO Industrial Power Supply provides excellent energy savings. With a very low no load power consumption (below .3 W) and 85% efficiency at nominal load, just a small amount of electrical energy is converted into undesired heat energy making this a very ECO friendly power supply.
Ideal application environments for an UNO-PS/1AC/5DC/40W Single-Phase DIN Rail Power Supply DIN Rail Power Supply:
- automated production process
- industrial control, automation, assembly, and test equipment
- building control, security and surveillance, and climate control systems.
- power countless industrial automation devices such as sensors, controllers and valves
Other reasons to choose the UNO-PS/1AC/5DC/40W Single-Phase Industrial Power Supply:
- 35 mm wide DIN Rail mount narrow housing
- Voltage Isolation input/output: 4 kV AC
- LED indicator for voltage out failure: If the output voltage is below the operational range, the LED turns off.
- Protections: Short-circuit, Overload, Over voltage, Over-temperature
- High MTBF (Mean Time Between Failure) values ensure maximum availability
- IEC Protection Class II Power Supply
Especificaciones técnicas
| Technical Information | |
| Efficiency | 85% |
| Miscellaneous | |
| Country of Origin | Poland |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 210 g |
| Form Factor | DIN Rail |
| Height | 3.54" (90 mm) |
| Width | 1.38" (35 mm) |
| Depth | 3.31" (84 mm) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Power | 40 W |
| Output Voltage | 5 V DC |
| Output Current | 8 A |
| Output Voltage Detail | 5 V DC @ 8 A |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | 29043758 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | UNO-PS/1AC/5DC/40W |
| Product Name | UNO-PS/1AC/5DC/40W Single-Phase DIN Rail Power Supply |
| Product Line | UNO POWER |
| Brand Name | Perle |
