Acerca del producto

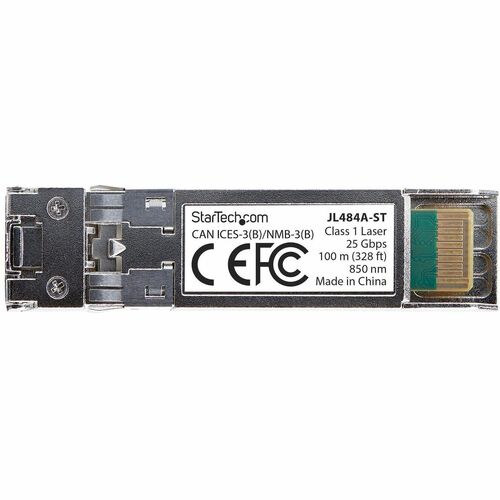

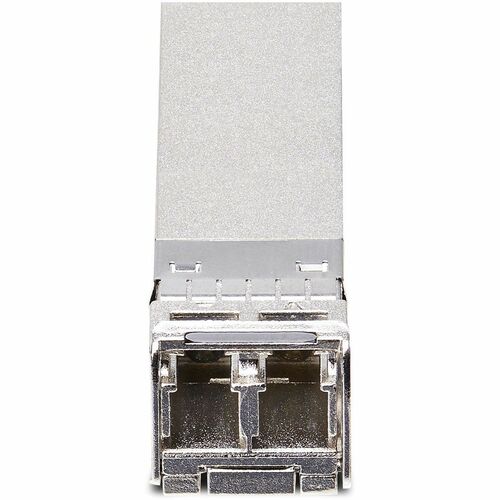

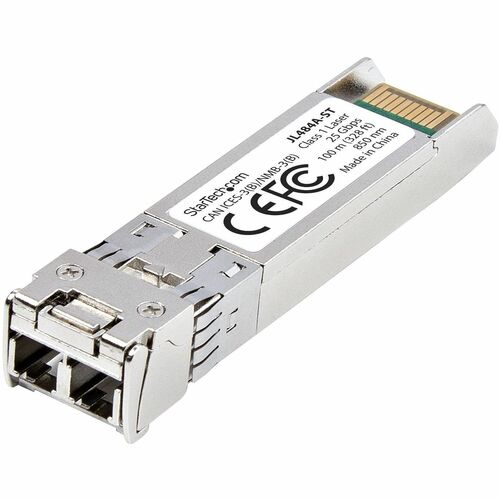

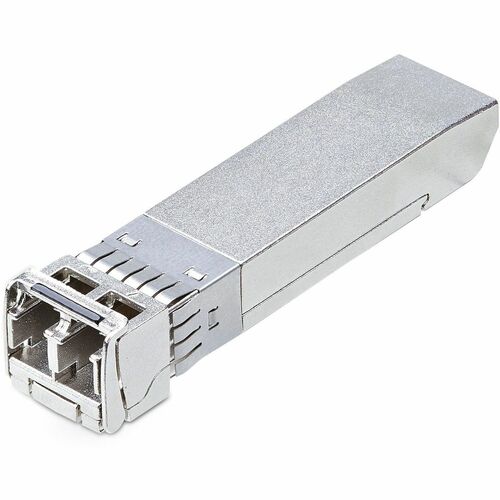

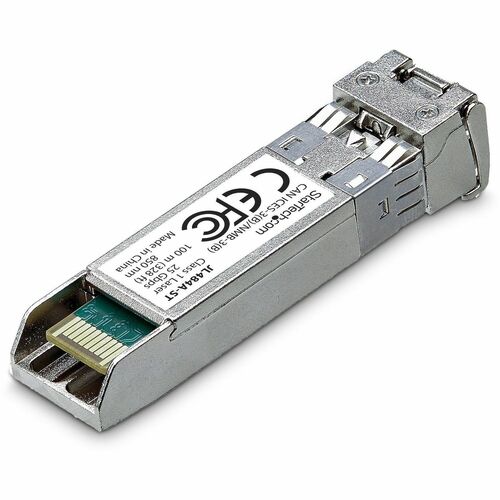

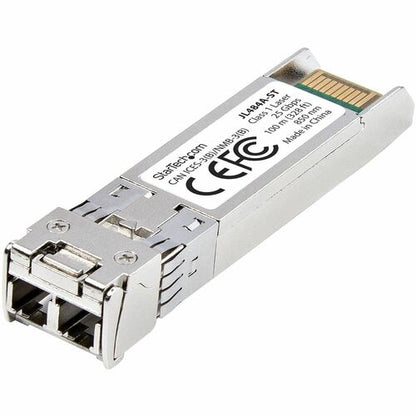

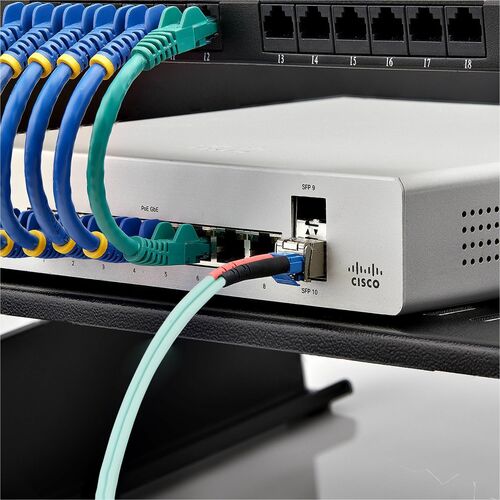

This fiber optic transceiver is the direct equivalent to HPE® JL484A for 25Gbps connectivity up to 100m (328ft) over LC-terminated Multimode Fiber (MMF) cable. The optical module has been programmed and tested for seamless integration with HPE® switches and routers to ensure compatibility and reliability.
Maximize Bandwidth
The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.
Technical Specifications
- 25GBASE-SR SFP28
- Data Rate: 25Gbps
- Fiber Type: Multimode Fiber (MMF)
- Connector: LC
- Wavelength: 850nm Tx/Rx
- Distances: Up to 100m (328ft)
- Supports Digital Diagnostics Monitoring (DDM/DOM)
Compatibility
This MSA-compliant SFP works with network equipment manufactured by HPE® and network equipment from manufacturers that accept uncoded optical modules.
Optimized Network Reach
The Short Range (SR) capability facilitates low-latency and scalable onsite connections within a data center or subnetworks within a building.
- HPE COMPATIBLE TRANSCEIVER: Equivalent to the HPE® JL484A MMF module; Programmed and tested to ensure seamless integration with HPE® switches and routers to deliver reliable 25G connectivity up to 100m (328ft)
- MAXIMIZE BANDWIDTH: 25Gb multi-mode fiber SFP28 excels at bandwidth-intensive tasks such as data migrations, large-scale transfers, high-performance storage, seamless content streaming, and rapid online content uploads
- TECHNICAL SPECS: 25GBASE-SR SFP28 | 25Gbps | Multimode Fiber (MMF) | LC Connector | 850nm Tx/Rx | Distances up to 100m (328ft) | Supports Digital Diagnostics Monitoring (DDM/DOM)
- COMPATIBLE WITH MSA COMPLIANT SWITCHES: Fiber optic transceiver is compatible with switch models from Ubiquiti®; D-Link®; Netgear®; Supermicro®; TP-Link®; and other brands that support uncoded modules
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 25 Gigabit optical transceiver is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Especificaciones técnicas
| Technical Information | |
| Application/Usage | Data Networking |
| Optical Network | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 2 x Full Duplex LC 25GBase-SR Network |
| Connector Type | LC |
| Total Number of Ports | 2 |
| Physical Characteristics | |
| Weight (Approximate) | 7.10 oz (201.28 g) |
| Height | 0.30" (7.62 mm) |
| Width | 0.50" (12.70 mm) |
| Miscellaneous | |
| Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Media & Performance | |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Network Technology | 25GBase-SR |
| Maximum Data Transfer Rate | 25.78 Gbit/s |
| Ethernet Technology | 25 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| General Information | |
| Product Type | SFP28 |
| Manufacturer Part Number | JL484AST |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | HPE SFP28 Module |
| Brand Name | StarTech.com |
