Acerca del producto

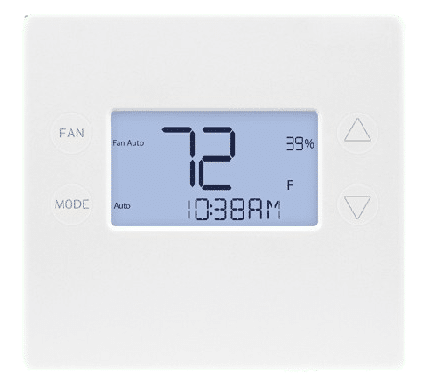

The 2GIG Smart Z-Wave Plus Thermostat (2GIG-STZ-1) offers your consumers the highest level of comfort, control, and convenience thanks to its abundance of functions and cutting-edge technology. A programmable thermostat gives homeowners the ability to control and reduce their energy, heating, and cooling expenses from anywhere at any time. This is a strong sales tool that can help you increase the number of customers you serve.
2GIG SMART Z-WAVE PLUS THERMOSTAT SPECIFICATIONS FEATURES:
- 700-series Z-Wave Plus support – Longer range wireless capability
- Humidity sensing and control
- SmartStart Support
- S2 authentication security
- Can be powered by an HVAC system’s 24VAC “C” wire
2GIG SMART Z-WAVE PLUS THERMOSTAT SPECIFICATIONS:
- Thermostat Features
- Display Fixed Format Display with white backlight
- Display Options Heating and Cooling Setpoint, or Clock, humidity display option
- System Mode Off, Heat, Cool, Auto, E-Heat
- Fan Mode Display and Control Auto and On
- On-Screen Setup of HVAC Type, Fan Type, Changeover type for HP systems, humidification support, F/C mode and sensor calibration
- Thermostat Specifications
- Power Battery or 24V AC powered: Compatible with the vast majority of Central HVAC systems
- Z-Wave Frequency 908.42 MHz, 916 MHz
- System Compatibility Central HVAC systems or separate heating/ cooling systems with separate RH/RC transformers (split)
- Standard Gas/Electric HVAC 3 stage heating, 2 stage cooling
- Heat Pump HVAC 3 stage heating, 2 stage cooling
- Fan System Selectable for gas or electric heat systems
- Heat Pump Change Over Valve Selectable for change over with heat or (Reversing Valve) change with cool (O or B output)
- Emergency Heat In Heat Pump mode, Emergency Heat mode is selectable from the thermostat
- HVAC System Protection Compressor short cycle protection delay of 5 minutes (adjustable)
- Temperature Setpoint Range Heat Set Point: 32 – 90 °F (0 – 32 °C) Cool Set Point: 61 – 122 °F (16 – 50 °C) Setting resolution: 1°F (0.5°C)
- Relative Humidity 5-95% Non-Condensing
- Wiring Requirements
- Standard HVAC Connections C, RC, RH, W1, W2/O, Y1, Y2, G, W3, HUM+, HUM-, 18 AWG
- Enclosure
- Material and Certification ABS Plastic
- Color White
- Dimensions 5.75 x 4.5 x 1 in (14.6 x 11.4 x 2.5 cm)
- Weight 1 lb (0.45 kg)
- Compliance
- United States FCC
- Canada Industry Canada
- Z-Wave Plus V2
Especificaciones técnicas
The 2GIG Smart Z-Wave Plus Thermostat (2GIG-STZ-1) offers your consumers the highest level of comfort, control, and convenience thanks to its abundance of functions and cutting-edge technology. A programmable thermostat gives homeowners the ability to control and reduce their energy, heating, and cooling expenses from anywhere at any time. This is a strong sales tool that can help you increase the number of customers you serve.
2GIG SMART Z-WAVE PLUS THERMOSTAT SPECIFICATIONS FEATURES:
- 700-series Z-Wave Plus support – Longer range wireless capability
- Humidity sensing and control
- SmartStart Support
- S2 authentication security
- Can be powered by an HVAC system’s 24VAC “C” wire
2GIG SMART Z-WAVE PLUS THERMOSTAT SPECIFICATIONS:
- Thermostat Features
- Display Fixed Format Display with white backlight
- Display Options Heating and Cooling Setpoint, or Clock, humidity display option
- System Mode Off, Heat, Cool, Auto, E-Heat
- Fan Mode Display and Control Auto and On
- On-Screen Setup of HVAC Type, Fan Type, Changeover type for HP systems, humidification support, F/C mode and sensor calibration
- Thermostat Specifications
- Power Battery or 24V AC powered: Compatible with the vast majority of Central HVAC systems
- Z-Wave Frequency 908.42 MHz, 916 MHz
- System Compatibility Central HVAC systems or separate heating/ cooling systems with separate RH/RC transformers (split)
- Standard Gas/Electric HVAC 3 stage heating, 2 stage cooling
- Heat Pump HVAC 3 stage heating, 2 stage cooling
- Fan System Selectable for gas or electric heat systems
- Heat Pump Change Over Valve Selectable for change over with heat or (Reversing Valve) change with cool (O or B output)
- Emergency Heat In Heat Pump mode, Emergency Heat mode is selectable from the thermostat
- HVAC System Protection Compressor short cycle protection delay of 5 minutes (adjustable)
- Temperature Setpoint Range Heat Set Point: 32 – 90 °F (0 – 32 °C) Cool Set Point: 61 – 122 °F (16 – 50 °C) Setting resolution: 1°F (0.5°C)
- Relative Humidity 5-95% Non-Condensing
- Wiring Requirements
- Standard HVAC Connections C, RC, RH, W1, W2/O, Y1, Y2, G, W3, HUM+, HUM-, 18 AWG
- Enclosure
- Material and Certification ABS Plastic
- Color White
- Dimensions 5.75 x 4.5 x 1 in (14.6 x 11.4 x 2.5 cm)
- Weight 1 lb (0.45 kg)
- Compliance
- United States FCC
- Canada Industry Canada
- Z-Wave Plus V2
